Image Optimization 5-1
5 Image Optimization
WARNING:
1. The images displayed in this system are only reference
for diagnosis. Mindray is not responsible for the
correctness of diagnostic results. It is the responsibility
of the clinician, who performs the exam, to capture the
correct diagnostic results.
2. In Dual-B imaging mode, the measurement results of the
merged image may be inaccurate. Therefore, the results
are provided for reference only, not for confirming a
diagnosis.

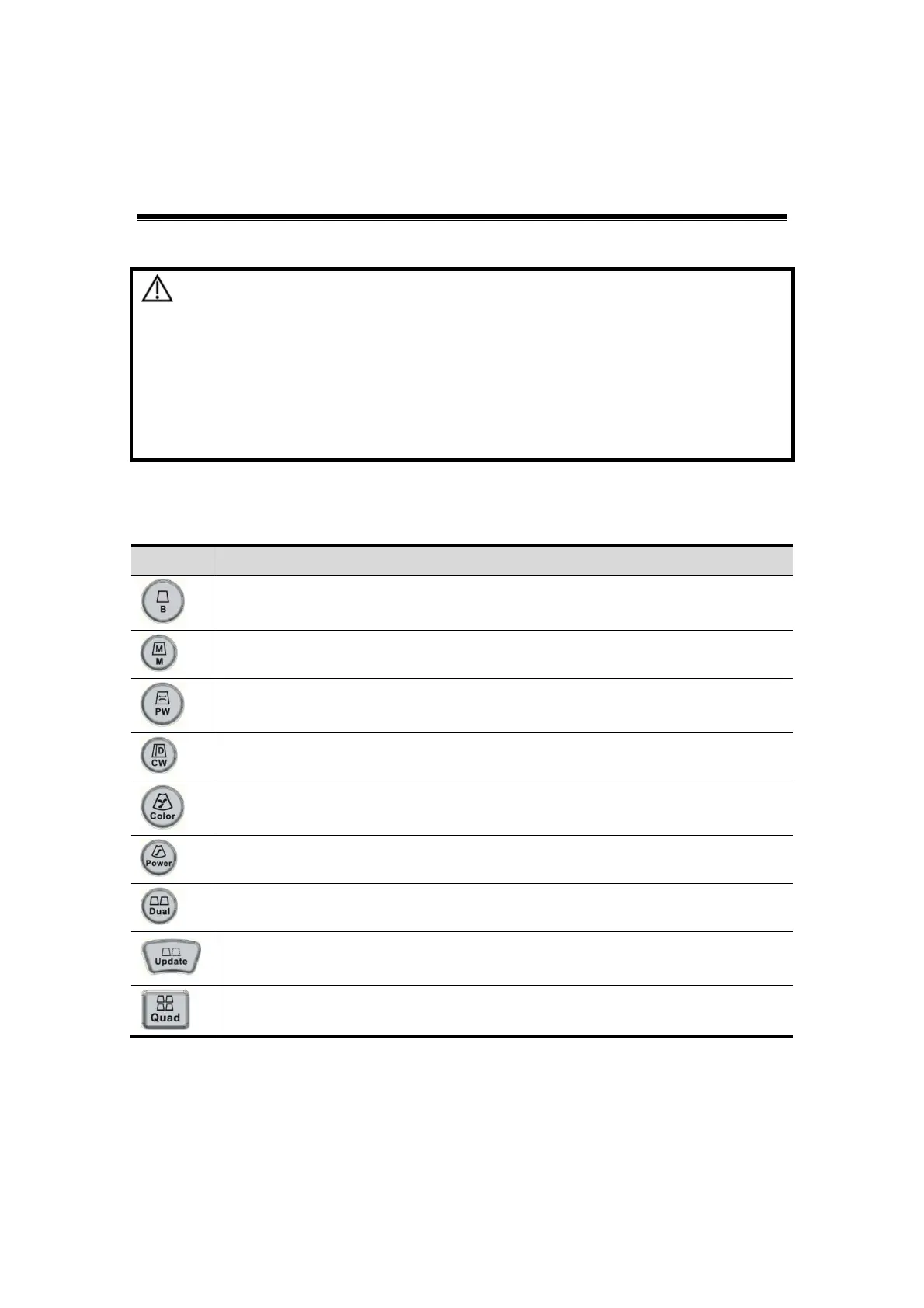

5.1 Switching Between Imaging Modes
Key Description
B Mode key: press to enter B Mode.
M Mode key: press to enter M Mode.
PW Mode key: press to enter PW Mode.
In 3D/4D mode, press to enter 3D image in single window.
CW Mode key: press to enter CW Mode.
Color Mode key: press to enter Color Mode.
Power mode key: press to enter Power Mode.
Dual-split display key: press to enter the Dual-split display mode, and to
switch between the windows.
Press to change the currently active window.
Press to start or end image capture in 3D/4D or iScape.
Press to enter the quad-split screen display, or switches image window in the
Quad mode.

Mindray M7 Specifications

General

Type	Portable Ultrasound System
Display	15-inch LCD
Imaging Modes	2D, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Cardiac, Vascular, OB/GYN, Small Parts, Musculoskeletal, Urology, Pediatric
Battery	Rechargeable Lithium-ion
Connectivity	USB, Ethernet, DICOM
Dimensions	35 cm x 36 cm x 9 cm
Transducer Ports	2 active transducer ports
