Mindray M7 User Manual

System Preparation 3-7
3.7 Graph /Text printer
 Connecting a local printer

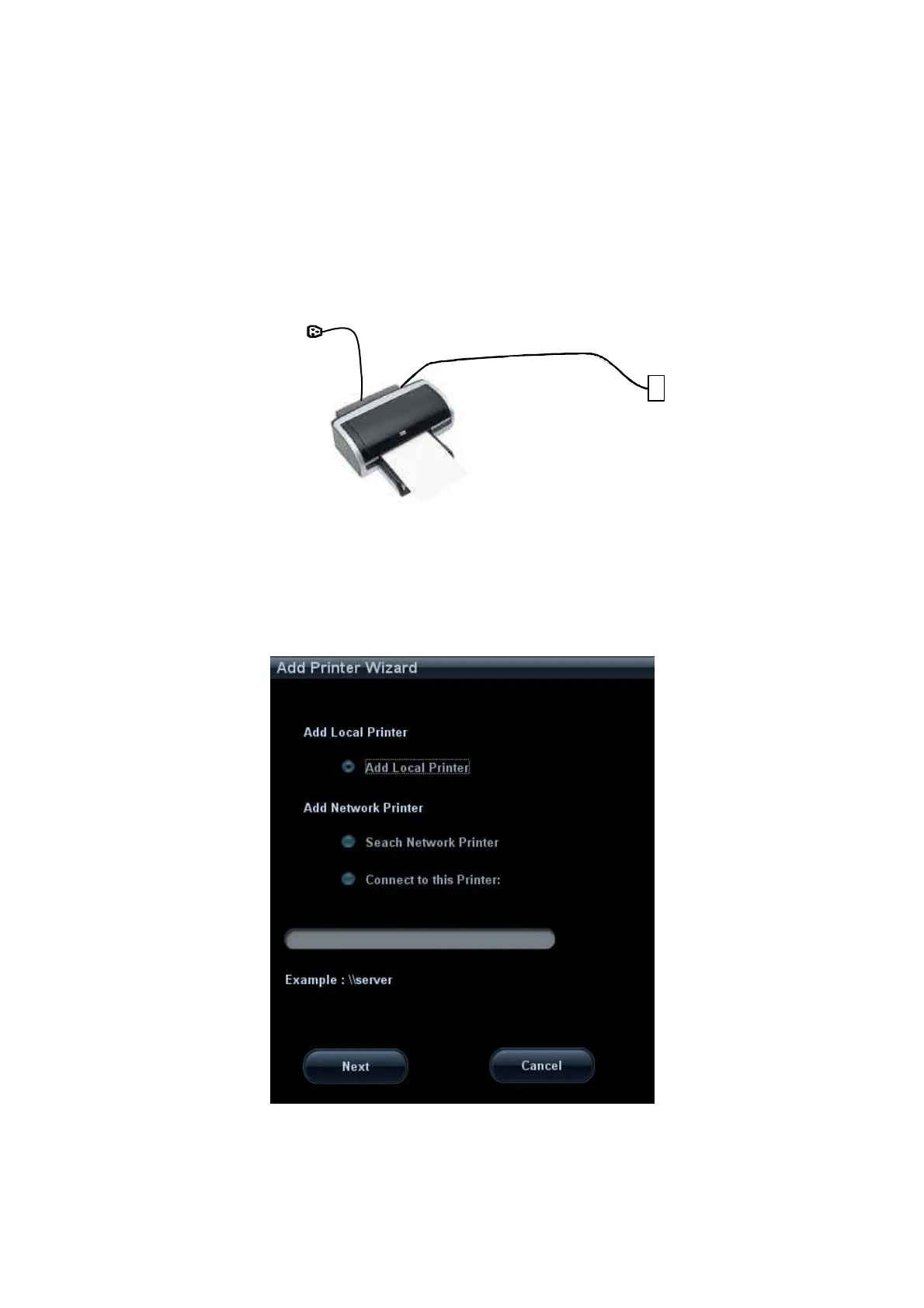

As shown in the figure below, a graph /text printer has a power cord and data cable. The
power cord shall be directly connected to a protective grounding wall receptacle as
required.
1. Connect the two USB ports of the printer and the system with the USB cable of the
printer.
2. Power on the system and the printer.
3. Install the printer driver: "[Setup]→ [Peripheral Preset]→[Printer]→[Printer Driver]"
and click [Add Printer], as shown in the figure:
4. Select "Add Local Printer" and click [Next] to enter the screen of browsing driver;
select the desired driver and click [OK] to install the driver.
 Printers listed in "2.5 System Configuration" have drivers installed already.
Data cable
USB connector
Power cord

Mindray M7 Specifications

General

Type	Portable Ultrasound System
Display	15-inch LCD
Imaging Modes	2D, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Cardiac, Vascular, OB/GYN, Small Parts, Musculoskeletal, Urology, Pediatric
Battery	Rechargeable Lithium-ion
Connectivity	USB, Ethernet, DICOM
Dimensions	35 cm x 36 cm x 9 cm
Transducer Ports	2 active transducer ports
