12-22 DICOM

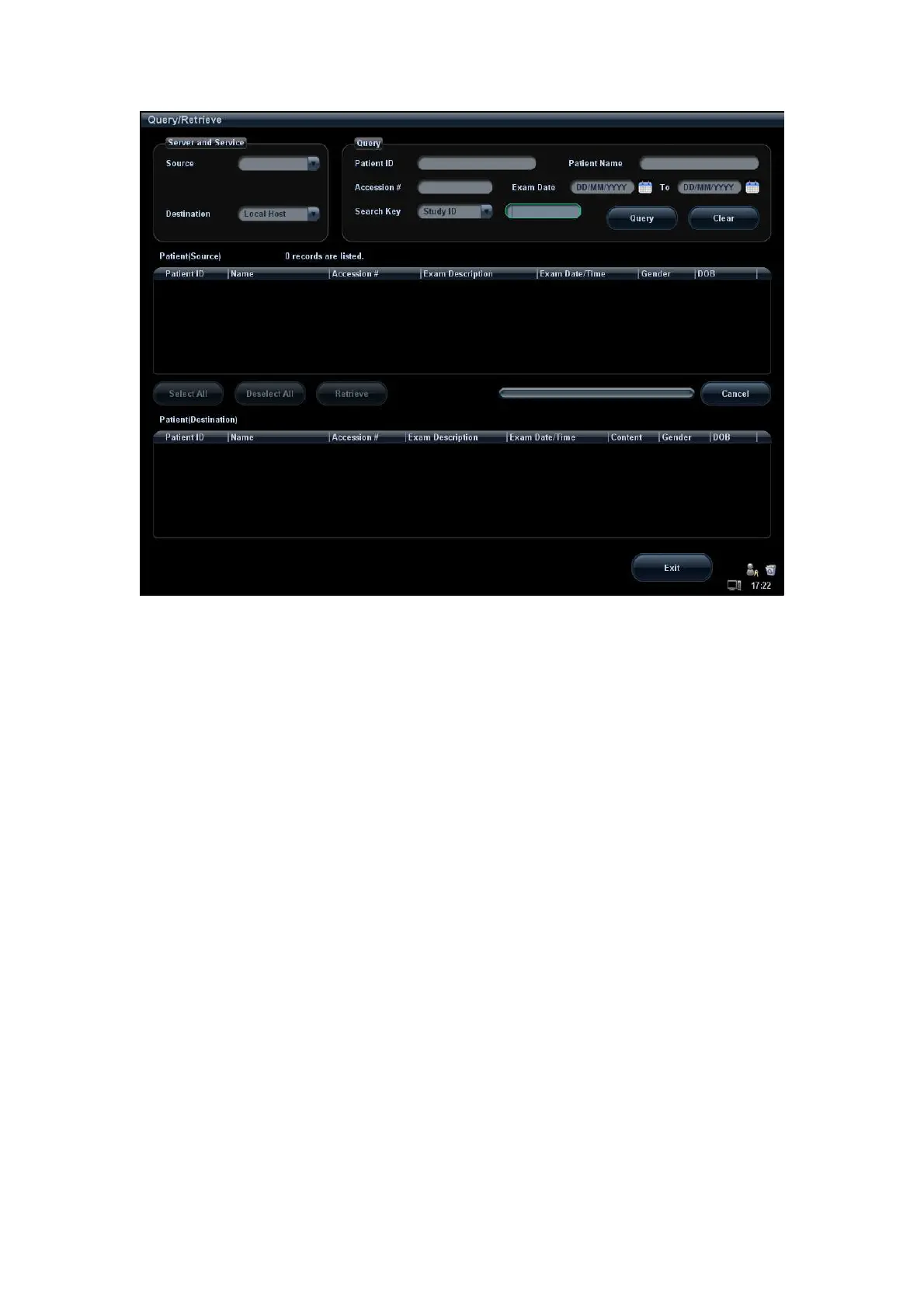

3. Select the server in “Server and Service” area for the source and the destination.
4. Enter the query information, such as patient name, patient ID, accession number,
exam time, and select keyword for searching.
Click [Clear] to empty the entered query information.
5. Click [Query], the system performs the query to the server and lists out the result into
the patient (source) list.
You can perform a second query based on the preview results.
6. Select one or more patient records according to the actual situation.
Click [Select All] to select all the patient records listed.
Click [Deselect All] to deselect all the patient records listed.
7. Click [Retrieve] to retrieve the patient records in the DICOM query/ retrieve server into
the system.
8. Click [Exit], you can see the retrieved patient records listed in the iStation screen.
12.4 DICOM Media Storage
The system supports to save patient data to the external media in DCM format. Meanwhile,
in the system, you can view the saved DCM files from external media.
 Media storage:
1. Select patient record(s) in the iStation screen.
2. Click [Backup] to enter the following dialogue box:

Mindray M7 Specifications

General

Type	Portable Ultrasound System
Display	15-inch LCD
Imaging Modes	2D, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Cardiac, Vascular, OB/GYN, Small Parts, Musculoskeletal, Urology, Pediatric
Battery	Rechargeable Lithium-ion
Connectivity	USB, Ethernet, DICOM
Dimensions	35 cm x 36 cm x 9 cm
Transducer Ports	2 active transducer ports
