Mindray M7 User Manual

Probes and Biopsy 13-21

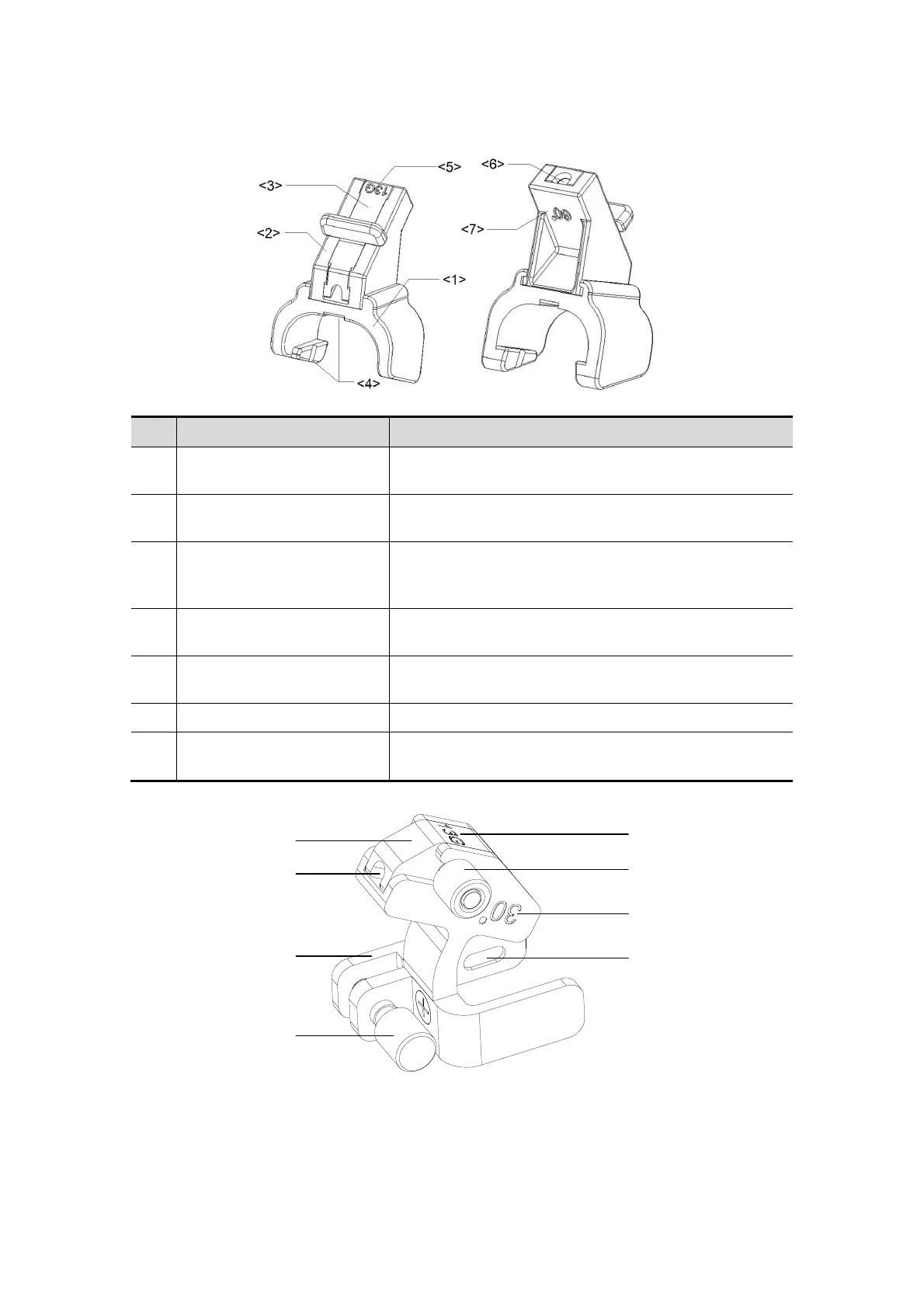

 Plastic needle-guided bracket:
No. Name Description
<1>
Support of needle-guided
bracket
Used for installing the needle-guided bracket on the
probe.
<2> Angle block
Used for determining the angle of the biopsy; there
are three specifications of blocks of angle.
<3> Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different biopsy
needles.
<4>
Groove and tab of the
needle-guided bracket
Respectively matched with the tab and groove of the
probe.
<5>
Specification of guiding
block (13G)
Matched with the corresponding biopsy needle (13G).
<6> Needle guide hole Used for installing the biopsy needle.
<7>
Specification of angle block
(60°)
Corresponding to the size of the biopsy angle (60°) .
 NGB-010
5
1
2
3
4
6
7
8

Mindray M7 Specifications

General

Type	Portable Ultrasound System
Display	15-inch LCD
Imaging Modes	2D, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Cardiac, Vascular, OB/GYN, Small Parts, Musculoskeletal, Urology, Pediatric
Battery	Rechargeable Lithium-ion
Connectivity	USB, Ethernet, DICOM
Dimensions	35 cm x 36 cm x 9 cm
Transducer Ports	2 active transducer ports
