Mindray M7 User Manual

13-24 Probes and Biopsy

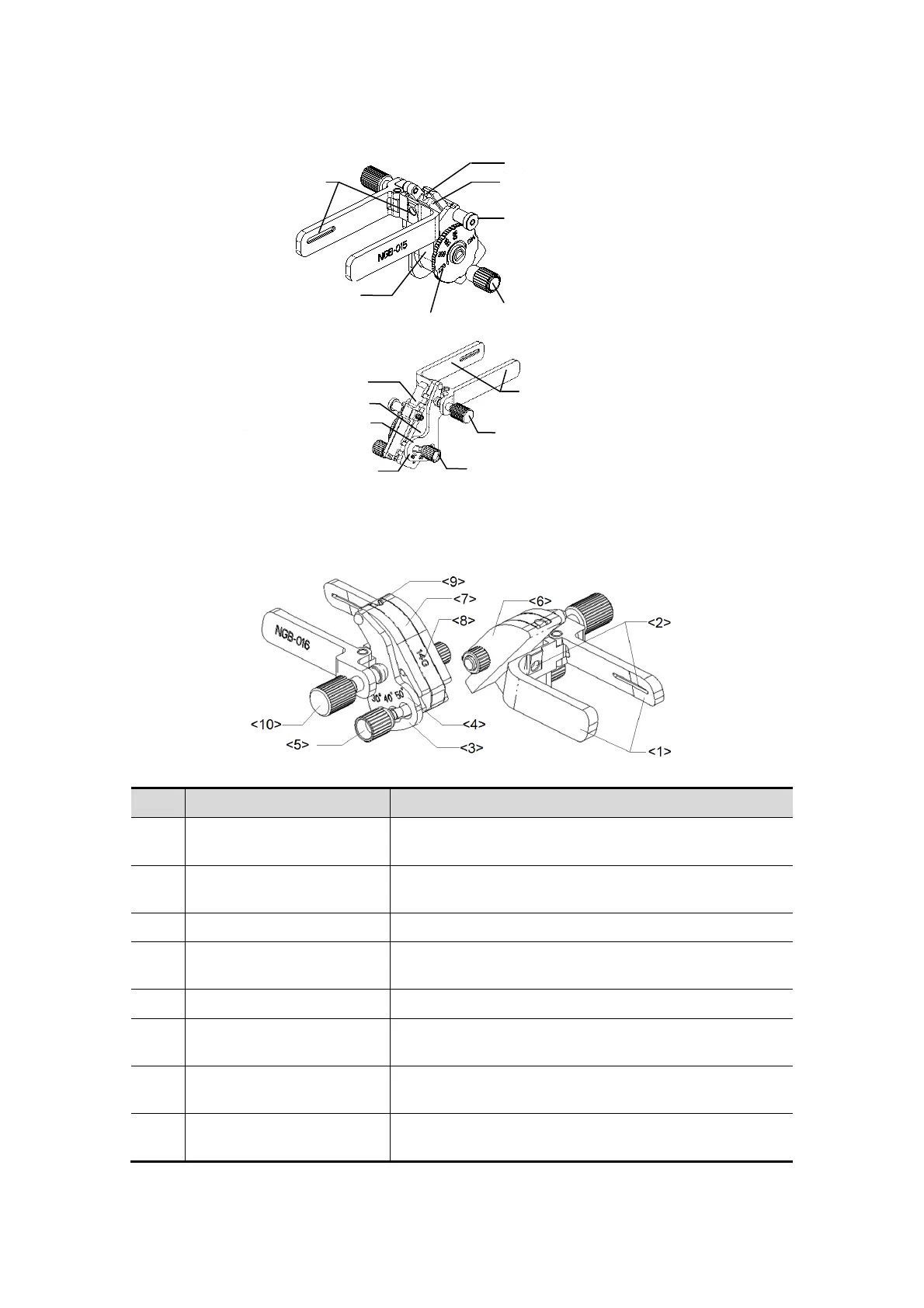

 NGB-015
 NGB-016
No. Name Description
<1>
Clamp of needle-guided
bracket
Used for installing the needle-guided bracket on the
probe.
<2>
Groove of the
needle-guided bracket
Matches with the tab of the probe.
<3> Angle adjusting base There are 3 types of angles available to be adjusted.
<4>
Angle shift sign (30°, 40°,
50°)
Matches with the biopsy angle. (30°, 40°, 50°).
<5> Angle pinch nut Used for fixing the angle lock at a chosen angle.
<6> Angle block
Determines the angle of the biopsy; different
specifications of blocks can be used.
<7> Guiding block
Used for installing the needles of different
specifications, 5 types of needles are available.
<8>
Specification of guiding
block (14G)
Matched with the corresponding biopsy needle (14G).
Lock pin
Needle fixing nut
Needle type dial scale
Needle type
adjusting base
Groove
Clamp
Pinch nut
Angle pinch nut
Angle shift sign
Angle adjusting
base
Angle block
V-shaped cover
V-shaped guiding block
Guiding
hole
