System Diagnosis and Support 10-19

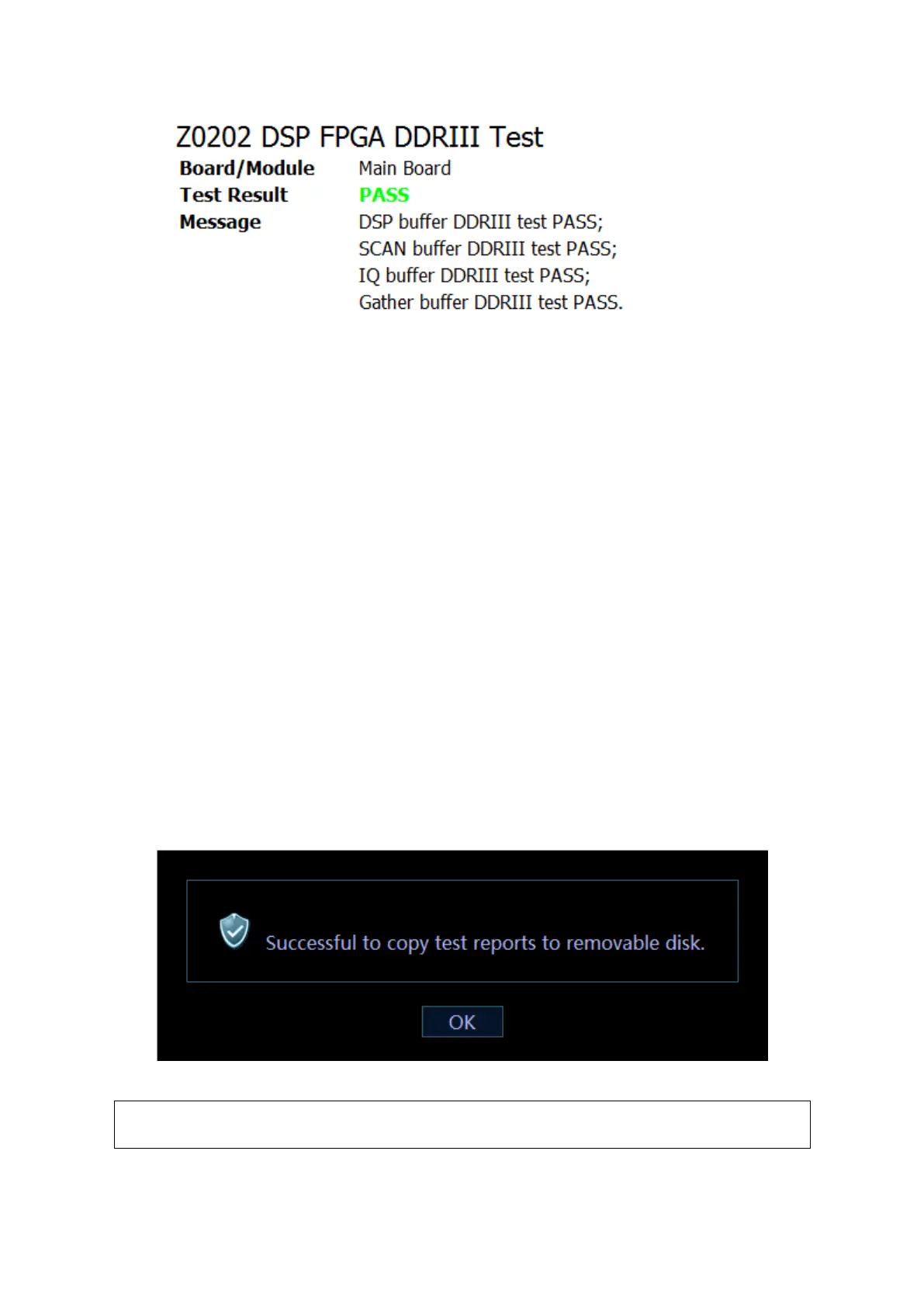

In which, [Z0202] refers to the index of test item;
[Board/Module] refers to the board and the module that test item lies in;
[Test Result] refers to the result of test item;
[Information] refers to the information of test item.
10.4.4.2 Test Data Storage
Take the time as the report name, and compress it into Zip file.
The test report is saved under the directory of D:\M9\Log\SelftestReport. 20 copies of test reports
at most.
Non-loop test
The test result will be compressed into Zip file and saved under the directory of
D:\M9\Log\SelftestReport to non-loop test. One Zip file owns one report.
Loop test
Click [Save Report] after finishing the test. The loop test is compressed into a Zip file package
and saved under the directory of D:\M9\Log\SelftestReport. There are N reports in Zip file
package where the reports are put into the folder of Test Report Loop_N. The test results are
PASS and FAIL. N is the loop times of the test.
10.4.4.3 Test Data Export
1. Plug USB flash disk or removable storage medium to the port of the device.
2. The user chooses the logic drive of removable storage medium. Click [Save Report] on test
interface to export the test data to root directory of the drive, and name it as Test Report. The
dialog box appears after the test report is saved successfully.
3. See Appendix C for details of test items.
Note:
It is not operational for users if there is no removable storage medium to the
computer.
