2-2 Product Specifications
1 Monitor Displays the images and parameters during the scan.
2 Control Panel Operator-system interface or control
3 Handle Used for carrying the system
4
Power input port
Connects the power adapter
5
HDMI port Outputs
high definition multimedia signals
6 USB port Connects USB devices (2 ports)
7 ECG port Connects ECG lead or DC-IN cable
8
Probe port
Connects a probe to the main unit; or connects a probe
extend module
9 Probe locking lever
Locks or unlocks the probe connected with the main unit
：locked symbol
：unlocked symbol
10 Pencil probe port Connects to a pencil probe.
2.1.2.1 Extend Modules
Extend modules to the system are: probe extend module, video/audio extend module.

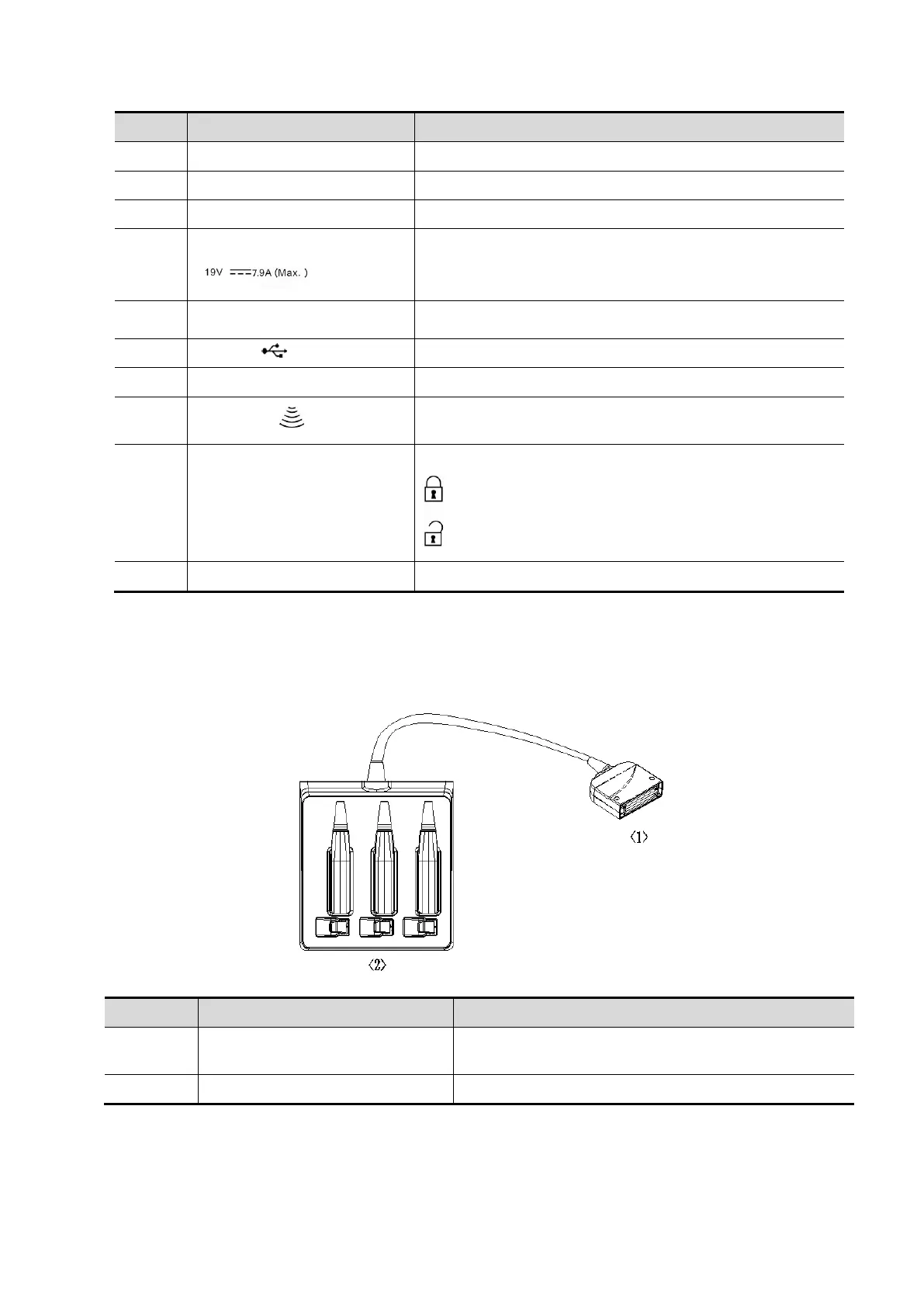

Probe extend module
No. Name Function
<1> Connector
Connects to the probe port of the main unit, and
extends the probe port to three.
<2> Probe port To extend ports for connecting probes
