Product Specifications 2-3
Note: 1. Perform the plug and unplug of the probe module. To reduce the wastage of probe
module, the operation should be conducted under frozen status of the system.
2. If you use the probe extend module to connect a probe, the image quality may be
degraded.

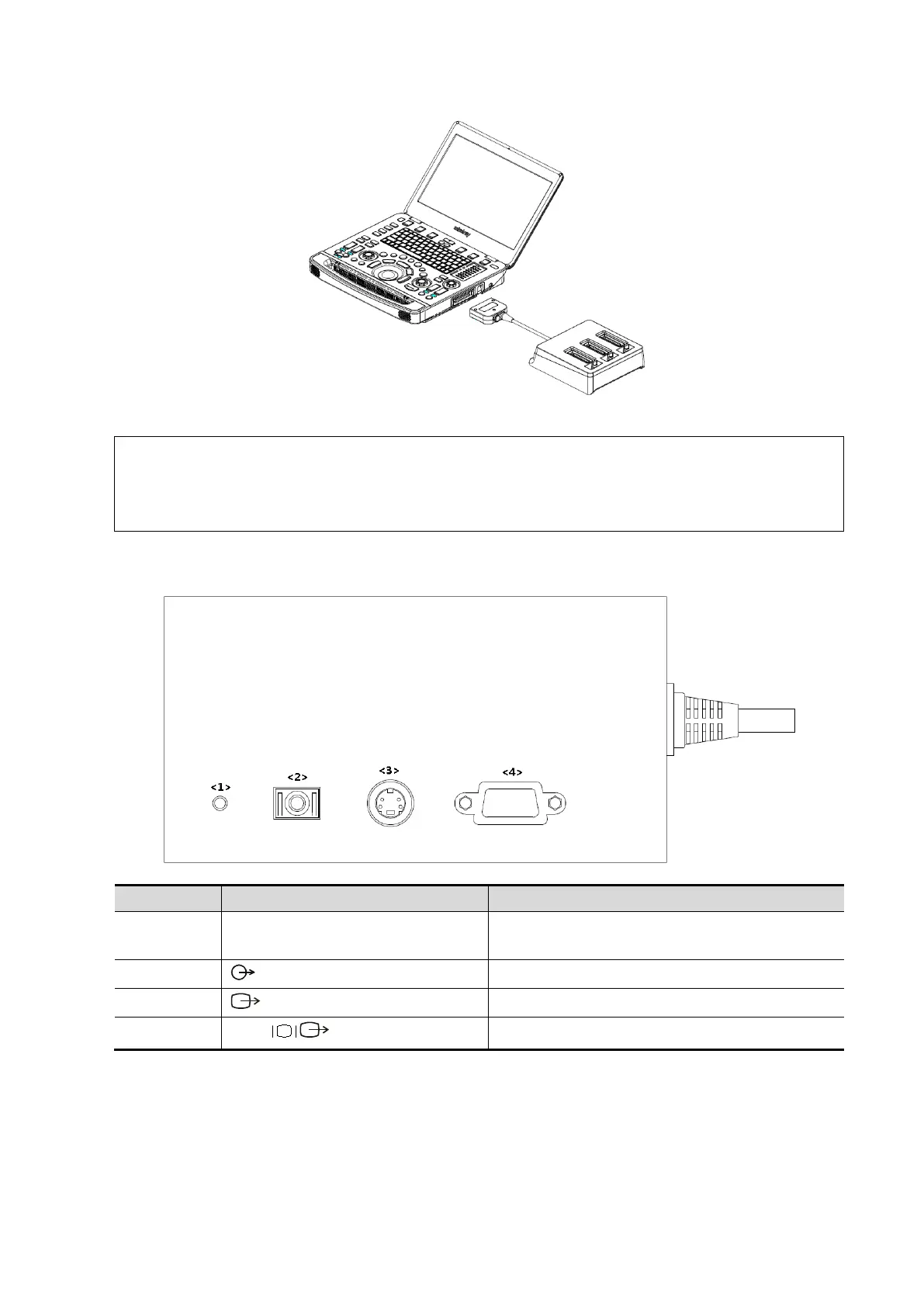

Audio/Video extend module
Panel introduction
<1>
Indicator
Used for connecting to main unit. The green
indicator is on.
<2>
Used for audio signal output.
<3>
Used for separate video output.
<4>
VGA
VGA signal output
Connection
Connect the V/A extend module to the main unit via an HDMI port. As shown in the following figure.
