System Installation 3-15
For version upgrading, contact the Mindray service engineers. Select [Setup]→[About]→[About
Details]→[Operating System Version] to check the operating system of your device.
Setting Up the JADAK Barcode Reader (Taking HS-1R as an Example)
1. Turn off the power to the Ultrasound System;
2. Connect the appropriate interface cable to the barcode reader;
3. Plug the other end of the cable into a free USB port on the Ultrasound system;
4. Once the imager has been fully connected, power on the Ultrasound System.
HS-1M JDK-2413 Configuration
The barcode reader is configured through scanning the barcode. Ensure that the barcode reader is
properly connected to the Ultrasound System before scanning. After the barcode is successfully
scanned, the barcode reader buzzes, and the green indicator is On.
Configuration before use

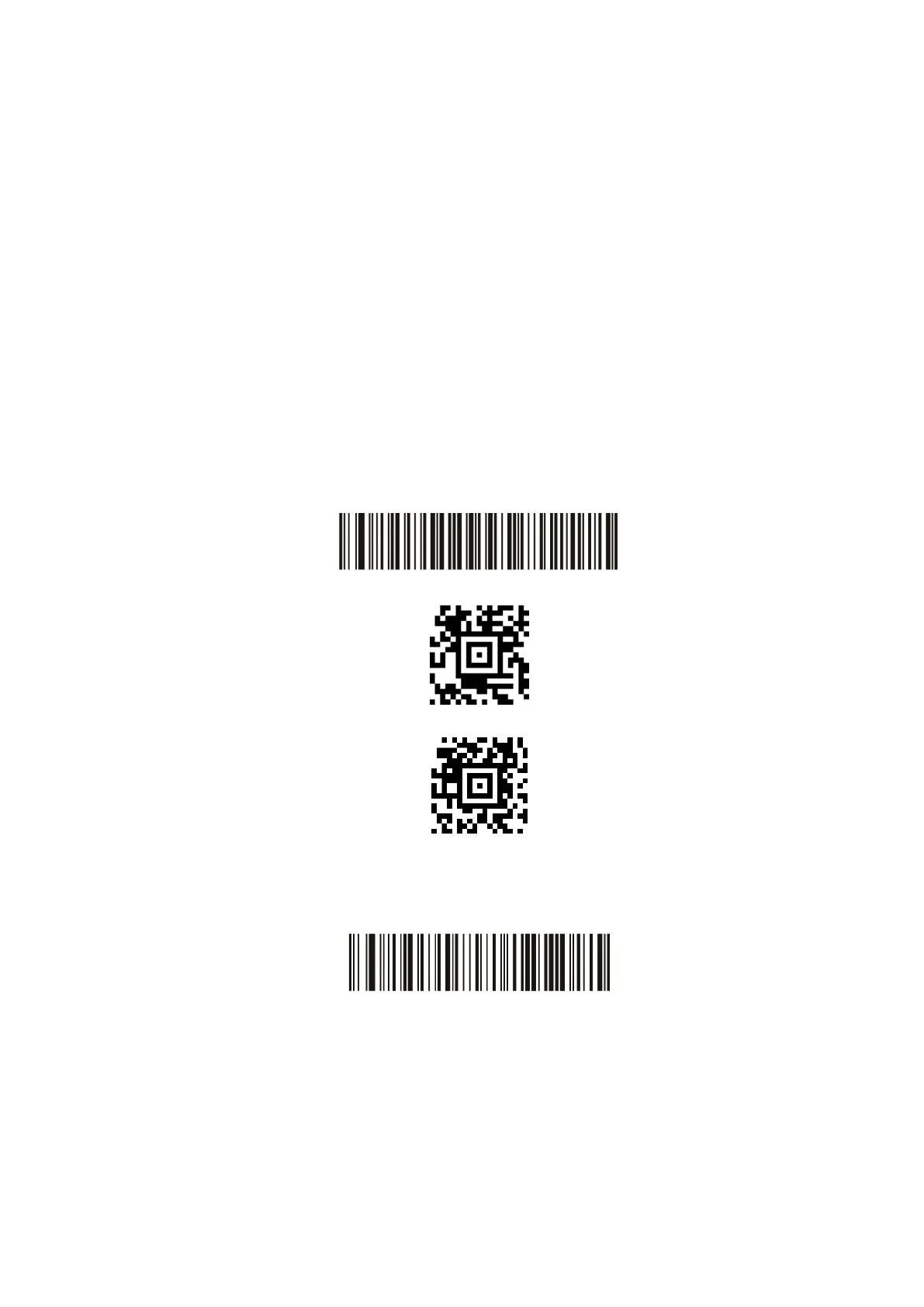

1. Scan the following 1-D barcode to configure the barcode reader:
2. Scan the following 2-D barcode to enable the suffix:
3. Scan the following 2-D barcode to set the suffix to Enter:
Reset the barcode reader
1. If the barcode reader is in malfunction, scan the following 1-D barcode to reset to default
settings.
2. Follow the configuration steps above to reconfigure the barcode reader.
HS-1R JDK-2601 Configuration
The barcode reader is configured through scanning the barcode. Ensure that the barcode reader is
properly connected to the Ultrasound System before scanning. After the barcode is successfully
scanned, the barcode reader buzzes, and the green indicator is On.
Configuration before use
1. Scan the following 1-D barcode to configure the barcode reader:
To Next Page
