2. Connecting wires
(1). Shield processing
Please give certain shield processing by using “Shielded cable”, “Conduit piping”,
and “Shield wiring material besides” for connecting the I/O cables of the
instrument. The main point to shield is shown below.

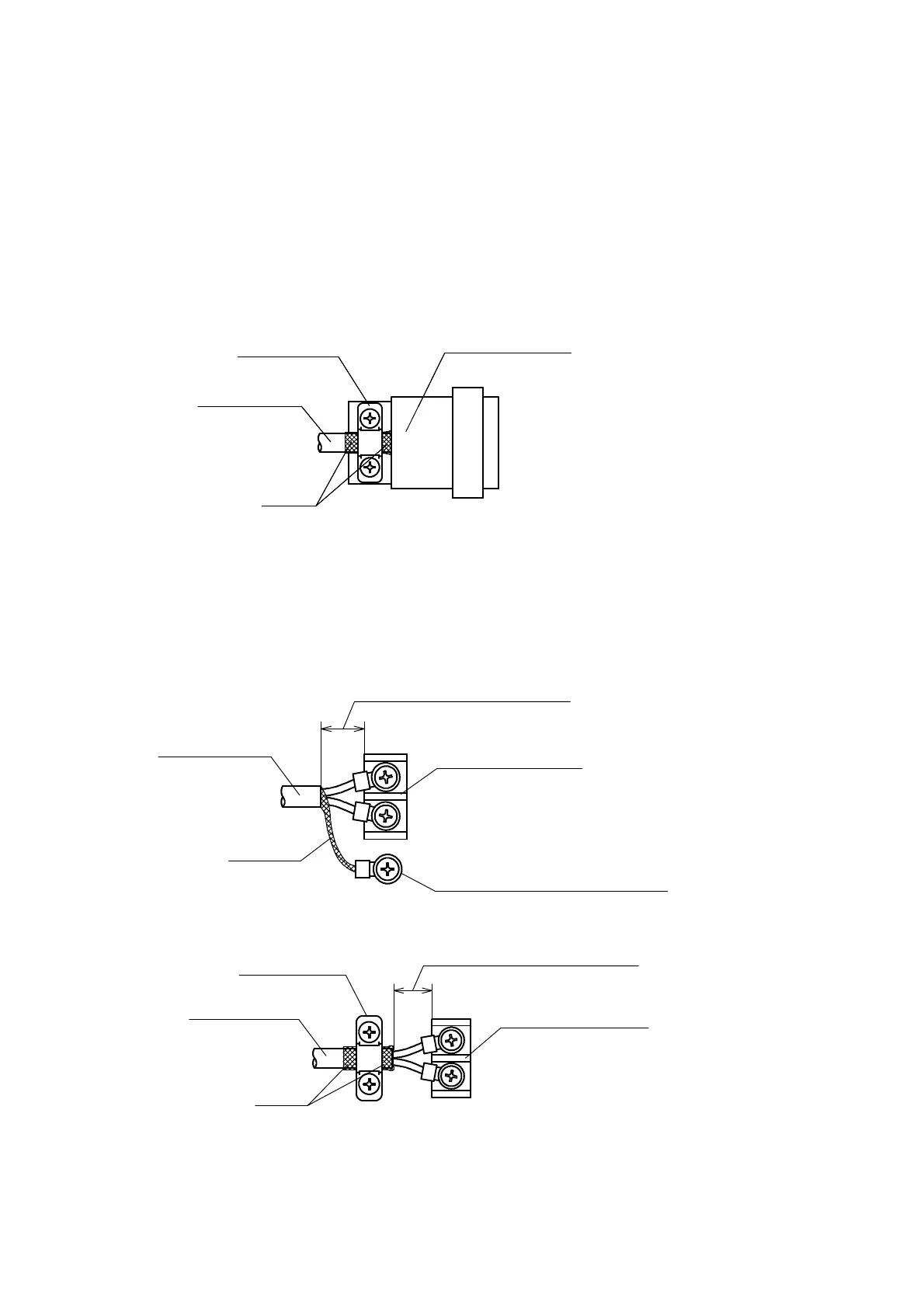

D When you use the shield connector plug of a shielded cable and a metallic
shell, the shield must be touched directly with the cable clamp section of
the connector as shown in the figure below.
Connector plug
Shielded cable
Shield
Cable clump
D When you install the connector receptacle and crimp−type terminal lugs in
the point of the shielded cable, the shield is left for the cable point as much
as possible, and connect the shield with the case as shown in the figure
below.
・When connecting directly with the case
Shielded cable
Shield
Shortens as much as possible.
Terminal block etc.
Connects directly with the case.
・When connecting with the case by the metal clamping
Cable clump
Shielded cable
Shield
Shortens as much as possible.
Terminal block etc.
To Next Page
