2

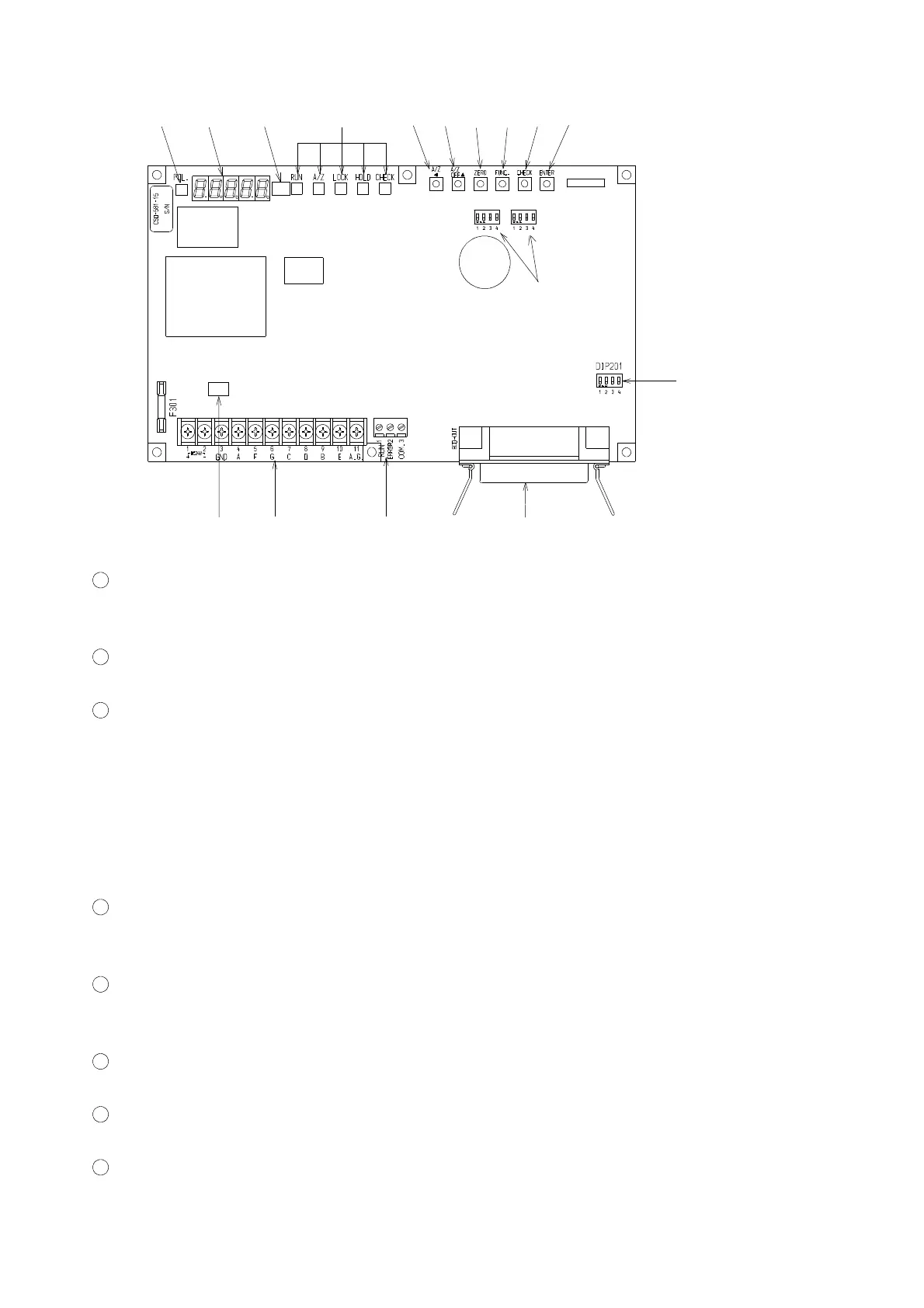

2. Each name and function
①
④⑤⑥⑦⑧⑨
③
②
⑭⑪ ⑫ ⑬
⑩
⑮
1
Load display
The load data is shown in Measurement mode, and status display will be shown in various
kinds of Calibration modes and Setting mode.
2
POL. (Polarity) display
Displays polarities for load data. Lights up when the load data is minus “−”.
3
Status display
RUN Lights up when the instrument is in the Measurement mode.
A/Z Lights up when Tare weight cancellation is performed(A/Z ON). And puts off when
Tare weight cancellation is cleared. (A/Z OFF)
LOCK Lights up when between the LOCK at external control input and COM. is shorted.
Key switch operation can’t be made during lighting up.
HOLD Lights up when between the HOLD at external control input and COM. is shorted.
CHECK Lights up when CHECK is ON with the “CHECK” key pressed.
4
“A/Z A ” key
Executes Tare weight cancellation (A/Z). Moreover, it is applied when carrying up various
kinds of setting values are required.
5
“A/Z OFF Y” key
Executes Tare weight cancellation clear(A/Z OFF). Moreover, it is applied for numerical
increment at the time of various kinds of setting.
6
“ZERO” key
Executes Zero set (One touched zero adjustment).
7
“FUNC.” key
Used for shifting to the Function mode.
8
“CHECK” key
CN202
DIP202
DIP203
⑯
To Next Page
