2 x stereo or
1 x multichannel
power amplifier
1
2
3
4
Left
woofer
Left
tweeter
Right
woofer
Right
tweeter
Protection
capacitor
Input sources
miniDSP
Processor

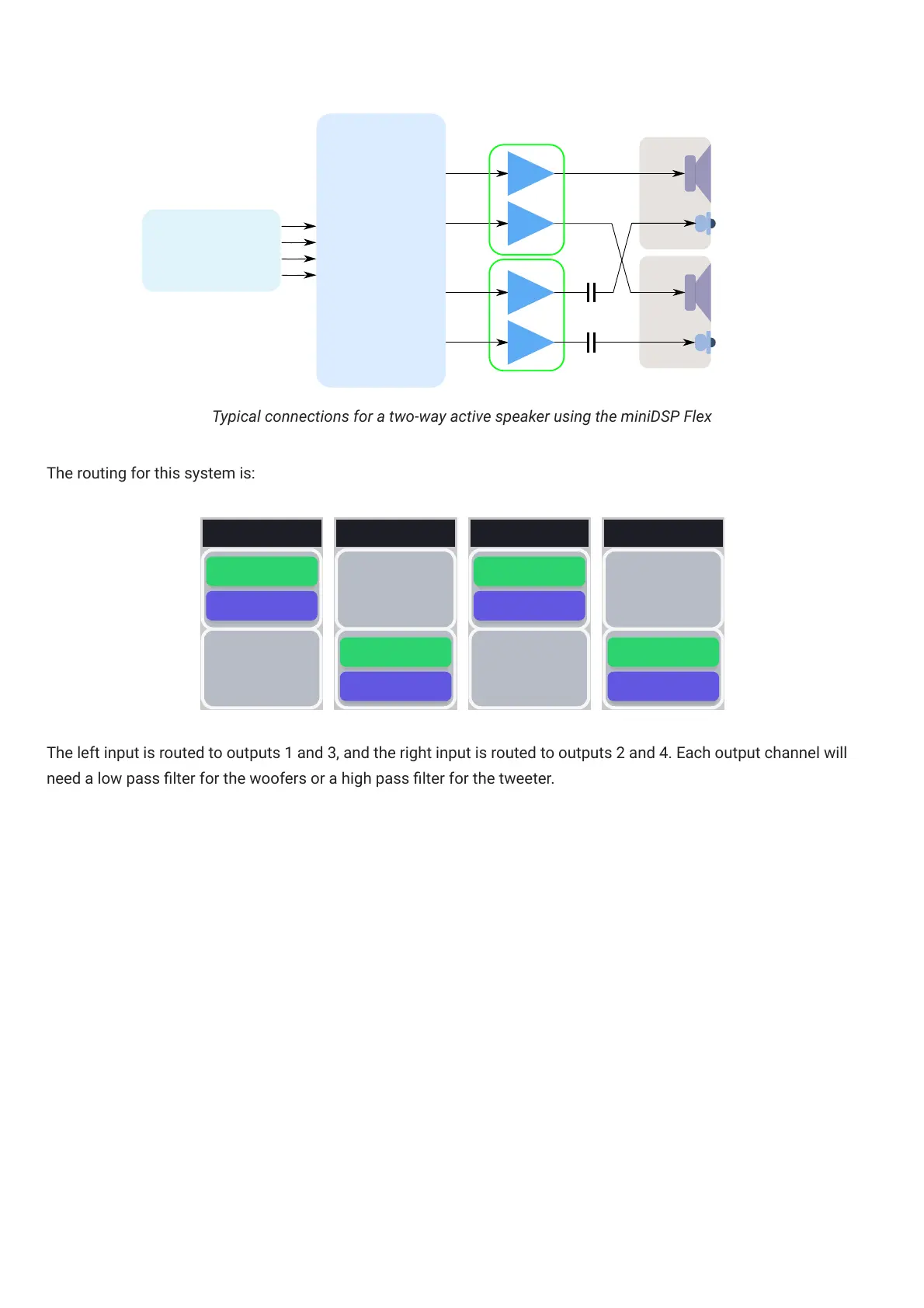

Typical connections for a two-way active speaker using the miniDSPFlex
The routing for this system is:
0 DB
Right In
0 DB
Right In
0 DB
Left In
0 DB
0 DB
Right WoofLeft Woof Left Tweet Right Tweet
Left In
0 DB
Left In
0 DB
Left In
Right In
0 DB
Right InRight In
The left input is routed to outputs 1 and 3, and the right input is routed to outputs 2 and 4. Each output channel will
need a low pass lter for the woofers or a high pass lter for the tweeter.
