Playing Audio
The miniDSPFlex has a range of input sources and output connections. This section provides an overview of the
basics so you can quickly get started with playing audio.
Connecting sources
The diagram below shows the audio sources that can be connected to the miniDSPFlex.
USB audio
Digital sources
SPDIF coax TOSLINK optical
miniDSP
Flex
Phono preamp
Turntable
INPUTS
OUTPUTS
DSP.
M  C
D  HK
M: FLEX
I: 12VDC/10W
GND
A 
C
DC 12V
SPDIF
TOSLINK
D
USB
PWR
RESET
2
1
2
1
4
3
1
LeftRight
Bluetooth
audio

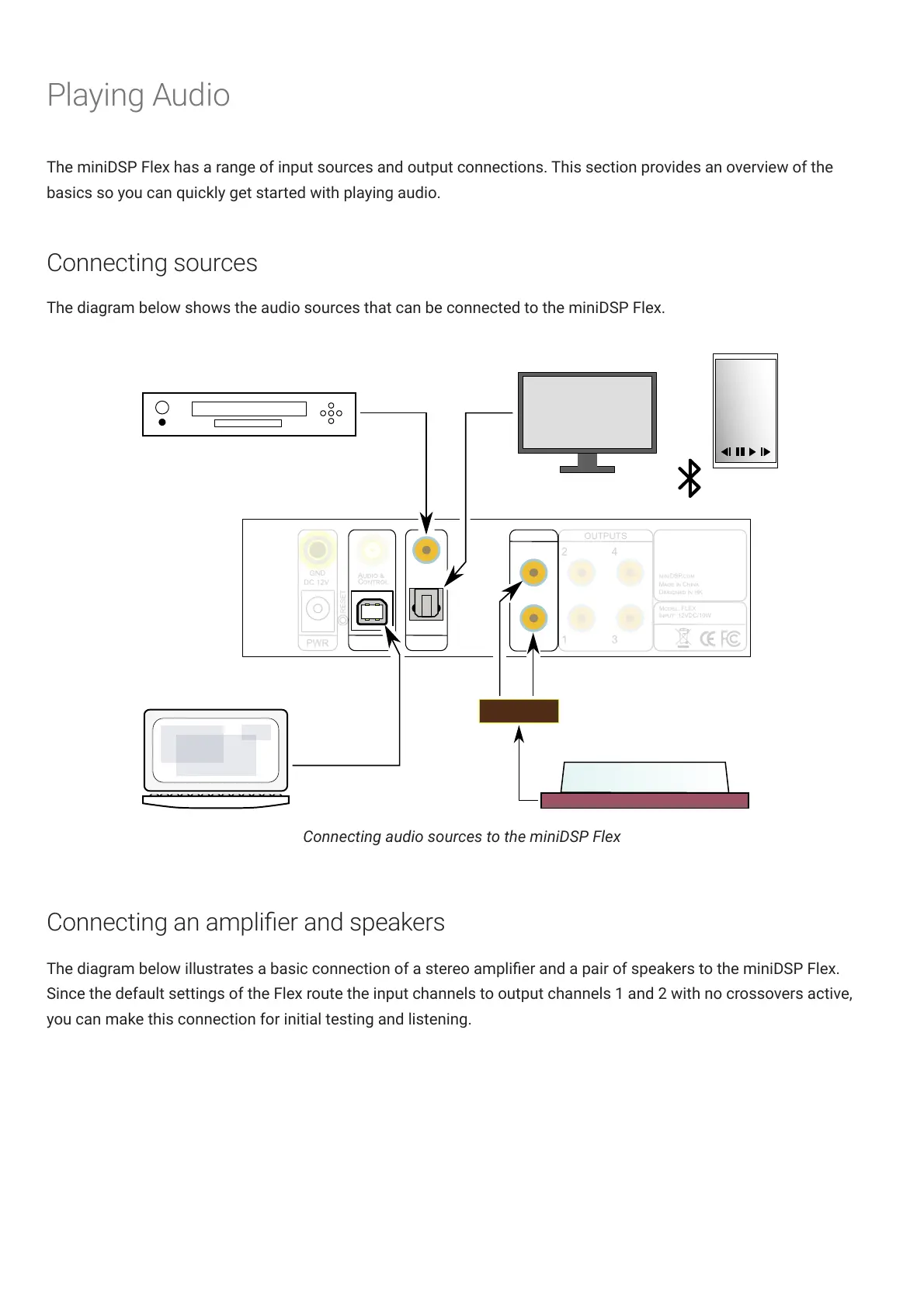

Connecting audio sources to the miniDSPFlex
Connecting an amplier and speakers
The diagram below illustrates a basic connection of a stereo amplier and a pair of speakers to the miniDSPFlex.
Since the default settings of the Flex route the input channels to output channels 1 and 2 with no crossovers active,
you can make this connection for initial testing and listening.
