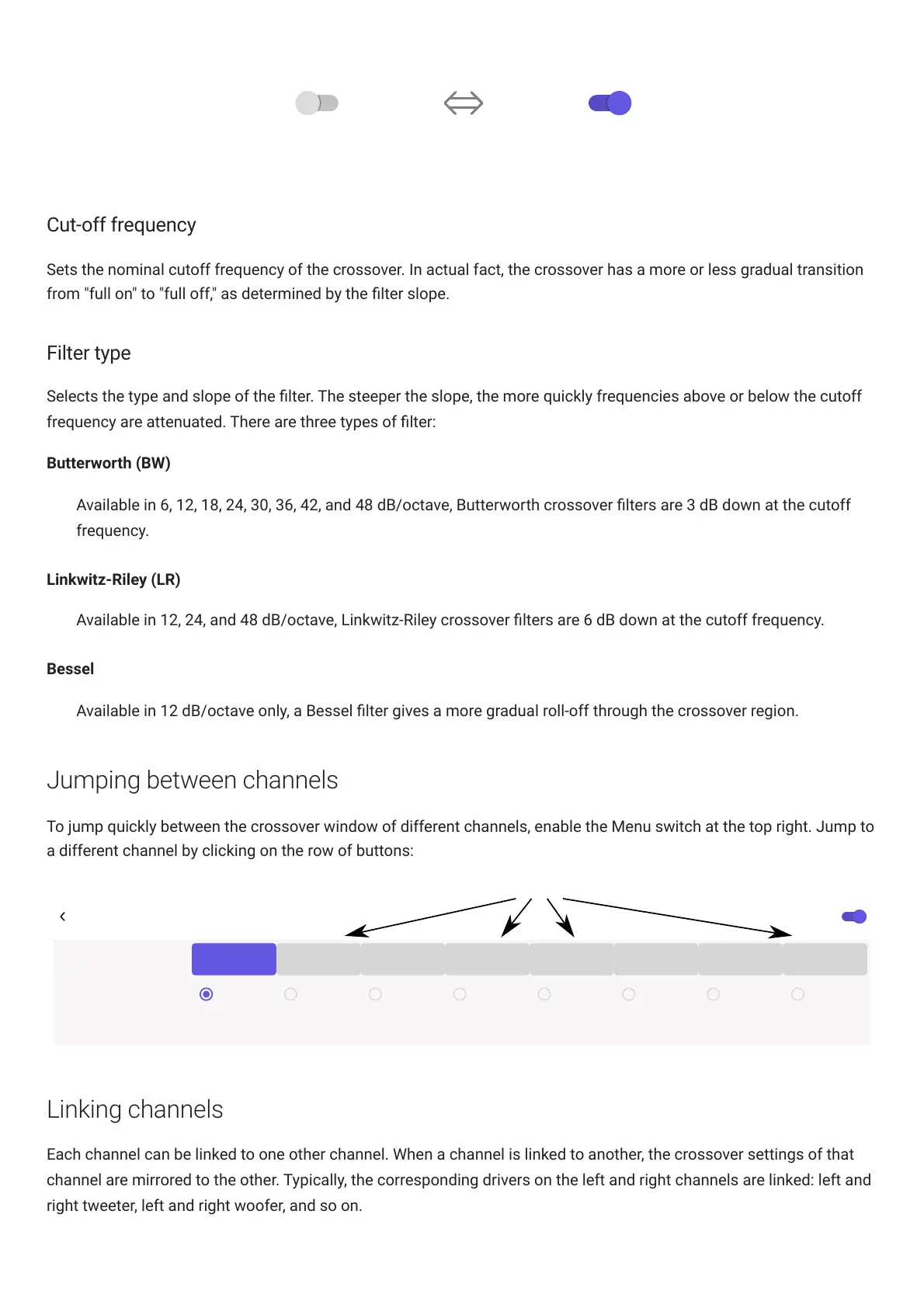

Cut-off frequency
Sets the nominal cutoff frequency of the crossover. In actual fact, the crossover has a more or less gradual transition
from "full on" to "full off," as determined by the lter slope.
Filter type
Selects the type and slope of the lter. The steeper the slope, the more quickly frequencies above or below the cutoff
frequency are attenuated. There are three types of lter:
Butterworth (BW)
Available in 6, 12, 18, 24, 30, 36, 42, and 48 dB/octave, Butterworth crossover lters are 3 dB down at the cutoff
frequency.
Linkwitz-Riley (LR)
Available in 12, 24, and 48 dB/octave, Linkwitz-Riley crossover lters are 6 dB down at the cutoff frequency.
Bessel
Available in 12 dB/octave only, a Bessel lter gives a more gradual roll-off through the crossover region.
Jumping between channels
To jump quickly between the crossover window of different channels, enable the Menu switch at the top right. Jump to
a different channel by clicking on the row of buttons:
BACK
Crossover Details (Output 1)
Menu
Channels
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8
Link Channel
No Link Output 2 Output 3 Output 4 Output 5 Output 6 Output 7
Active Links
Output 8
Click to jump to a different channel
Linking channels
Each channel can be linked to one other channel. When a channel is linked to another, the crossover settings of that
channel are mirrored to the other. Typically, the corresponding drivers on the left and right channels are linked: left and
right tweeter, left and right woofer, and so on.
