miniDSP Flex - Two-Way Active Speaker Setup

3/15/23, 9:45 AM
Print or save - miniDSP Flex
https://docs.minidsp.com/product-manuals/flex/print_page.html
53/86
Left
speaker
Right
speaker
Stereo power
amplifier
2
1
4
3
Input sources
No connection
(or use for a
second subwoofer)
miniDSP
Processor
Powered
Subwoofer

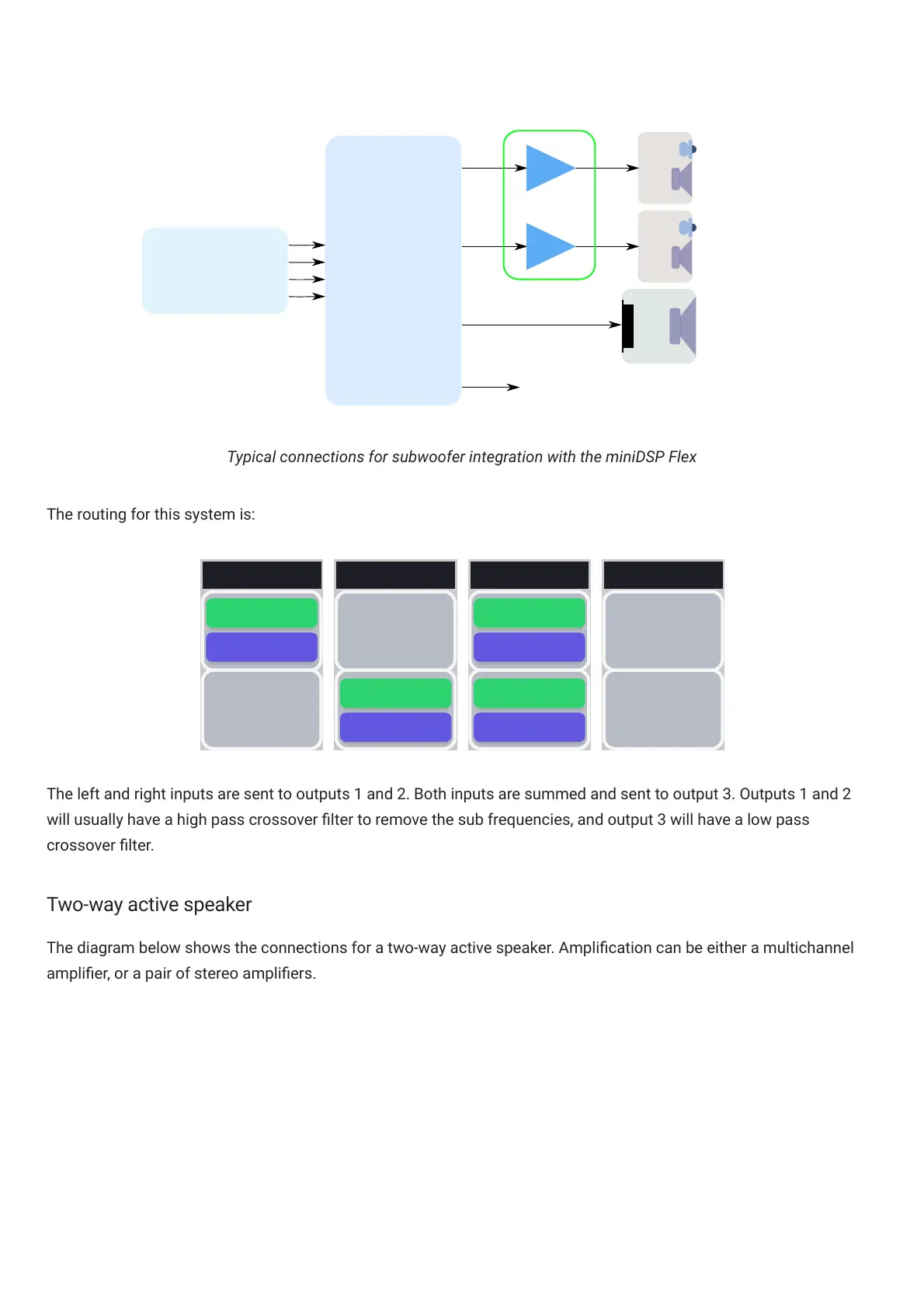

Typical connections for subwoofer integration with the miniDSPFlex
The routing for this system is:
0 DB
Left In
0 DB
Right In
0 DB 0 DB
0 DB0 DB
Right OutLeft Out Subwoofer Unused
Left In
0 DB
Left In Left In
Right In
0 DB
Right InRight In Right In
The left and right inputs are sent to outputs 1 and 2. Both inputs are summed and sent to output 3. Outputs 1 and 2
will usually have a high pass crossover lter to remove the sub frequencies, and output 3 will have a low pass
crossover lter.
Two-way active speaker
The diagram below shows the connections for a two-way active speaker. Amplication can be either a multichannel
amplier, or a pair of stereo ampliers.
