I
O
2
1
2
1
4
3
SPDIF
TOSLINK
D
A 
C
USB
RESET
GND
DC 12V
PWR
INPUTS
OUTPUTS
2
1
2
1
4
3
SPDIF
TOSLINK
D
A 
C
USB
RESET
GND
DC 12V
PWR
SPDIF
TOSLINK
D
A 
C
USB
RESET
GND
DC 12V
PWR
SPDIF
TOSLINK
OUT 34OUT 12
SPDIF
TOSLINK
OUTPUTS
INPUTS
2
1

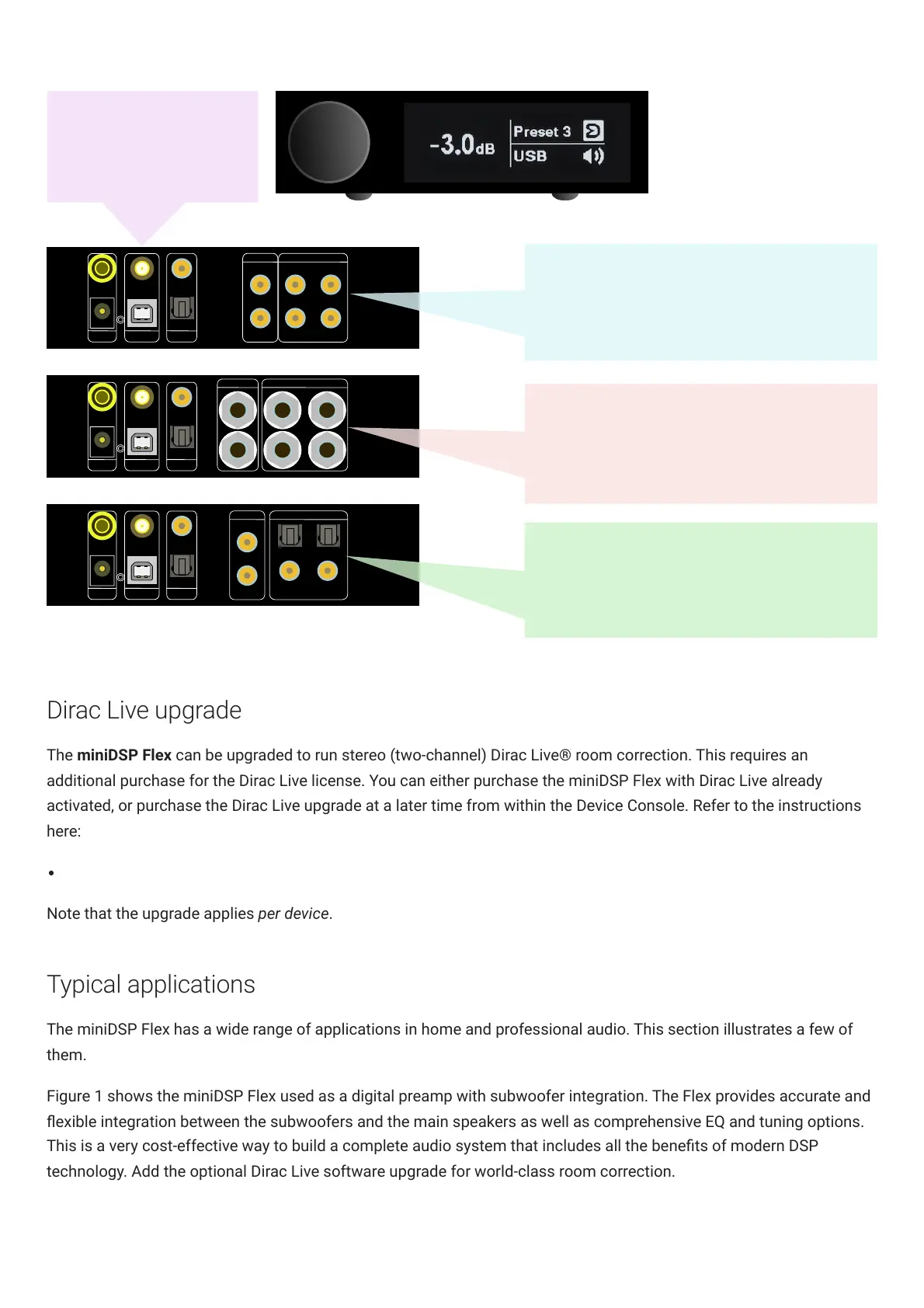

Flex
Our standard model with stereo analog input
and four channels of analog output, all on RCA
connectors. The perfect tiny digital/analog
preamp and room correction device.
Flex/Balanced
For those with balanced equipment whether
audiophile, studio, or on-the-go professional
sound use. TRS jacks keep the compact profile
and are easy to adapt.
Flex/Digital
For specialized needs including driving active
speakers with digital input, use with separate
DACs, or to capture an analog source into a
digital system.
SPDIF
TOSLINK
USB Audio
Bluetooth Audio
Common Inputs
DiracLive upgrade
The miniDSPFlex can be upgraded to run stereo (two-channel) DiracLive® room correction. This requires an
additional purchase for the DiracLive license. You can either purchase the miniDSPFlex with DiracLive already
activated, or purchase the DiracLive upgrade at a later time from within the Device Console. Refer to the instructions
here:
Convert to Flex (DL)
Note that the upgrade applies per device.
Typical applications
The miniDSPFlex has a wide range of applications in home and professional audio. This section illustrates a few of
them.
Figure 1 shows the miniDSPFlex used as a digital preamp with subwoofer integration. The Flex provides accurate and
exible integration between the subwoofers and the main speakers as well as comprehensive EQ and tuning options.
This is a very cost-effective way to build a complete audio system that includes all the benets of modern DSP
technology. Add the optional DiracLive software upgrade for world-class room correction.
