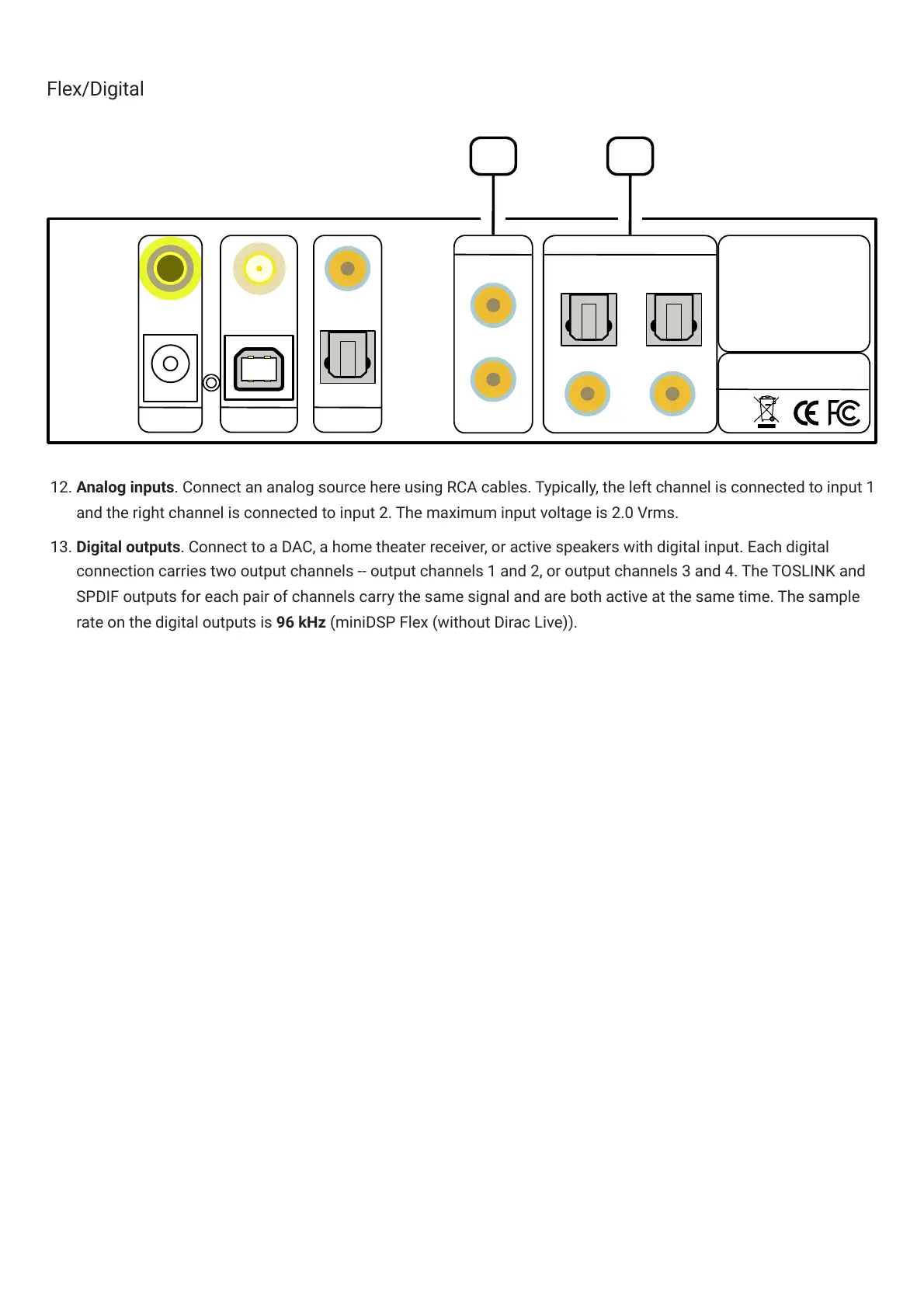

Flex/Digital

3412

DIGITAL OUT

INPUTS

DSP.

M  C

D  HK

M: FLEX/DIG

I: 12VDC/10W

GND

A 

C

DC 12V

SPDIF

TOSLINK

D

USB

PWR

RESET

12 13

12. Analog inputs. Connect an analog source here using RCA cables. Typically, the left channel is connected to input 1

and the right channel is connected to input 2. The maximum input voltage is 2.0 Vrms.

13. Digital outputs. Connect to a DAC, a home theater receiver, or active speakers with digital input. Each digital

connection carries two output channels -- output channels 1 and 2, or output channels 3 and 4. The TOSLINK and

SPDIF outputs for each pair of channels carry the same signal and are both active at the same time. The sample

rate on the digital outputs is 96 kHz (miniDSPFlex (without DiracLive)).
