MIRCOM TECHNOLOGIES LIMITED, 9500 Series: No Subscriber Line Page 22

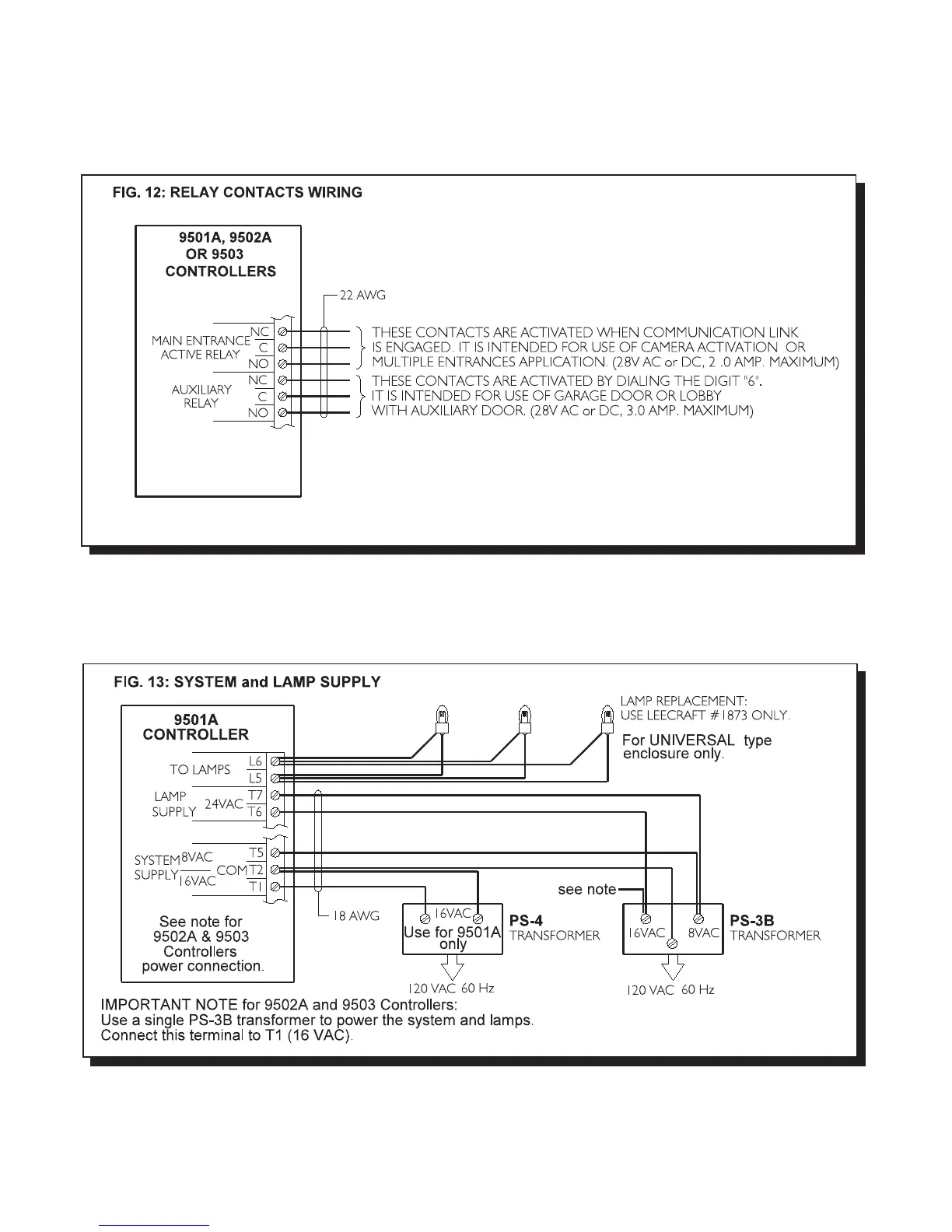

WIRING THE AUXILIARY RELAY and MAIN ENTRANCE ACTIVE RELAY CONTACTS
Wire as shown in FIG.12.
WIRING THE SYSTEM and LAMP SUPPLIES
Wire as shown in FIG. 13.
