MIRCOM TECHNOLOGIES LIMITED, 9500 Series: No Subscriber Line Page 23

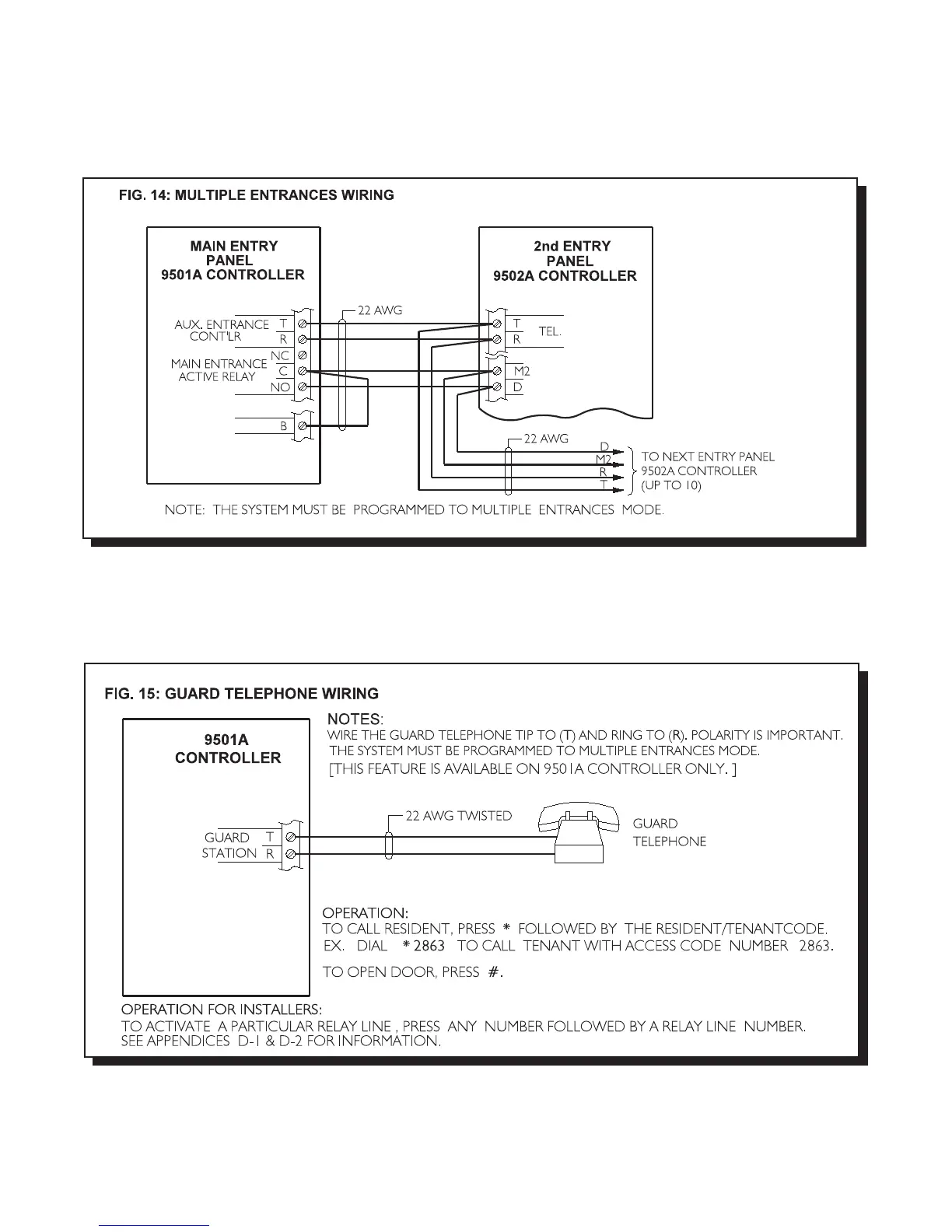

WIRING INSTRUCTION FOR MULTIPLE ENTRANCES APPLICATION
Wire as shown in FIG. 14.
WIRING THE GUARD TELEPHONE TO 9501A CONTROLLER
Wire as shown in FIG. 15.
