18.4.2 Configuration of the I/O expansions
Dip–switches are used to configure the addresses of the I/O expansions:
Expansion No.
Address
Dip-switches
1
8
18.4.3 Configuration of T+H probes
The T+H probe module communication parameters are configured using the Dip-Switches on the probe electronic boards.

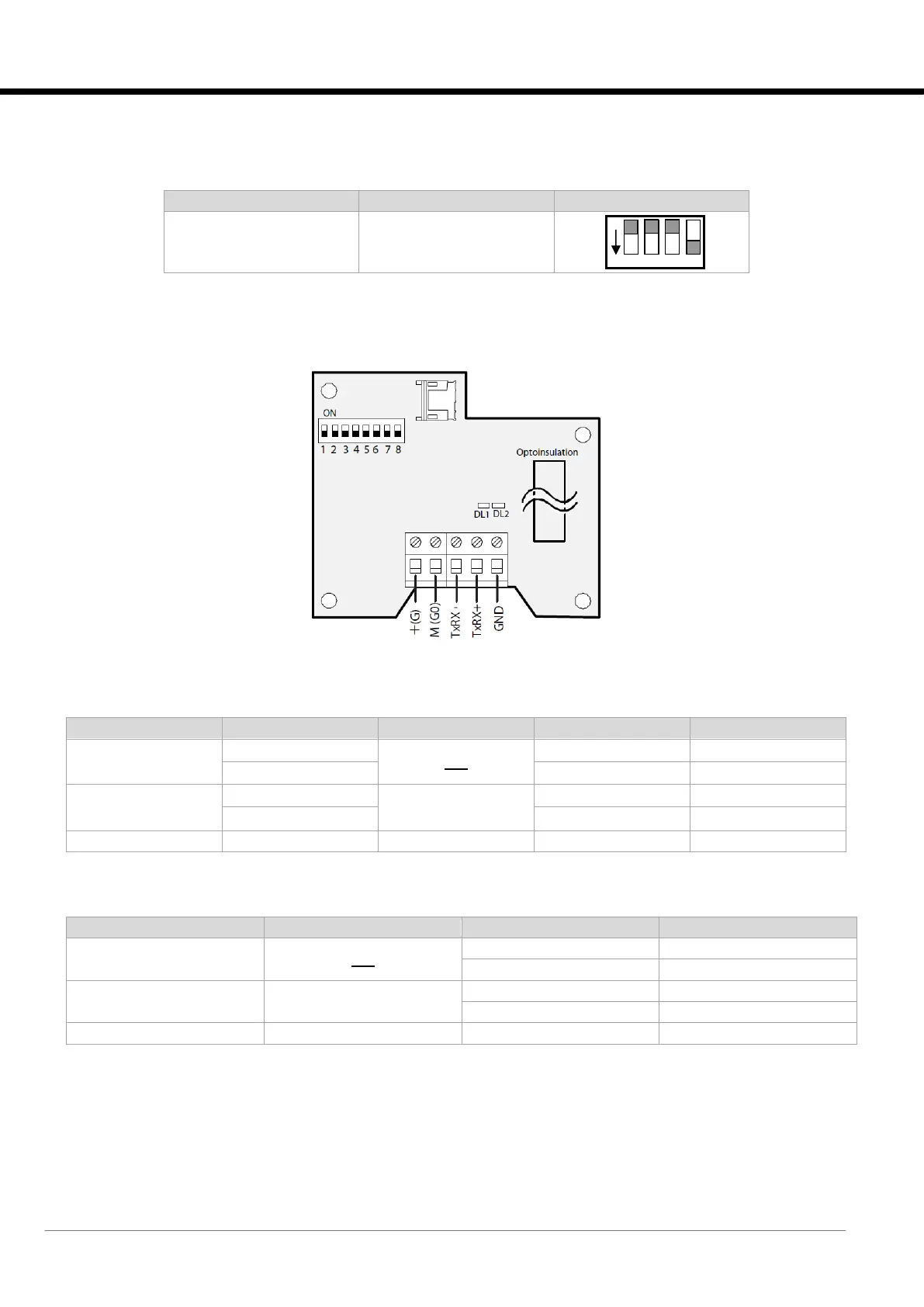

Figure 18-7: T+H probe module layout.
Configuration of return T+H Probe:
Description
Value
Dip-switches
Position
Address
128
1
OFF
2÷5
OFF
Protocol
Modbus 8-None-2
6
OFF
7
ON
19200
8
OFF
Configuration of remote T+H probe:
Description
Value
Dip-switches
Position
Address
129
1
ON
2÷5
OFF
Protocol
Modbus 8-None-2
6
OFF
7
ON
19200
8
OFF
ON
2
3
4
1
