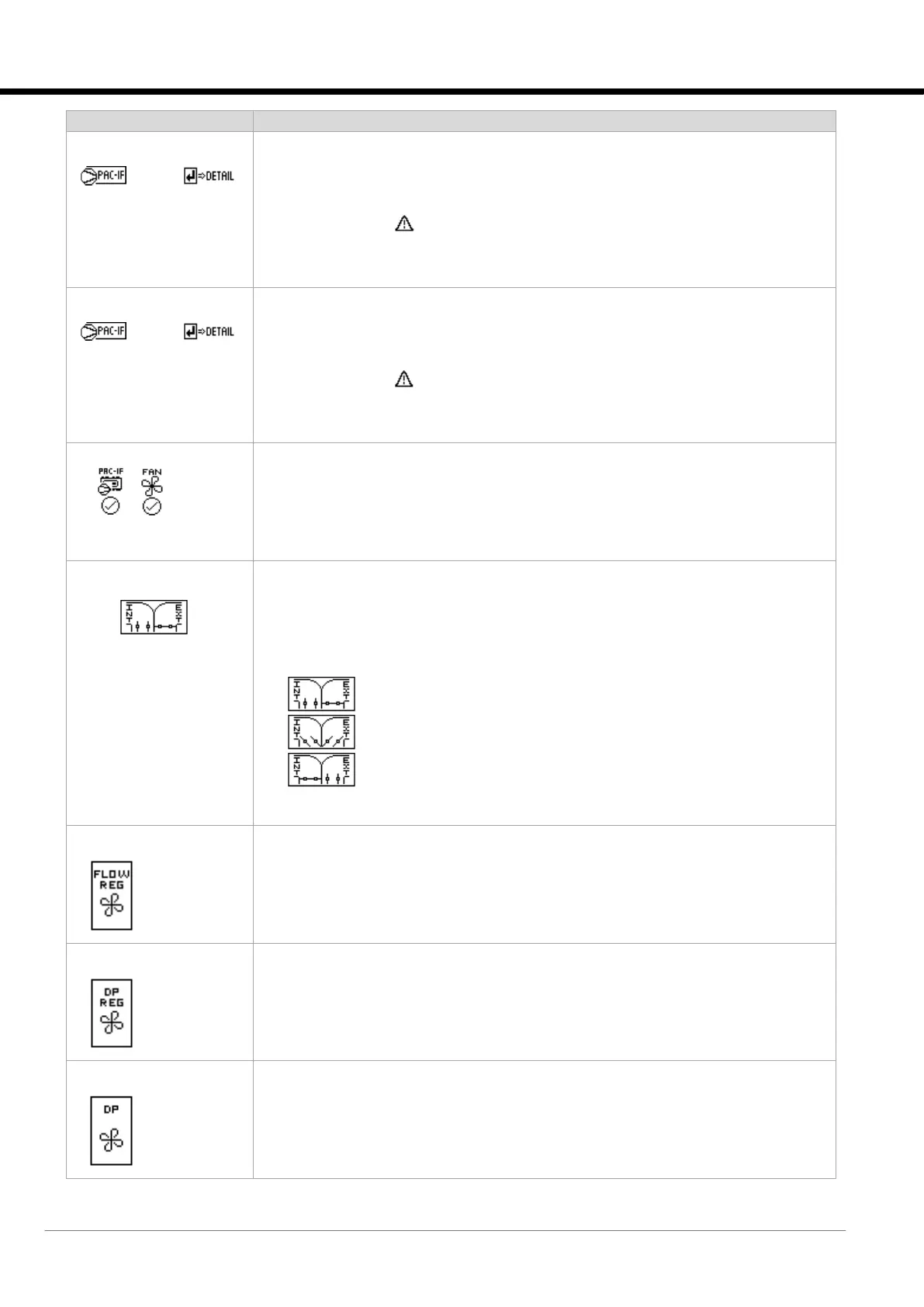

Mask of the terminal
Description
PAC-IF013B-Client
Active step: 11
Mode: COOLING
Status: Online
Client PAC-IF013B-E status
Pressing [ENTER] will take to the section containing additional Client PAC-IF card
information
In case of alarm, the icon will flash showing the “PAC-IF code:” message followed by
the alarm code from the PAC-IF card. For additional information on the meaning of the
code, see the “Event Mask” chapter.
Information visible only with S-MEXT units.
PAC-IF013B-E Server1
Active step: 11
Mode: COOLING
Status: Online
Server 1 PAC-IF013B-E status
Pressing [ENTER] will take to the section containing additional Server 1 PAC-IF card
information
In case of alarm, the icon will flash showing the “PAC-IF code:” message followed by
the alarm code from the PAC-IF card. For additional information on the meaning of the
code, see the “Event Mask” chapter.
Information visible only with S-MEXT unit and Server 1 enabled.
SAFETY REDUCTION LOAD
NORMAL WORK
Mask that displays the status of the Safety Reduction Load function for units with s-MEXT
For more information see the “Safety Reduction Load Mask” section.
Direct FreeCooling
DeltaT 02.0
T.Int T.Ext
25.0 23.0
Status: Enabled
Pos.:All Internal 000%
Display of operation of the Direct Free Cooling function.
Displayed:
• Internal T, external T and Enabling of direct Free Cooling.
• Damper position (internal only, mixing, external only) and the opening percentage.
The image graphically describes the Free Cooling damper position:
• Damper in internal air only position.
• Damper in the internal and external air mixing position.
• Damper in external air only position.
Visible only if the function is enabled
Constant FlowRate Reg.
Target
02500m3/h
Current
02500m3/h
Status
On Target
Display of operation of the Constant Capacity function.
Visible only if the function is enabled.
Constant DeltaP Regul.
Target
0010Pa
Current
0010Pa
Status
On Target
Display of operation of the Constant Head function.
Visible only if the function is enabled.
.DeltaP .
Current
0010Pa
DeltaP value display only.
Visible only if the function is enabled.
