5 PART NAMES
223
5
5 PART NAMES

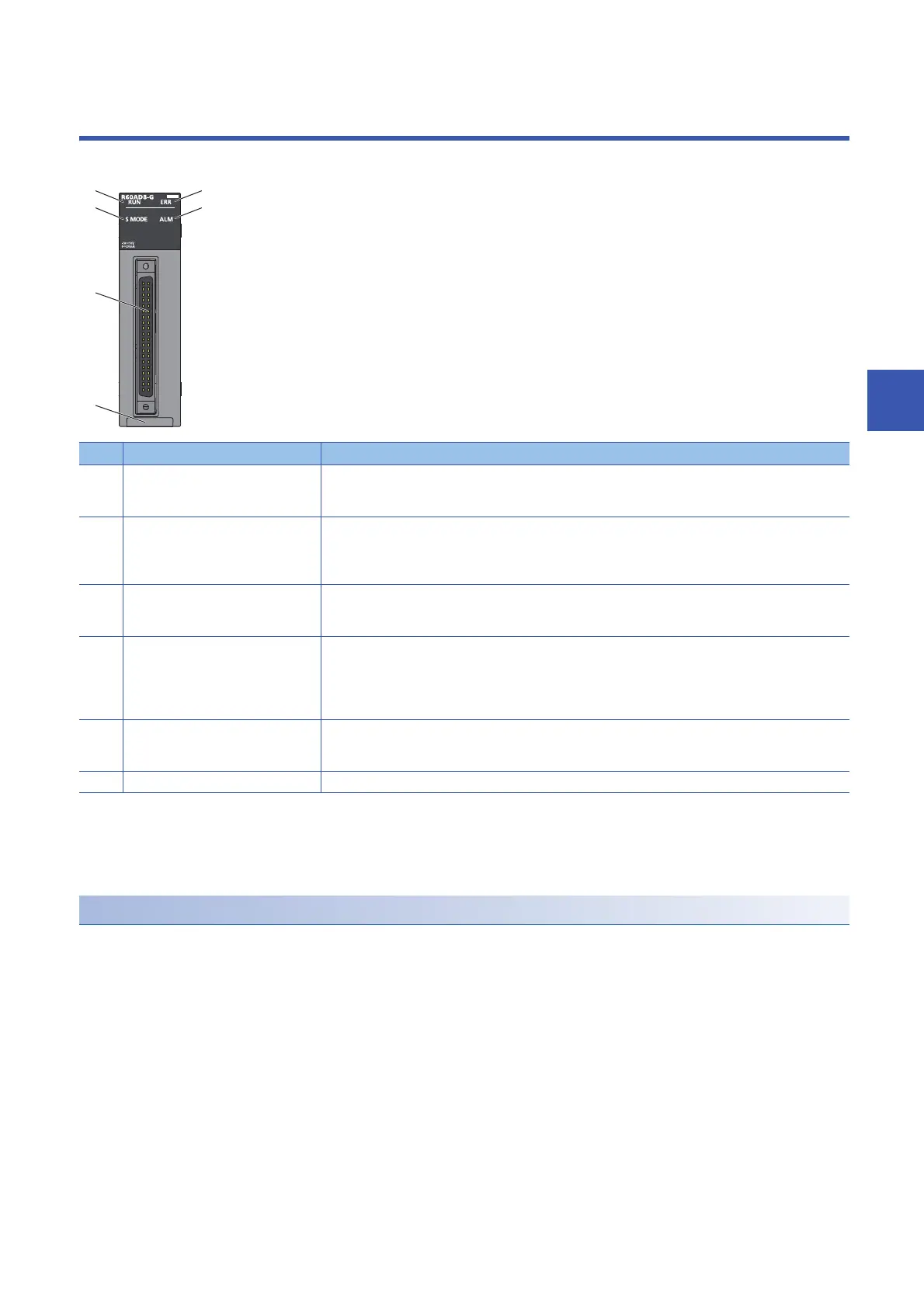

Part names of the R60AD8-G are as follows.
*1 For details, refer to the following.
Page 320 List of Error Codes
*2 The LED is added to the module with production information (first four digits) of "0207" or later.
*3 For details, refer to the following.
Page 258 Safety module operation
ERR LED behavioral difference from standard mode
In standard mode, the ERR LED turns on if a minor or moderate error occurs. In SIL2 mode, the ERR LED turns on if a minor
error occurs and flashes if a moderate error occurs.
No. Name Description
(1) RUN LED Indicates the operating status of the module.
On: Normal operation
Off: 5V power off or a watchdog timer error occurred.
(2) ERR LED Indicates the error status of the module.
*1
On: An error occurred (minor error).
Flashing: An error occurred (moderate error).
Off: Normal operation
(3) ALM LED Indicates the wait-for-restart status after the safety module is enabled.
Flashing (400ms cycles): Wait-for-restart
Off: Normal operation
(4) S MODE LED
*2
Indicates the operating status of the module (SIL2 mode).
On: SIL2 A/D conversion is ongoing.
Flashing (1s cycles): SIL2 A/D conversion is stopped.
Flashing (400ms cycles): Executing the module position check
*3
Off: Operating in standard mode
(5) Connector for external devices Connectors to connect input signal lines for external devices
For details on signal layout, refer to the following.
Page 242 Signal layout for the connector for external devices
(6) Production information marking Shows the production information (16 digits) of the module.
