1 FUNCTIONS
1.10 Difference Conversion Function

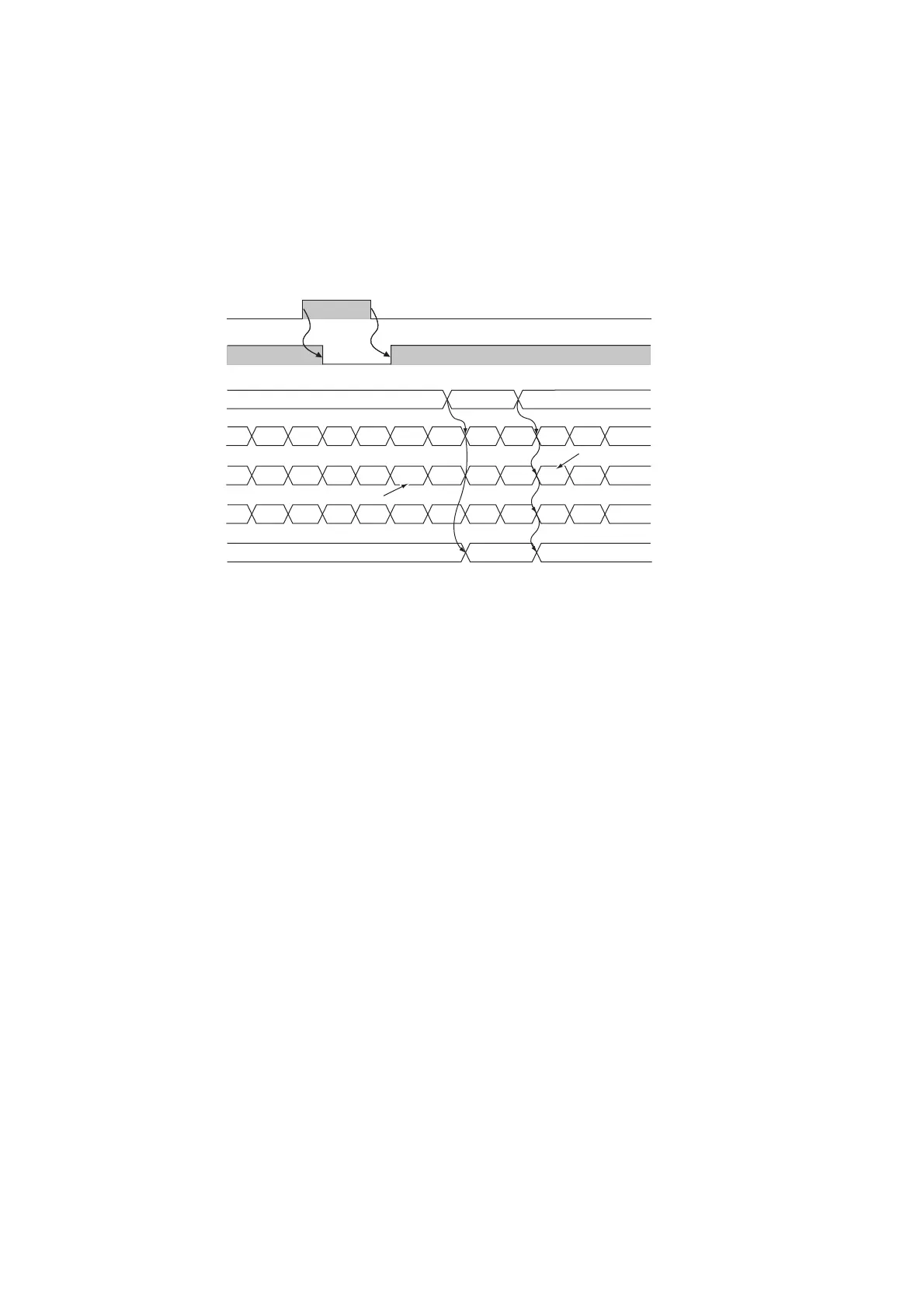

■Operations of when 'Operating condition setting request' (Y9) is turned on and off
• During the difference conversion, even when 'Operating condition setting request' (Y9) is turned on and off, the difference
conversion continues without updating the difference conversion reference value. To updating the difference conversion
reference value, restart the difference conversion by changing CH1 Difference conversion trigger (Un\G470) from Trigger
request (1) to No request (0), and Trigger request (1) again.
• CH1 Difference conversion trigger (Un\G470) does not become valid even when the trigger changes from No request (0) to
Trigger request (1) when 'Operating condition setting request' (Y9) is turned off and on. After turning on and off 'Operating
condition setting request' (Y9), change CH1 Difference conversion trigger (Un\G470) from No request (0) to Trigger request
(1) again.
9950 1300010001 10100 10010 10510 12000 12100 13250 13310
10000 1300010000 10000 10000 10000 10000 10000 10000 13000
-50 01 100 10 510 2000 12100 13250 310
ON
ON
OFF
OFF
Trigger request (1) Trigger request (1)
No request (0)
Converting difference (1) Converting difference (1)
Not converted (0)
CH1 Digital operation value
before difference conversion
'CH1 Difference conversion
reference value' (Un\G432)
'CH1 Difference conversion
status flag' (Un\G408)
'CH1 Digital operation value'
(Un\G402)
'CH1 Difference conversion
trigger' (Un\G470)
'Operating condition setting
completed flag' (X9)
'Operating condition setting
request' (Y9)
Updated
Not updated
