Mitsubishi FX3U Series Operation Manual

5 Data set

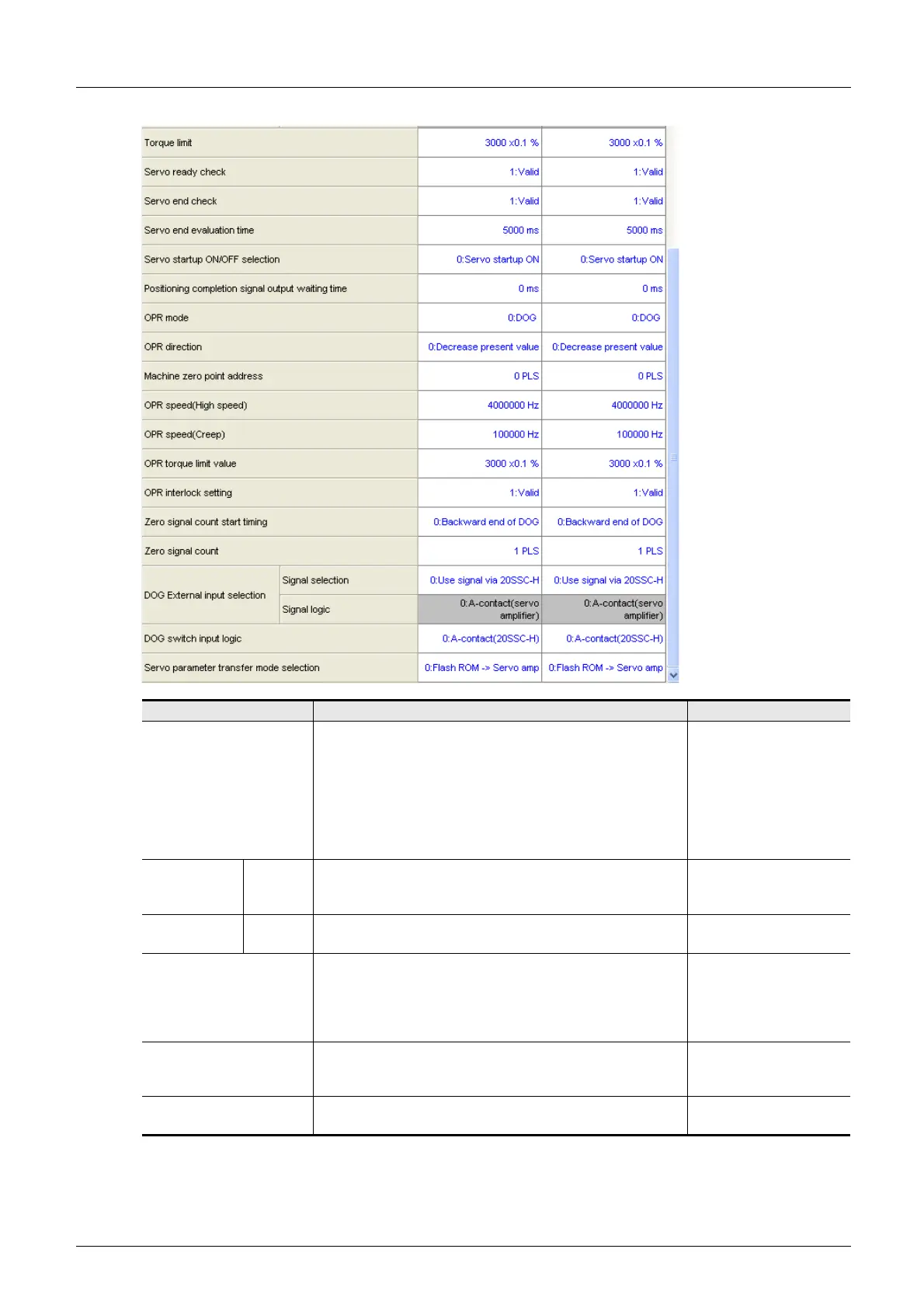

5.2 Setting positioning parameters
40
FX Configurator-FP
Operation Manual
Item Description Default value
System of unit
Sets the system of units for positioning for the X/Y-axis.
0: Motor (PLS, Hz)
1: Mechanical (m, cm/min)
2: Mechanical (0.0001inch, inch/min)
3: Mechanical (mdeg, 10deg/min)
4: Composite (m, Hz)
5: Composite (0.0001inch, Hz)
6: Composite (mdeg, Hz)
0: Motor (PLS, Hz)
Pulse rate
Pulse per
rotation
Sets the pulse rate for the X/Y-axis.
Set the resolution per servo motor rotation.
Setting range : 1~200,000,000 PLS/REV
262,144 PLS/REV
Feed rate
Travel per
rotation
Sets the feed rate for the X/Y-axis.
Setting range : 1~200,000,000 [User unit]
*1
/REV
52,428,800 PLS/REV
Position data magnification
Sets the position data magnification for the X/Y-axis.
0: 1 times
1: 10 times
2: 100 times
3: 1000 times
0: 1 times
Ring counter setting
Sets the Ring counter to valid/invalid for the X/Y-axis.
0: Invalid
1: Valid
0: Invalid
Ring counter upper limit
value
Sets the Ring counter upper limit value for the X/Y-axis.
Setting range : 1~359,999,999 [User unit]
*1
359999PLS

Mitsubishi FX3U Series Specifications

General

Model	FX3U Series
Program Memory	64k steps
Execution Speed	0.065 μs/basic instruction
Type	PLC (Programmable Logic Controller)
Power Supply	100-240V AC
I/O Points	Up to 384
Communication	USB
Expansion	Supported via expansion modules
High-Speed Counters	Up to 6 channels
Analog Input/Output	Available via expansion modules
Temperature Range	0 to 55°C
Programming Language	Ladder Logic, Structured Text
Built-in Functions	PID control
Humidity	5 to 95% (non-condensing)
