ENGINE – Cylinder Head Gasket
11-18
10 mm
10 mm
10 mm
Semi-drying sealant:
THREEBOND 1207D
29
9 {0.9}
Unit: Nm {kgf@m}
3.4 {0.35}
30 {3.1}
22 {2.2}
9 {0.9}
30 {3.1}
32
33
28
27
25
26
24
30
23
21
22
31
78 → 0 → 20 → +90_ → +90_
{8.0 → 0 → 2.0 → +90_ → +90_}
22
22
23
10 mm10 mm

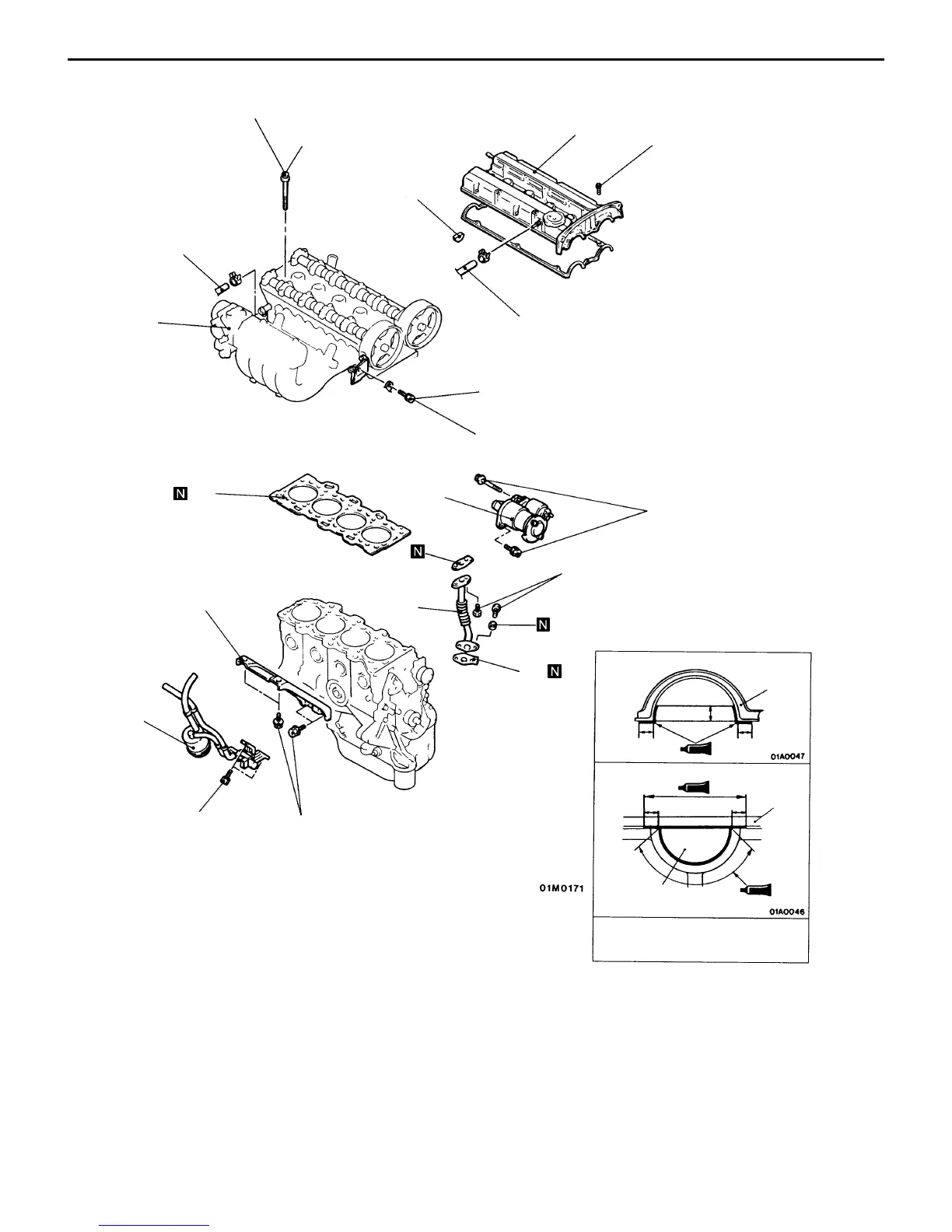

Removal steps
21. PCV hose connection
22. Rocker cover
23. Semi-circular packing
24. Starter
25. Oil return pipe
"CA 26. Oil return pipe gasket
27. Vacuum tank/solenoid valve/vacuum
hose assembly
28. Intake manifold stay
29. Heater hose connection
30. Alternator brace stay mounting bolt
AA""BA 31. Cylinder head bolt
32. Cylinder head assembly
"AA 33. Cylinder head gasket
