ENGINE – Cylinder Head Gasket
11-19
REMOVAL SERVICE POINT
AA" CYLINDER HEAD BOLT REMOVAL

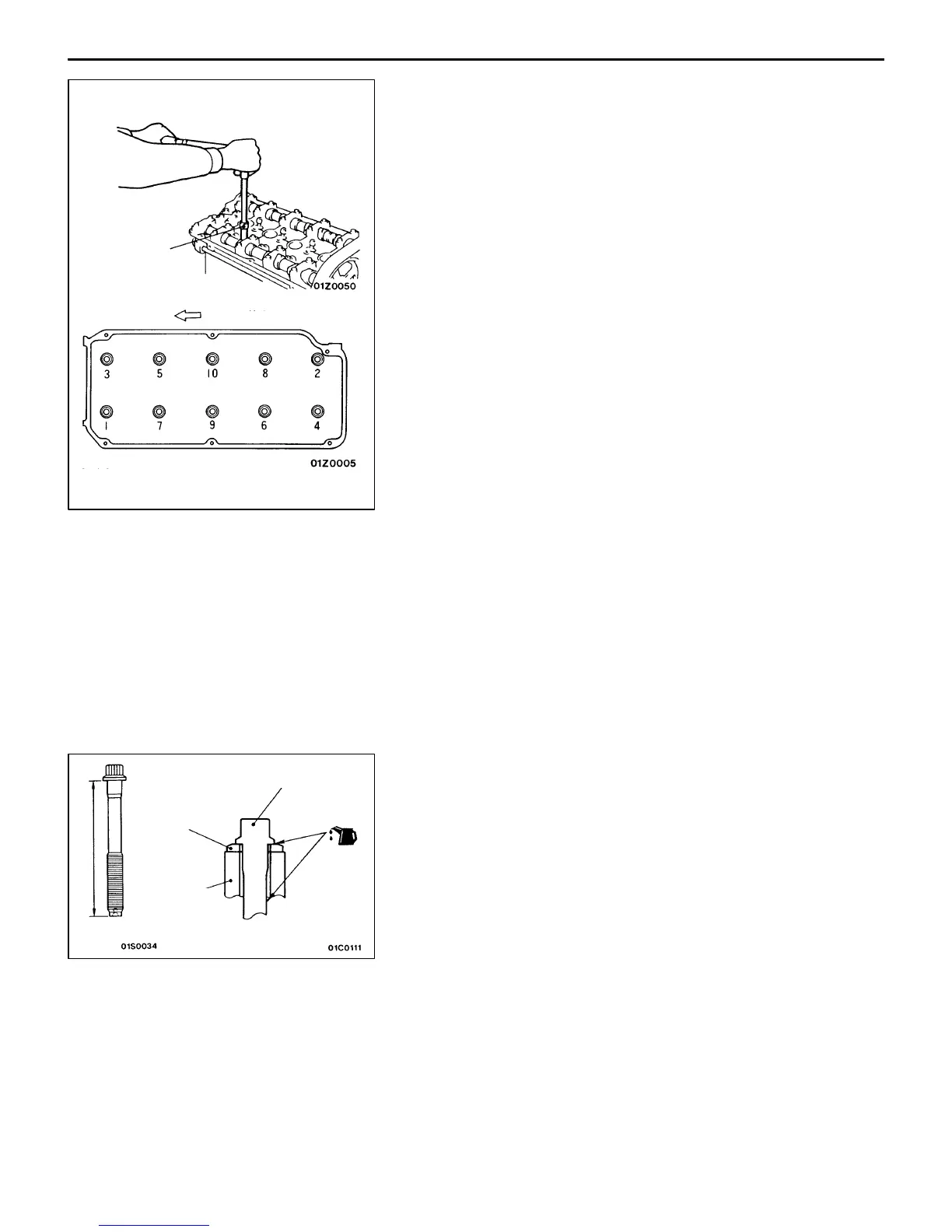

Loosen the bolts in 2 or 3 steps in order of the numbers
shown in the illustration, and remove the cylinder head
assembly.
INSTALLATION SERVICE POINTS
"AA CYLINDER HEAD GASKET INSTALLATION
(1) Wipe off all oil and grease from the gasket mounting
surface.
(2) Install so that the shapes of the cylinder head holes match
the shapes of the respective cylinder head gasket holes.
"BA CYLINDER HEAD BOLT INSTALLATION
(1) When installing the cylinder head bolts, the length below
the head of the bolts should be within the limit.
If it is outside the limit, replace the bolts.
Limit (A): 99.4 mm
(2) Apply a small amount of engine oil to the thread section
and the washer of the cylinder head bolt.
Intake side
MB991654
Exhaust side
Front of engine
Cylinder head bolt
Washer
(Engine
oil)
Cylinder
head
A
