Mitsubishi Lancer Evolution-IV User Manual

CHASSIS ELECTRICAL – Ignition Switch and Immobilizer System
54-19
IGNITION SWITCH AND IMMOBILIZER SYSTEM
Caution: SRS
Before removal of air bag module and clock spring, refer to GROUP 52B – SRS Service Precautions
and Air Bag Module and Clock Spring.

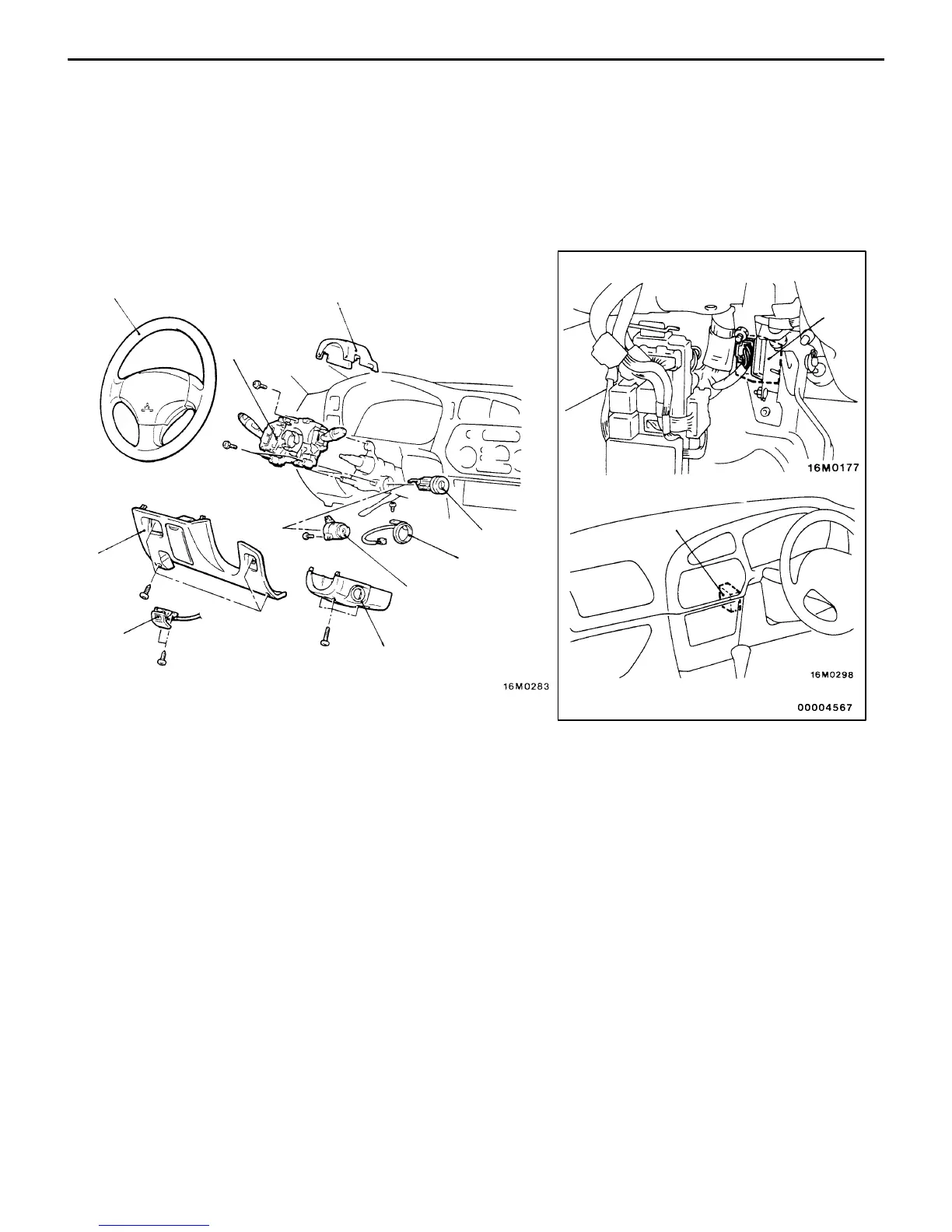

REMOVAL AND INSTALLATION
4
5
8
6
10
9
7
2
1
3
<L.H. drive vehicles>
<R.H. drive vehicles>
3
4
Immobilizer-ECU removal steps
1. Hood lock release handle
2. Driver‘s side lower cover
D Radio and tape player <R.H drive
vehicles>
D Heater control assembly <R.H. drive
vehicles>
3. Immobilizer-ECU
Ignition switch and ignition key
ring antenna removal steps
1. Hood lock release handle
2. Driver‘s side lower cover
4. Steering wheel
5. Column cover, lower
6. Column cover, upper
7. Column switch
8. Ignition key ring antenna
AA" 9. Steering lock cylinder
10. Ignition switch
