CHASSIS ELECTRICAL – Ignition Switch and Immobilizer System
54-20
REMOVAL SERVICE POINTS

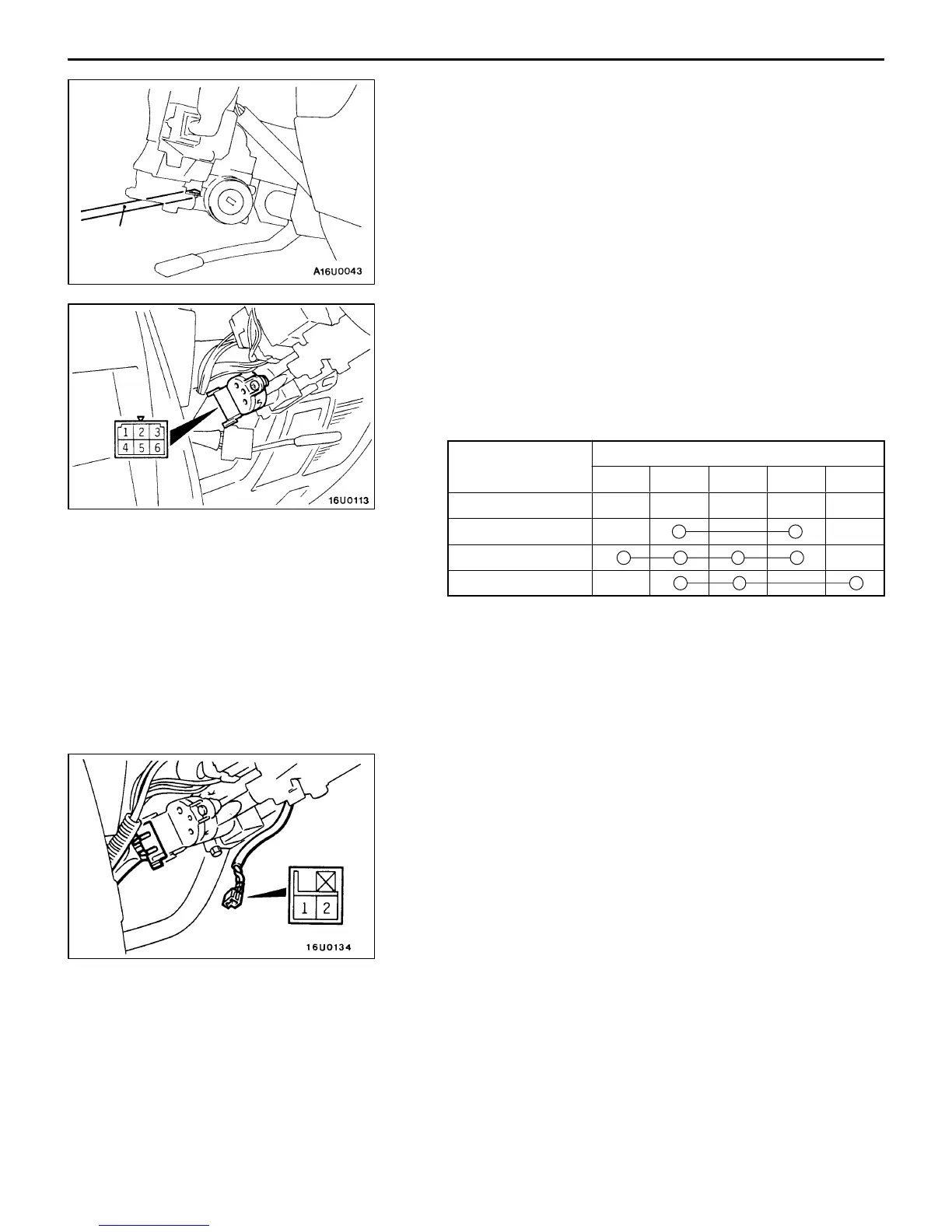

AA" STEERING LOCK CYLINDER REMOVAL
1. Insert the key in the steering lock cylinder and turn it
to the “ACC” position.
2. Using a cross-tip (+) screwdriver (small) or a similar tool,
push the lock pin of the steering lock cylinder inward
and then pull the steering lock cylinder toward you.
INSPECTION
IGNITION SWITCH CONTINUITY CHECK
1. Remove the column cover lower and upper.
2. Disconnect the wiring connector from the ignition switch.
3. Operate the switch, and check the continuity between
the terminals.
I
g
nition ke
y
Terminal No.
Ignition
key
position
1 2 3 5 6
LOCK
ACC
ON
START
IGNITION KEY RING ANTENNA CONTINUITY CHECK
Use a circuit tester to check the continuity between the
terminals.
Cross-tip (+)
screwdriver
