CHASSIS ELECTRICAL – Headlamp
54-37

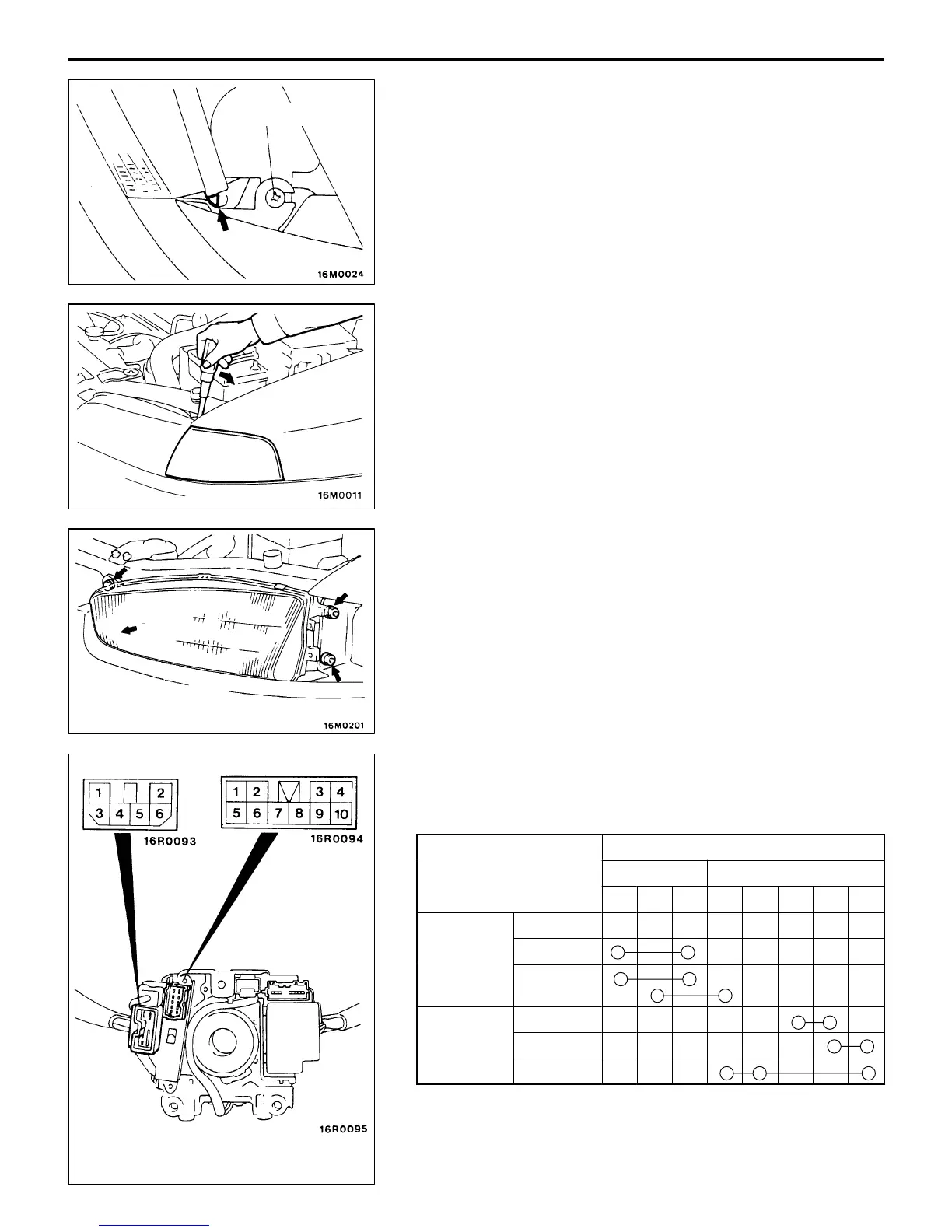

REMOVAL SERVICE POINT
AA" FRONT TURN-SIGNAL LAMP REMOVAL
1. Loosen the tapping screw connecting the headlamp to
the front turn-signal lamp. Put a screwdriver in the space
produced between the headlmap and the front turn-signal
lamp.
2. Prying the screwdriver in the direction shown, thrust the
front turn-signal lamp in the direction of the vehicle.
3. Unplug the connector and remove the front turn-signal
lamp.
INSTALLATION SERVICE POINT
"AA HEADLAMP INSTALLATION
Tighten attaching bolts and nuts in the order of A, B, C and
D.
INSPECTION
LIGHTING SWITCH, DIMMER/PASSING SWITCH
CONTINUITY CHECK
Switch position Terminal No.
Connector A Connector B
5 6 7 1 2 3 4 6
LIGHTING
OFF
SWITCH
TAIL
HEAD
DIMMER/
LOWER
PASSING
SWITCH
UPPER
PASSING
Tapping screw
A
D
B
C
Connector A Connector B
