BODY – Sunroof
42-16

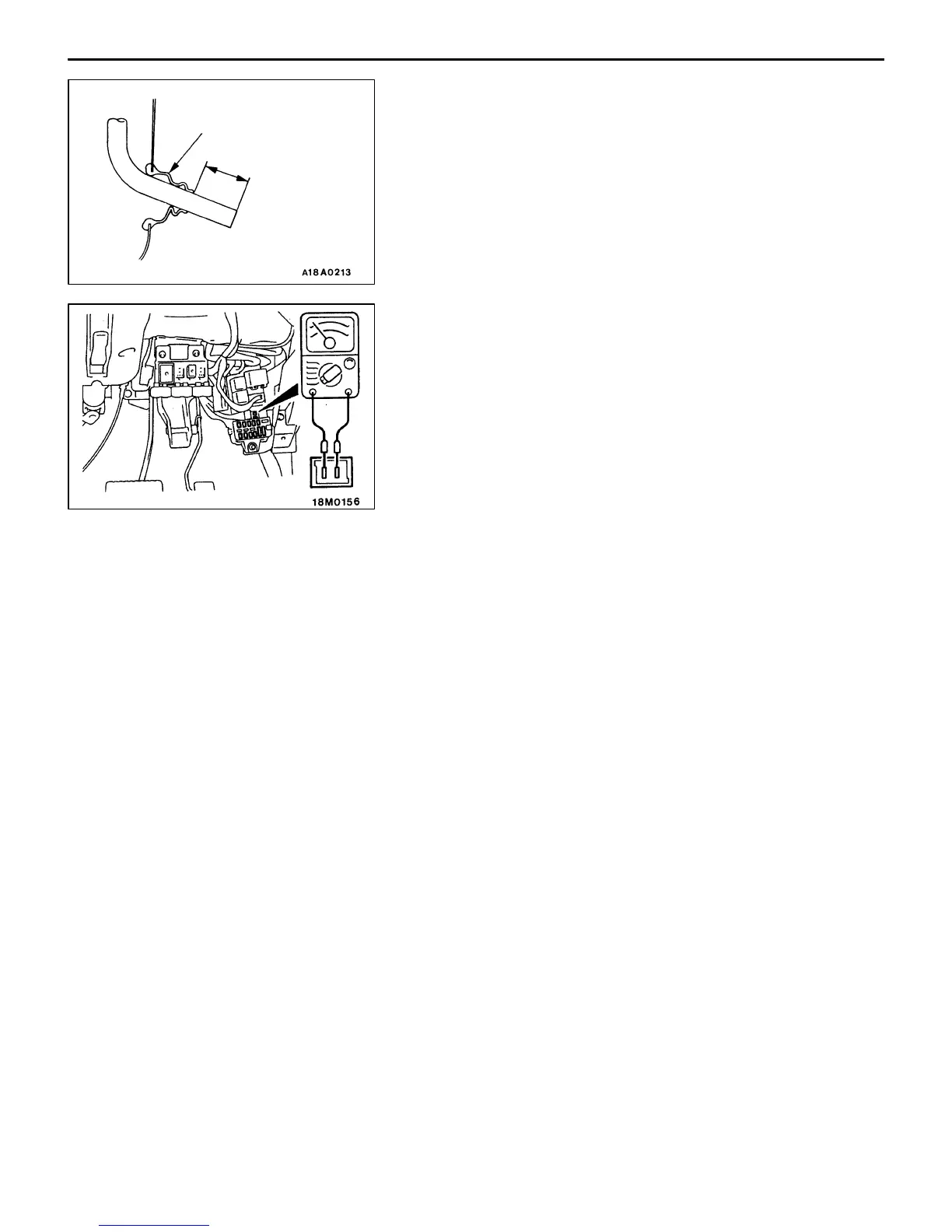

3. Make the drain hose protrusion from the grommet as
shown in the illustration.
INSPECTION
ROOF LID GLASS OPERATION CURRENT CHECK
1. Remove the sunroof fuse and connect a circuit analyser
as shown in the illustration.
2. Press the sunroof switch to the ON position, and then
measure the operation current in the intervals between
the points when the sunroof starts to operate, when it
is fully open, when it is fully closed and when it is fully
tilted up.
Standard value: 7 A or less (at 20_C)
3. If the operation current is outside the standard value,
check the following points.
D Installation condition, warping or jamming of sunroof
assembly
D Sticking of drive cable
D Tilt of roof lid glass
Grommet
20–30 mm
