BODY – Sunroof
42-17

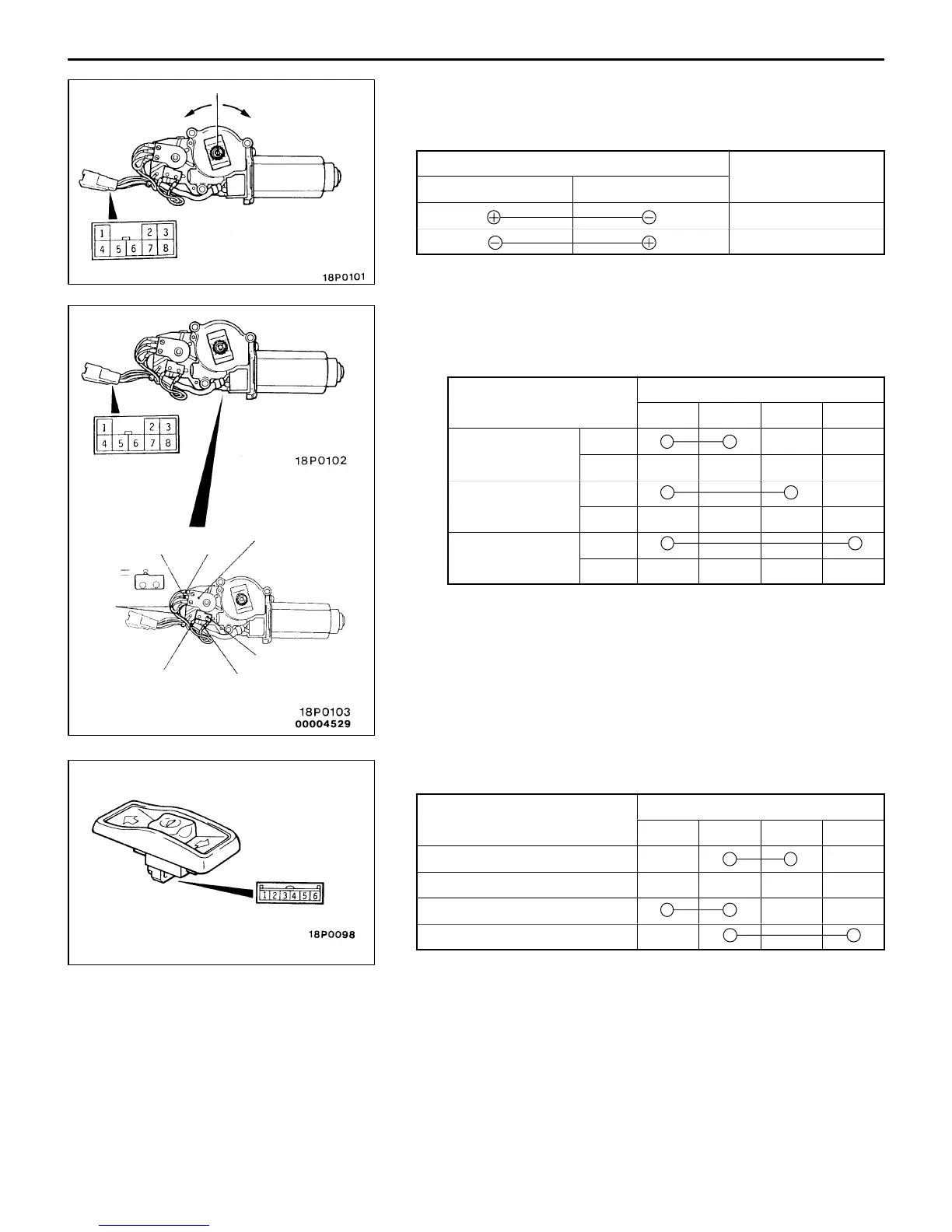

SUNROOF MOTOR CHECK
Check the direction of rotation of the drive gear when the
battery is connected to the connector.
Battery connection terminal Drive gear rotation
di ti
1 2
direction
Left
Right
LIMIT SWITCH CONTINUITY CHECK
1. Remove the limit switches from the sunroof motor, and
then check the operation of the limit switches.
Switch position Terminal No.
4 5 6 7
Limit switch 1 ON
OFF
Limit switch 2 ON
OFF
Limit switch 3 ON
OFF
2. Check the identification colours. Then install the limit
switches as shown in the illustration.
SUNROOF SWITCH CONTINUITY CHECK
Switch position Terminal No.
3 4 5 6
Slide open
Off
Tilt up
Slide close, Tilt down
Left rotation
Drive gear
Right rotation
(Red)
(White)
Limit switch 2, 3
ON
OFF
(Black)
(Black)
(Blue)
Limit switch 1
