BODY – Sunroof
42-18

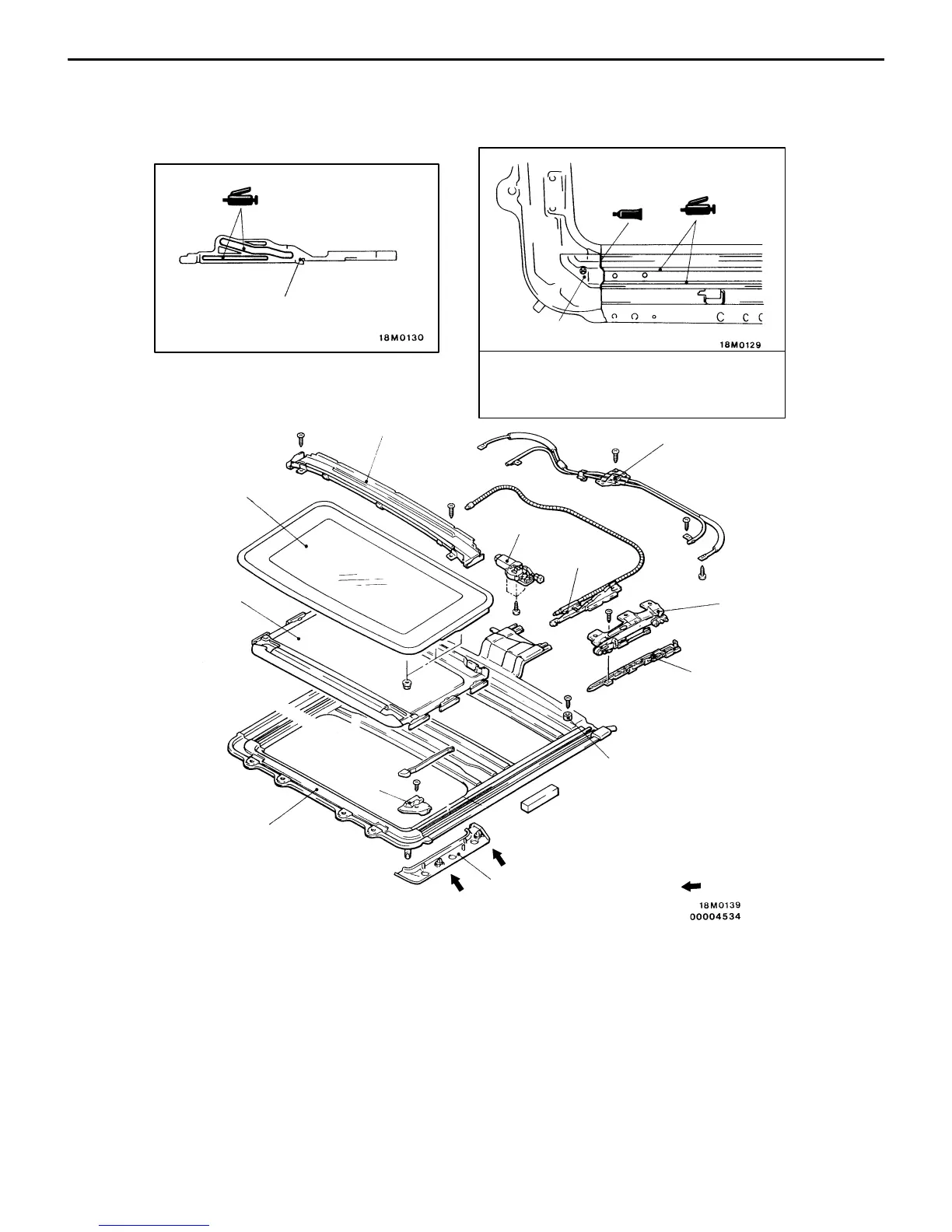

DISASSEMBLY AND REASSEMBLY
Sealant:
3M ATD Part No.8531 or 3M Part
No.8646, or equivalent
1
2
3
4
5
6
7
8
9
10
11
12
11
10
NOTE
:Clip position
Disassembly steps
1. Side decoration cover
(Refer to P.42-15.)
2. Roof lid glass assembly
3. Sunroof motor
4. Drip rail assembly
5. Sunshade assembly
6. Cushion (B) assembly
7. Drive unit assembly
8. Decoration link
9. Guide (A) assembly
10. Slider assembly
11. Rail cover assembly
12. Frame sub assembly
