ENGINE – Crankshaft and Flywheel
11-69

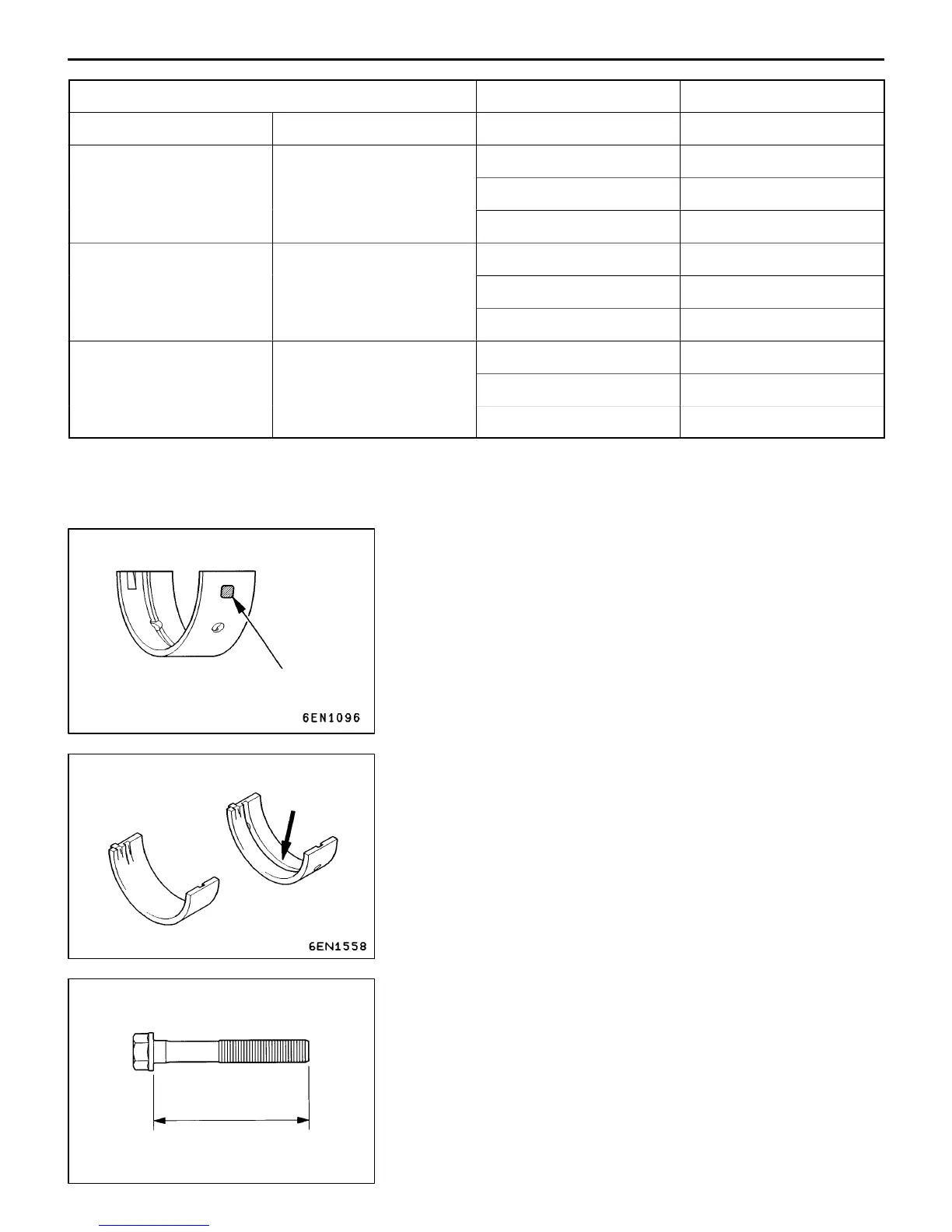

Crankshaft journal outside diameter Cylinder block bearing bore Crankshaft bearing
Identification color Size mm Identification mark Identification mark or color
Yellow 56.994 – 57.000 0 0 or Black
1 1 or Green
2 2 or Yellow
None 56.988 – 56.994 0 1 or Green
1 2 or Yellow
2 3 or None
White 56.982 – 56.988 0 2 or Yellow
1 3 or None
2 4 or Blue
For example, if the crankshaft journal outside diameter
ID color is “yellow” and cylinder block bearing bore ID
mark is “1”, select a bearing whose ID mark is “1”.
If there is no ID color paint on the crankshaft, measure
the journal outside diameter and select a bearing
appropriate for the measured value.
(2) Install the bearings having an oil groove to the cylinder
block.
(3) Install the bearings having no oil groove to the bearing
cap.
"CA BEARING CAP / BEARING CAP BOLT
INSTALLATION
(1) Install the bearing caps so the arrow points to the timing
belt side.
(2) Before installing the bearing cap bolts, check that the
shank length of each bolt meets the limit. If the limit is
exceeded, replace the bolt.
Limit: Max. 71.1 mm
(3) Apply engine oil to the threaded portion and bearing
surface of the bolt.
Crankshaft bearing size
identification mark or color
Identification
mark or color
Upper
Groove
Lower
9EN0477
Shank length
