8 - 9
8 -
9
MELSEC-Q
8 ONLINE MODULE
CHANGE

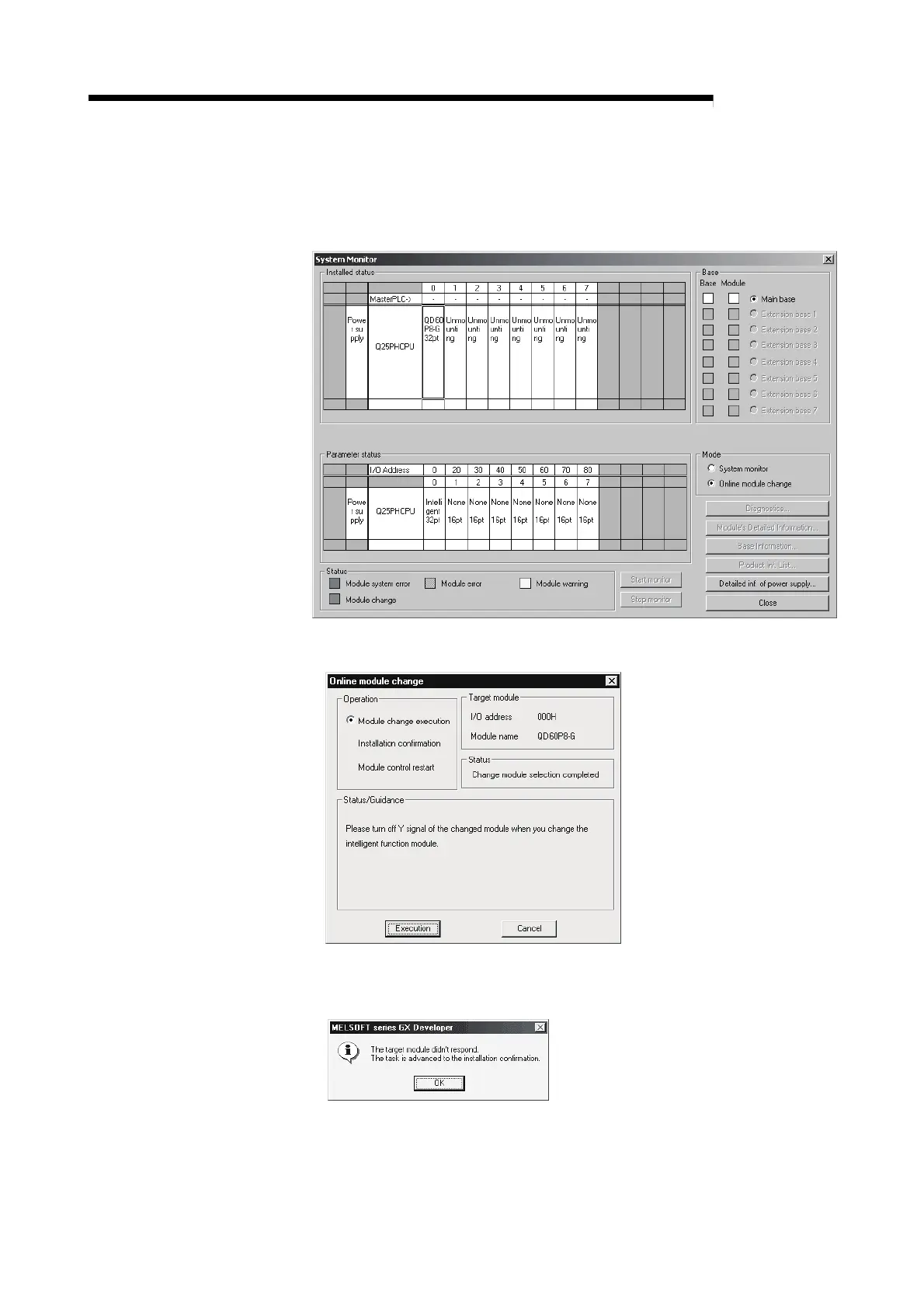

(2)
Dismounti
ng of module
(a)
Af
ter cho
osing [D
iagn
osis] -
[On
line m
odule ch
ange]
on GX De
veloper
to
enter t
he "O
nline
module c
han
ge" m
ode, dou
ble-c
lick
the m
odule to
be
change
d onl
ine to
displa
y the
"Online
m
odule cha
nge" s
creen
.
(b)
Clic
k the "
Execut
ion" b
utton
to enab
le a m
odule c
hange
.
If th
e follow
ing er
ror screen
appears,
click th
e [OK] but
ton and pe
rform the
operat
ion in (2)
(c) and la
ter.
103
105
Table of Contents
Default Chapter
7
Revisions
7
Table of Contents
8
Using this Manual
11
Compliance with the EMC and Low Voltage Directives
12
Generic Terms and Abbreviations
12
Component List
13
1 Overview
15
Features
15
2 System Configuration
19
Applicable Systems
19
About Use of the QD60P8-G with the Q12PRH/Q25PRHCPU
22
How to Check the Function Version and the Software Version
23
3 Specifications
25
Performance Specifications
25
List of Functions
27
I/O Signals for Programmable Controller CPU
28
List of I/O Signals
28
Details of I/O Signals
29
Buffer Memory
32
List of Buffer Memory Assignments
32
Details of Buffer Memory
33
Interface with External Devices
38
4 Setup and Procedure before Operation
39
Handling Precautions
39
Procedure before Operation
40
Part Identification Nomenclature
41
Wiring
42
Wiring Precautions
42
Wiring Example
44
Switch Setting for Intelligent Function Module
46
5 Details and Setting of Functions
49
Count Operation
49
Pulse Input Method
49
Input Pulse Count Operation
50
Count Value Reading
51
Count Cycle Changing
52
Count Type Selection
53
Linear Counter Operation
53
Ring Counter Operation
55
Input Pulse Value
57
Comparison Output Function
58
Counter Reset Function
60
Pre-Scale Function
61
Movement Averaging Function
62
Alarm Output Function
63
Count Response Delay Time
65
6 UTILITY PACKAGE (GX Configurator-CT)
66
Utility Package Functions
66
Installing and Uninstalling the Utility Package
67
Handling Precautions
67
Operating Environment
69
Utility Package Operation
71
Common Utility Package Operations
71
Operation Overview
73
Starting the Intelligent Function Module Utility
75
Initial Setting
77
Auto Refresh Setting
79
Monitoring/Test
81
7 Programming
84
Programming Procedure
85
For Use in Normal System Configuration
86
Program Example
88
For Use on Remote I/O Network
90
Program Example
92
8 Online Module Change
96
Online Module Change Conditions
97
Online Module Change Operations
98
Online Module Change Procedure
99
GX Configurator-CT was Used for Initial Setting
99
Sequence Program was Used for Initial Setting
103
Precautions for Online Module Change
108
9 Troubleshooting
109
Confirming the Error Definitions Using System Monitor of GX Developer
111
Error Details
113
List of Errors
116
Appendix
120
Appendix 1 External Dimension Diagram
120
Index
122
