9 TROUBLESHOOTING
9.1.1 Confirming the error definitions using system monitor of GX Developer
Choosing Module's detailed information in the system monitor of GX Developer allows
you to confirm the error code.

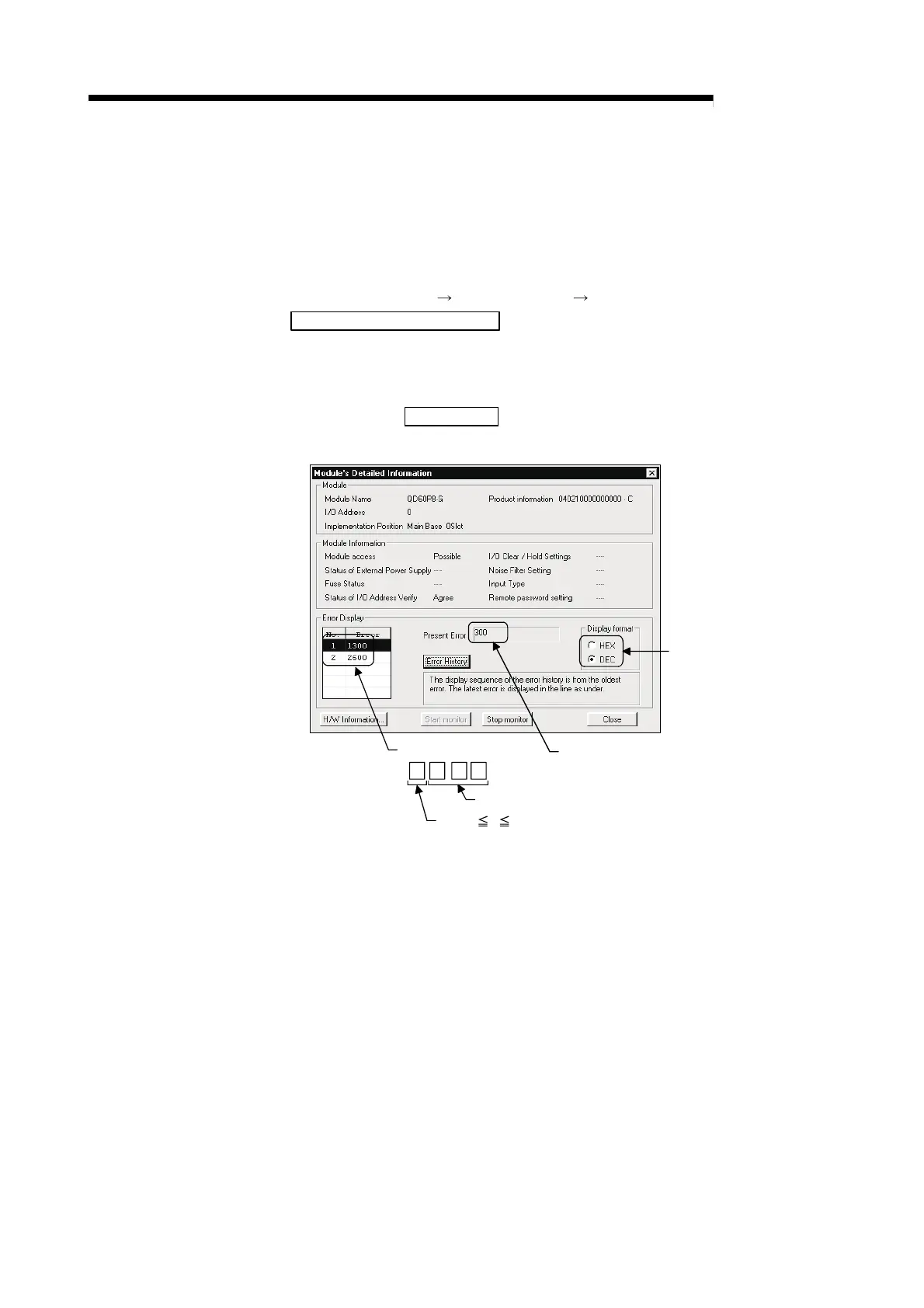

(1) Operation of GX Developer
Choose [Diagnostics] [System monitor] "QD60P8-G module" and choose
Module's Detailed Information
.
(2) Confirmation of error code
The error code appears in the latest error code field.
(By pressing the Error History
button, the definition shown as the latest error
code appears at No. 1.)
[Error display details]
Error code of CHn
CHn (1 n 8)
[Present Error]
Means error code 300
"Movement averaging setting range outside error".
[Display format]
Select "Decimal".
(The error codes indicated in
"Section 9.3 List of errors"
are in decimal.)
