Mitsubishi QD60P8-G User Manual

6 - 12 6 - 12
MELSEC-Q
6 UTILITY PACKAGE (GX Configurator-CT)
6.4 Initial Setting
[Purpose]
Make initial setting for operating the QD60P8-G for each channel.
There are the following setting items as the initial setting data (buffer memory).
• Comparison output selection
• Comparison output setting value
• Movement averaging processing selection
• Number of movement averaging processing
• Pre-scale function selection
• Pre-scale setting value
• Alarm output selection
• Alarm output setting value upper/upper limit
• Alarm output setting value upper/lower limit
• Alarm output setting value lower/upper limit
• Alarm output setting value lower/lower limit
• Count cycle change function selection
• Count cycle setting value
This initial setting makes sequence program setting unnecessary.
For more information on the setting details, refer to Section 3.4.2.
[Operating procedure]
"Start I/O No.*" "Module type" "Module model name" Initial setting
* Enter the start I/O No. in hexadecimal.

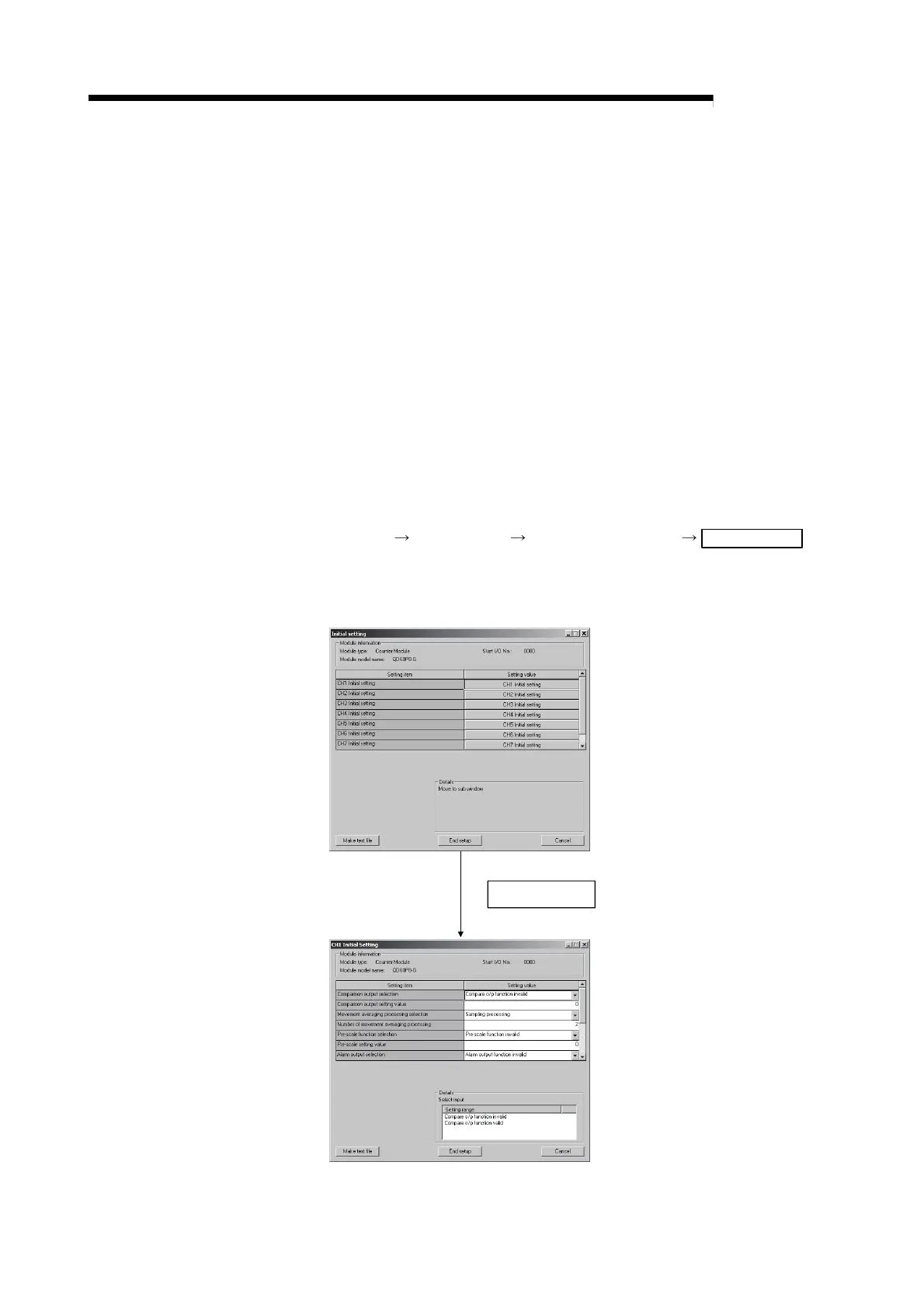

[Setting screen]
Move to sub window
CH1 Initial Setting
