7 - 2 7 - 2
MELSEC-Q
7 PROGRAMMING

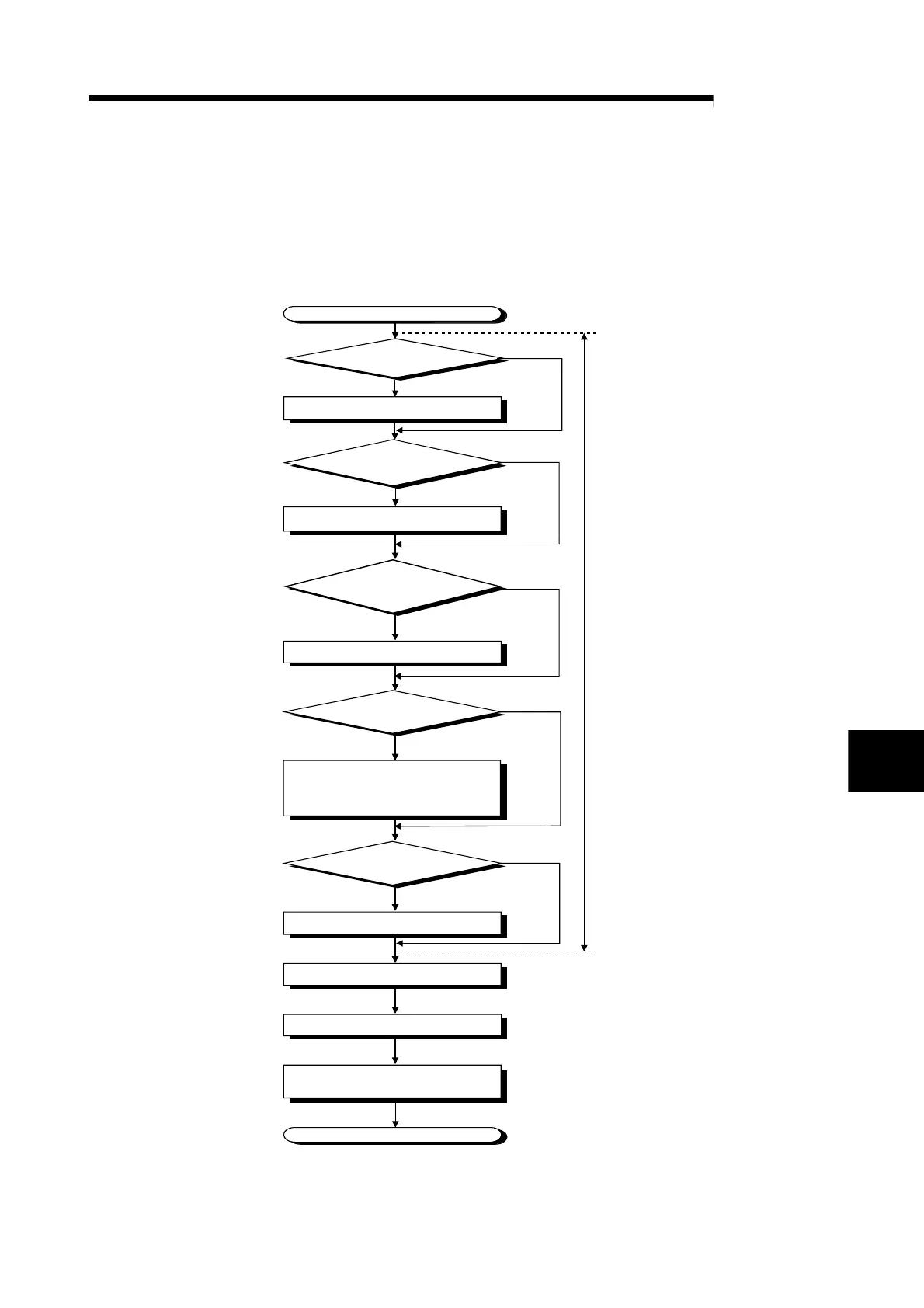

7.1 Programming Procedure
This section explains the programming procedure for the QD60P8-G.
In the following procedure, create the program that performs the initial setting of the
QD60P8-G, then turns ON the operating condition setting request flag (Y1), and turns
ON the count enable (Y18 to Y1F) to start count operation.
End
Comparison output selection setting
Comparison output setting value setting
Alarm output selection setting
Alarm output setting value upper/upper limit setting
Alarm output setting value upper/lower limit setting
Alarm output setting value lower/upper limit setting
Alarm output setting value lower/lower limit setting
YES
NO
Movement averaging processing selection setting
Number of movement averaging processing setting
YES
NO
Initial setting
Pre-scale function selection setting
Pre-scale setting value setting
Count cycle change function selection setting
Count cycle setting value setting
NO
Start
YES
YES
YES
NO
NO
Do you use the movement
averaging processing function?
Do you use the pre-scale function?
Do you use the alarm output function?
Do you use the count cycle
change function?
Turn ON the count enable (Y18 to Y1F).
Turn ON the operating condition
setting request flag (Y1).
Read the sampling pulse number,
accumulating count value and input pulse value.
Do you use the comparison
output function?
7
