3 - 1 3 - 1
MELSEC-Q
3 SPECIFICATIONS
CHAPTER 3 SPECIFICATIONS
This chapter explains the performance specifications of the QD60P8-G, the I/O signals
for the programmable controller CPU, and the specifications of the buffer memory.
For the general specifications of the QD60P8-G, refer to the User's Manual of the used
CPU module.
3.1 Performance Specifications

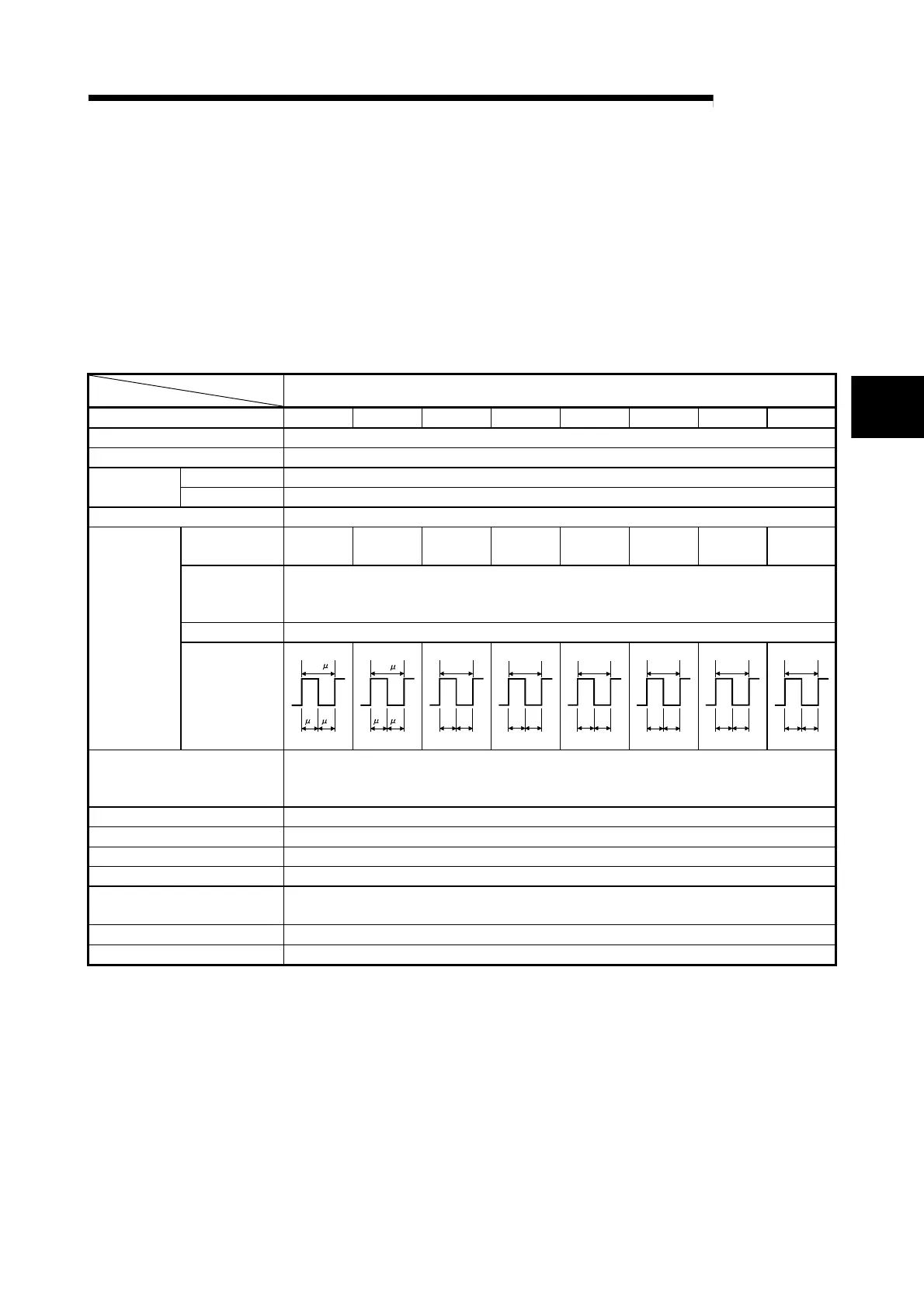

The following table indicates the performance specifications of the QD60P8-G.
Model name
Item
QD60P8-G
Counting speed switch settings*1 30kpps 10kpps 1kpps 100pps 50pps 10pps 1pps 0.1pps
Number of I/O occupied points 32 points (I/O assignment: 32 points for intelligent function module)
Number of channels 8 channels
Phase 1-phase input Count input
signal
Signal level 5VDC/12 to 24VDC
Input derating Refer to the derating chart (Next page)
Counting speed
(Max.) *2
30kpps 10kpps 1kpps 100pps 50pps 10pps 1pps 0.1pps
Counting range
Sampling pulse number
Accumulating count value
Input pulse value
: 16-bit binary (0 to 32767)
: 32-bit binary (0 to 99999999)
: 32-bit binary (0 to 2147483647)
Count type Linear counter method, ring counter method
Counter
Minimum count
pulse width
(Duty ratio 50%)
33.4 s
16.7
s
16.7
s
50
s
50
s
100 s
0.5
ms
0.5
ms
1ms
5
ms
5
ms
10ms
10
ms
10
ms
20ms
50
ms
50
ms
100ms
0.5
s
0.5
s
1s
5s
5s
10s
Dielectric withstand voltage
For 1 min at 1500VAC between AC external connecting terminals and general grounding
For 1 min at 500VAC between DC external connecting terminals and general grounding
For 1 min at 1780VAC between channels
Insulation resistance 5MΩ or more at 500VDC between AC external connecting terminals and general grounding
Connected terminal 18 points terminal block
Applicable wire size
0.3 to 0.75mm
2
Applicable solderless terminals R1.25-3 (A solderless terminals with sleeves cannot be used.)
Internal current consumption
(5VDC)
0.58A
Weight 0.17kg
External dimensions 27.4 (1.08) (W) X 98 (3.86) (H) X 90 (3.54) (D) [mm (in.)]
*1: To change the counting speed, use the intelligent function module switch.
(For details, refer to "Section 4.5 Switch setting for intelligent function module".)
*2: The counting speed is affected by the rise/fall time of pulses. The countable counting speeds
are indicated in the table on the next page. Note that counting the pulses of long rise/fall time
may result in miscounting.
3
