6 - 14 6 - 14
MELSEC-Q
6 UTILITY PACKAGE (GX Configurator-CT)
6.5 Auto Refresh Setting
[Purpose]
Set the QD60P8-G buffer memory to be automatically refreshed, for each
channel.
There are the following buffer memory items to be automatically refreshed for
each channel.
• Sampling pulse number
• Comparison output selection
• Comparison output setting value
• Movement averaging processing selection
• Number of movement averaging processing
• Pre-scale function selection
• Pre-scale setting value
• Accumulating count value
• Input pulse value
• Overflow detection flag
• Counter reset request
• Carry over detection flag
• Carry over reset request
• Error code
• Alarm output selection
• Alarm output flag
• Alarm output setting value upper/upper limit
• Alarm output setting value upper/lower limit
• Alarm output setting value lower/upper limit
• Alarm output setting value lower/lower limit
• Count cycle change function selection
• Count cycle setting value
These auto refresh settings eliminate the need for reading by a sequence
program.
[Operating procedure]
"Start I/O No.*" "Module type" "Module model name" Auto refresh
* Enter the start I/O No. in hexadecimal.

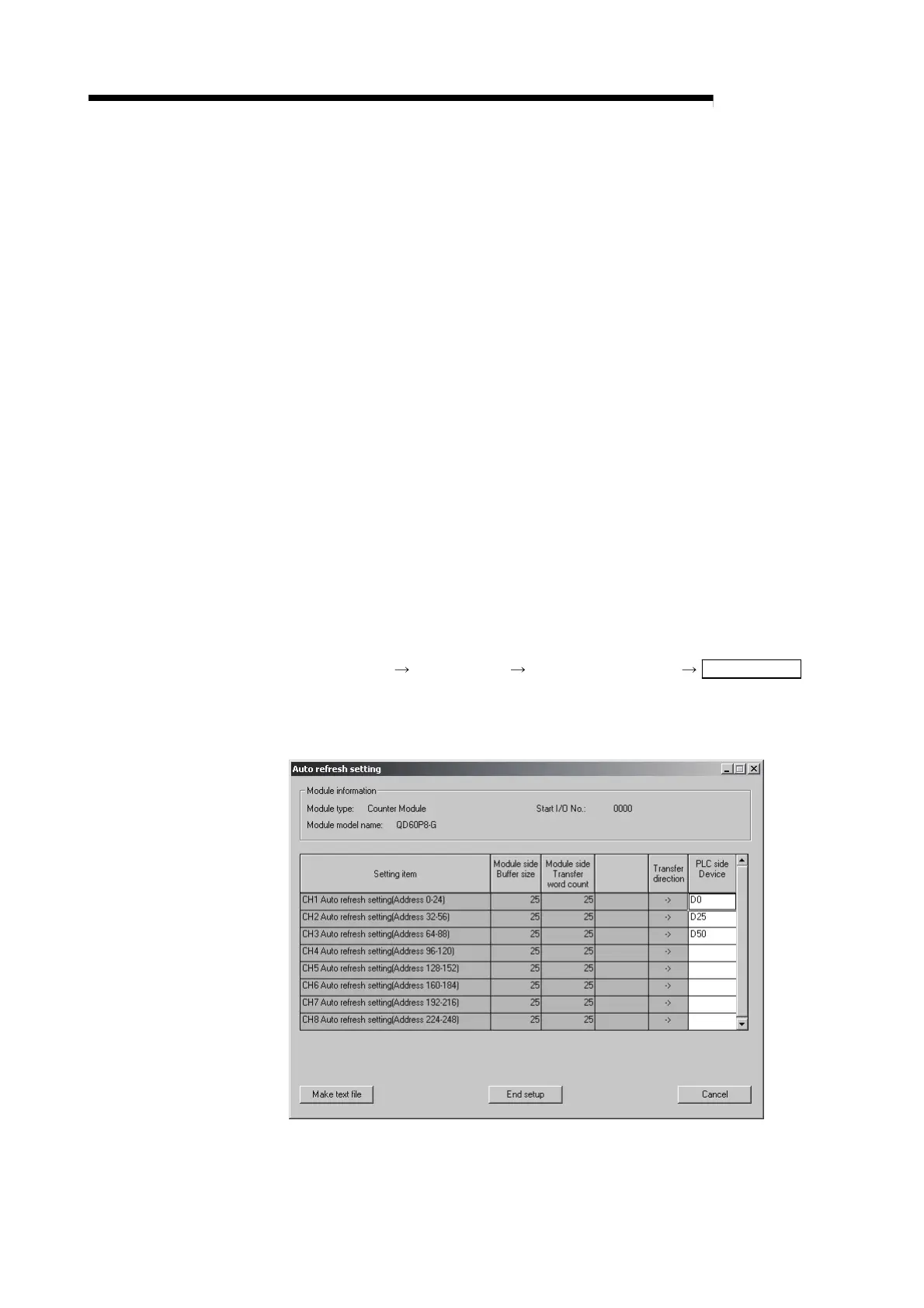

[Setting screen]
