Mitsubishi QD60P8-G User Manual

7 - 5 7 - 5
MELSEC-Q
7 PROGRAMMING

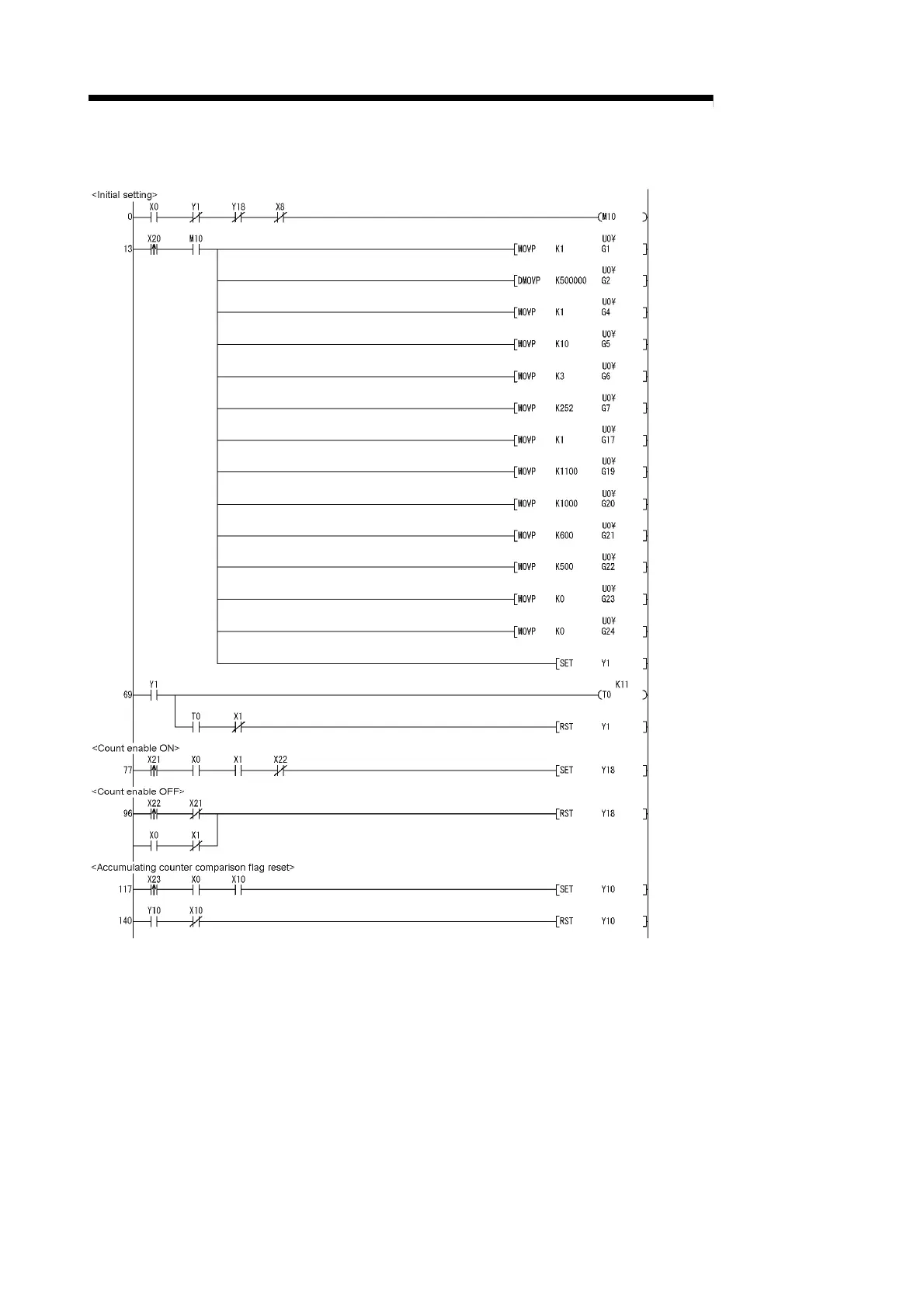

7.2.1 Program example
Initial setting start
Comparison output selection
Comparison output setting value
Movement averaging
processing selection
Number of movement
averaging processing
Pre-scale function selection
Pre-scale setting value
Alarm output selection
Alarm output setting value
upper/upper limit
Alarm output setting value
upper/lower limit
Alarm output setting value
lower/upper limit
Alarm output setting value
lower/lower limit
Count cycle change
function selection
Count cycle setting value
Turn ON the operating condition
setting request flag (Y1)
Turn ON the count enable (Y18)
Turn OFF the operating condition
setting request flag (Y1)
Turn OFF the count enable (Y18)
Turn ON the comparison signal
reset request (Y10)
Turn ON the operating condition
setting request flag (Y1) for 11m
s
Turn OFF the comparison signal
reset request (Y10)
