3 SPECIFICATIONS

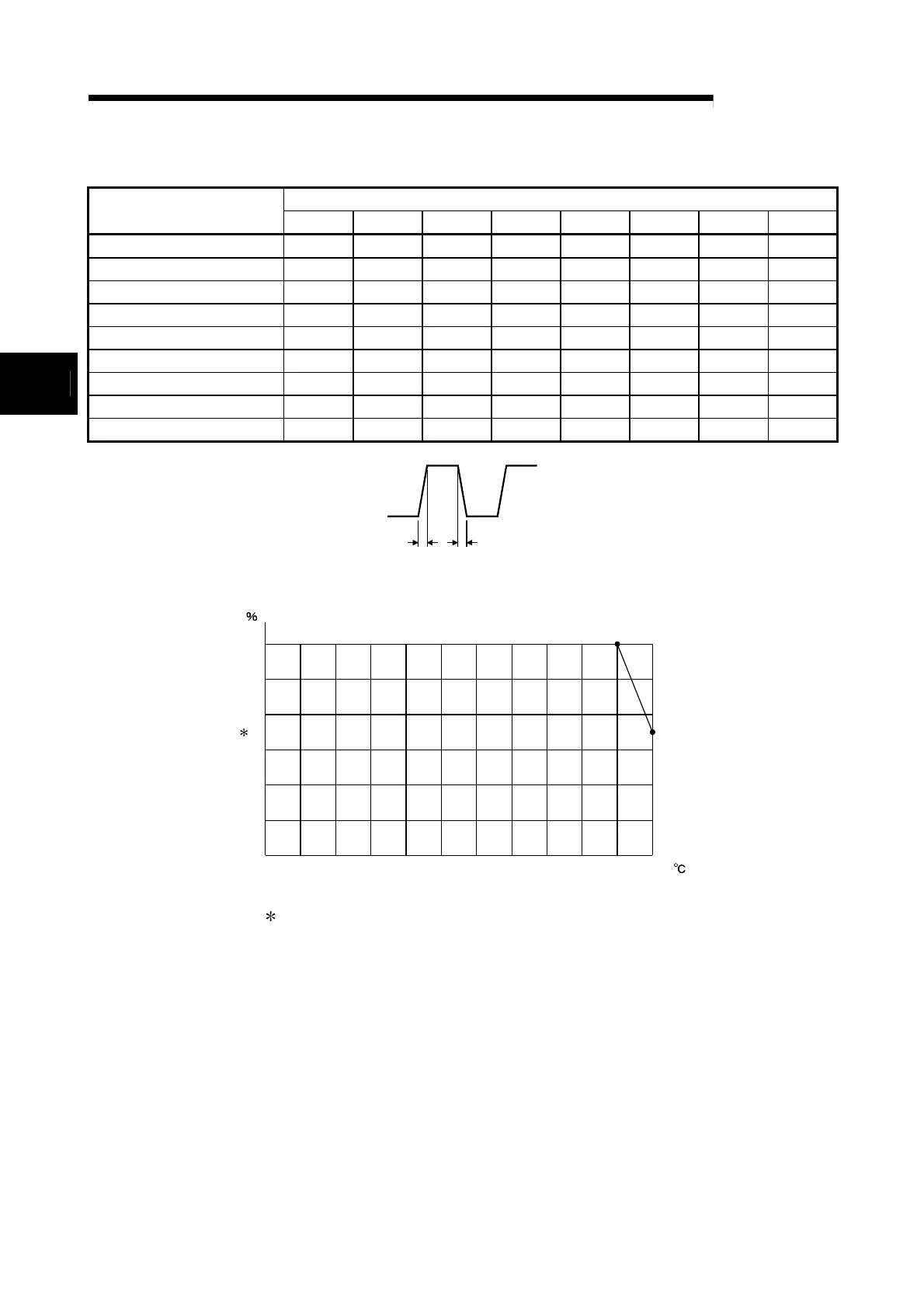

<Rise/Fall time and the corresponding counting speed switch settings>
Counting speed switch settings
Rise/Fall Time
30kpps 10kpps 1kpps 100pps 50pps 10pps 1pps 0.1pps
t = 8.4µs or less 30kpps 10kpps 1kpps 100pps 50pps 10pps 1pps 0.1pps
t = 25µs or less 10kpps 10kpps 1kpps 100pps 50pps 10pps 1pps 0.1pps
t = 250µs or less - 1kpps 1kpps 100pps 50pps 10pps 1pps 0.1pps
t = 2.5ms or less - - 100pps 100pps 50pps 10pps 1pps 0.1pps
t = 5ms or less - - - 50pps 50pps 10pps 1pps 0.1pps
t = 25ms or less - - - - 10pps 10pps 1pps 0.1pps
t = 250ms or less - - - - - 1pps 1pps 0.1pps
t = 2.5s or less - - - - - - 0.1pps 0.1pps
t = 5s - - - - - - - 0.05pps
tt
<Derating Chart>
( )
( )
40
0
ON
ratio
Ambient temparature
30VD
C
50
60
70
80
90
100
10 20 30 40 50
55
3
3: "ON" indicates the status where voltage is applied
to pulse input terminals.
