4 - 5 4 - 5
MELSEC-Q
4 SETUP AND PROCEDURE BEFORE OPERATION
(6) To comply with the EMC Directive and Low-Voltage Directive, always ground the
QD60P8-G to the control box using shielded twisted pair cables and AD75CK
cable clamping (Mitsubishi Electric make).
Inside control box
QD60P8-G
AD75CK
2
0cm (7.88 inch)
t
o 30cm (11.82 inch)

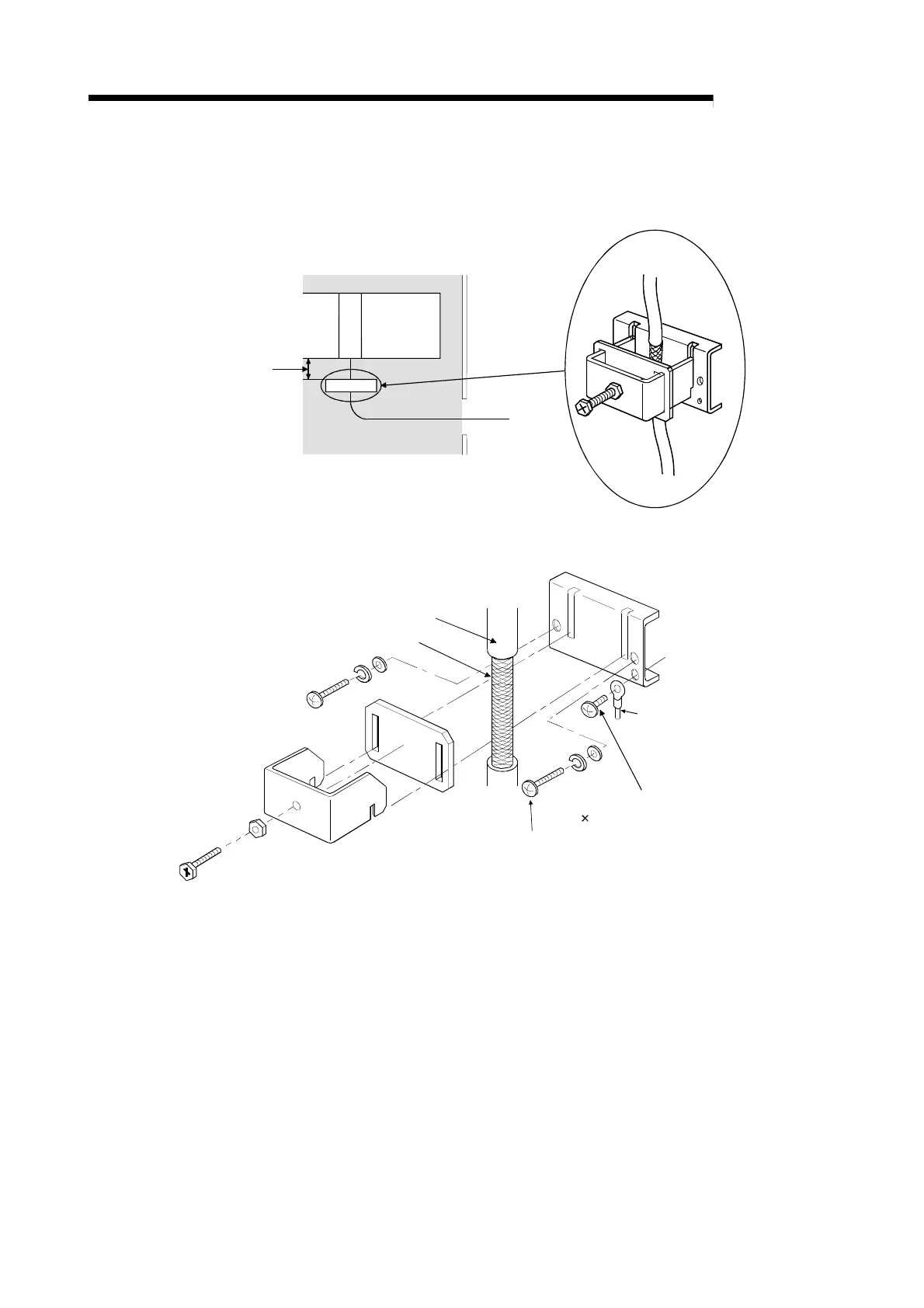

[How to ground shielded twisted pair cable using AD75CK]
Shield cable
Shield
Installation screw to control box (M4 screw)
Ground terminal
Ground terminal installation screw
(M4 8 screw)
Using the AD75CK, you can tie four cables of about 7mm outside diameter
together for grounding.
(For details, refer to the AD75CK-type Cable Clamping Instruction Manual<IB-
68682>.)
