6 - 3 6 - 3
MELSEC-Q
6 UTILITY PACKAGE (GX Configurator-CT)
(6) Number of parameters that can be set in GX Configurator-CT
When multiple intelligent function modules are mounted, the number of
parameter settings must not exceed the following limit.
Maximum number of parameter settings When intelligent function modules are installed
to:
Initial setting Auto refresh setting
Q00J/Q00/Q01CPU 512 256
Q02/Q02H/Q06H/Q12H/Q25HCPU 512 256
Q02PH/Q06PH/Q12PH/Q25PHCPU 512 256
Q12PRH/Q25PRHCPU 512 256
Q02UCPU 2048 1024
Q03UD/Q04UDH/Q06UDH/Q13UDH/
Q26UDH/Q03UDE/Q04UDEH/Q06UDEH/
Q13UDEH/Q26UDEHCPU
4096 2048
MELSECNET/H remote I/O station 512 256
For example, if multiple intelligent function modules are installed to the
MELSECNET/H remote I/O station, configure the settings in GX Configurator so
that the number of parameter settings for all the intelligent function modules does
not exceed the limit of the MELSECNET/H remote I/O station. Calculate the total
number of parameter settings separately for the initial setting and for the auto
refresh setting.
The number of parameters that can be set for one module in GX Configurator-CT
is as shown below.
Target Module Initial setting Auto refresh setting
QD60P8-G 24 (Fixed) 8 (Max.)

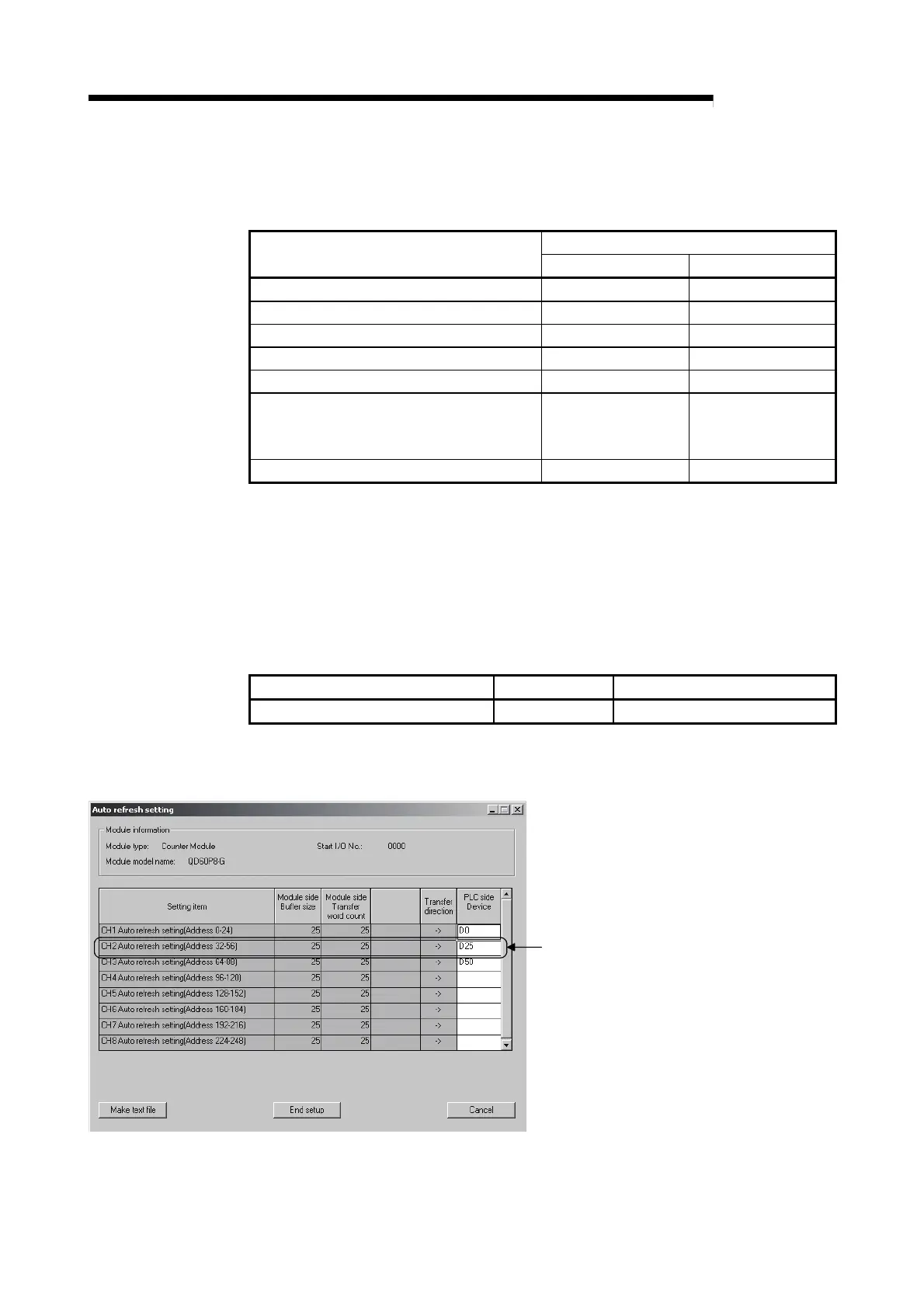

(Example)
Counting the number of parameter settings in Auto refresh setting
This one row is counted as one setting.
Blank rows are not counted.
Count up all the setting items on this screen,and add
the total to the number of settings for other intelligent
function modules to get a grand total.
To Next Page
