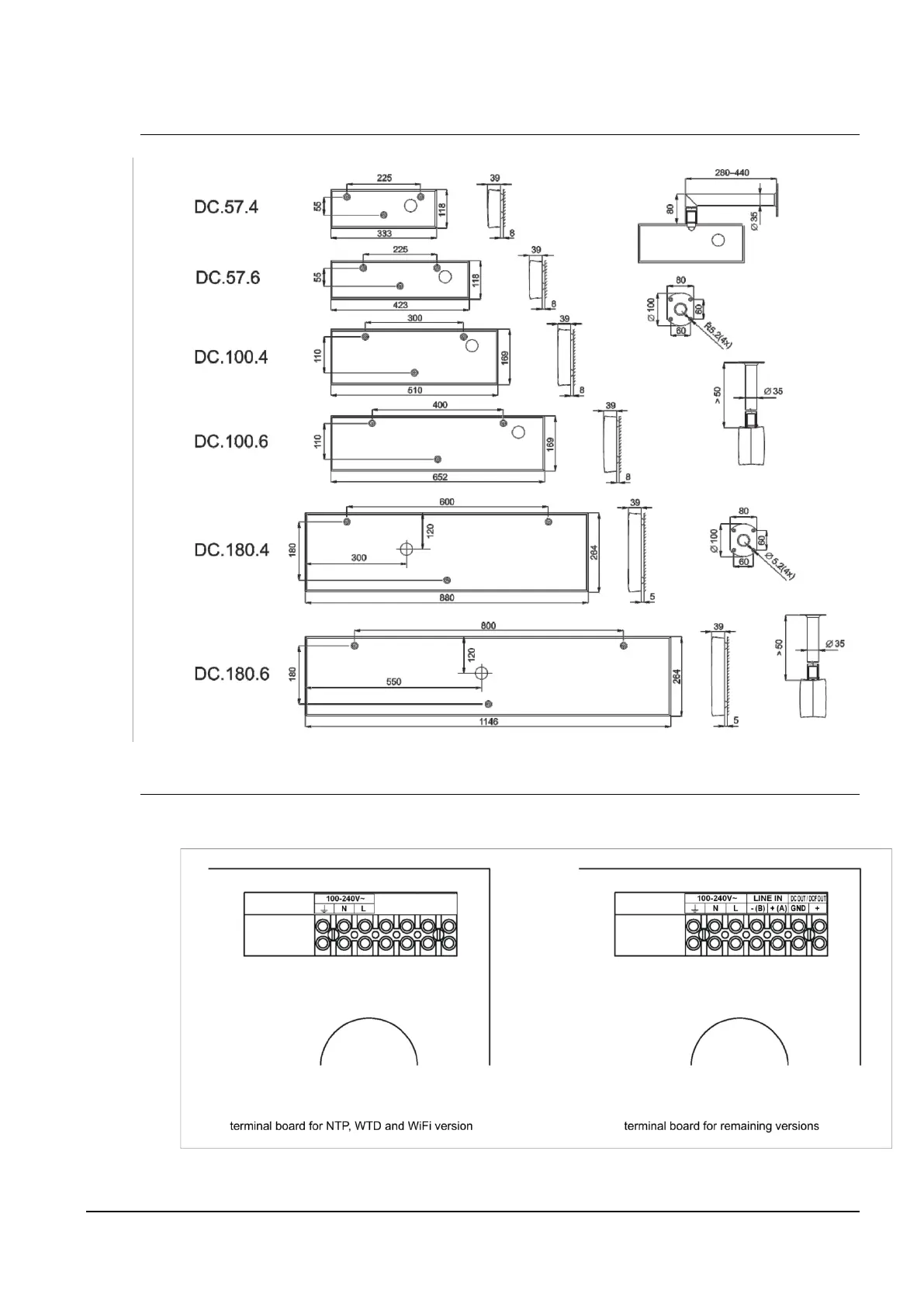

2.4 Assembly diagram

2.5 Connecting terminal block

Note: For PoE version is Ethernet cable plugged directly into the connector on the control board (this version is without

terminal block)
