Mobatime DC.57.4 - Cable Connection Guide

52 pages

Save Page as PDF

To Next Page

To Previous Page

2.9 Connection of the cable ends

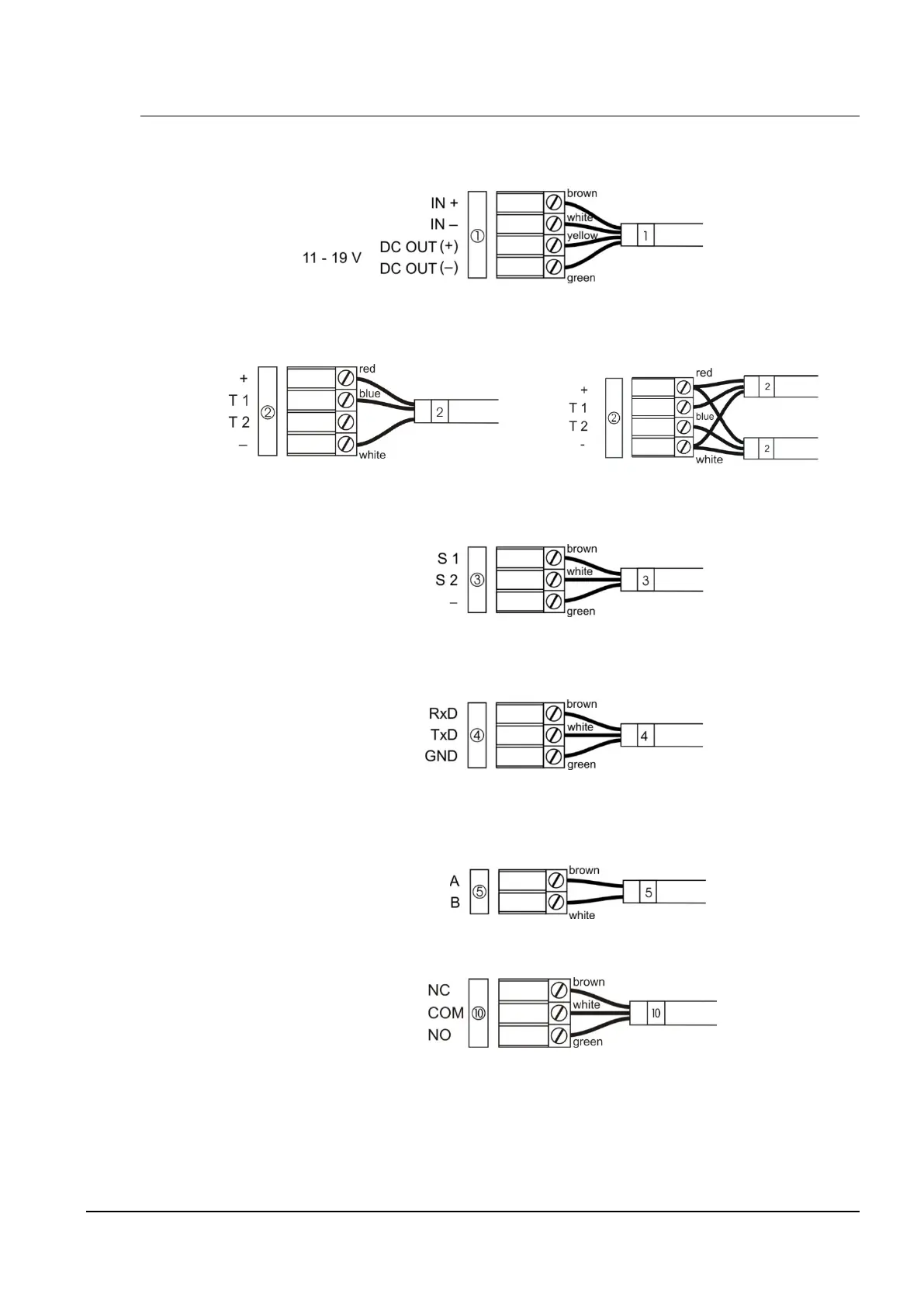

Installation LINES / DC OUT wire connection

TEMP wire connection – 1 or 2 thermometers

CTRL wire connection

RS-232 wire connection

RS-485 wire connection

RELAY connection
