Installation
0112-0127 B 57
2. Turn the quarter-turn fastener on the inside top cover and then
unfold the cover off the fluidics module.

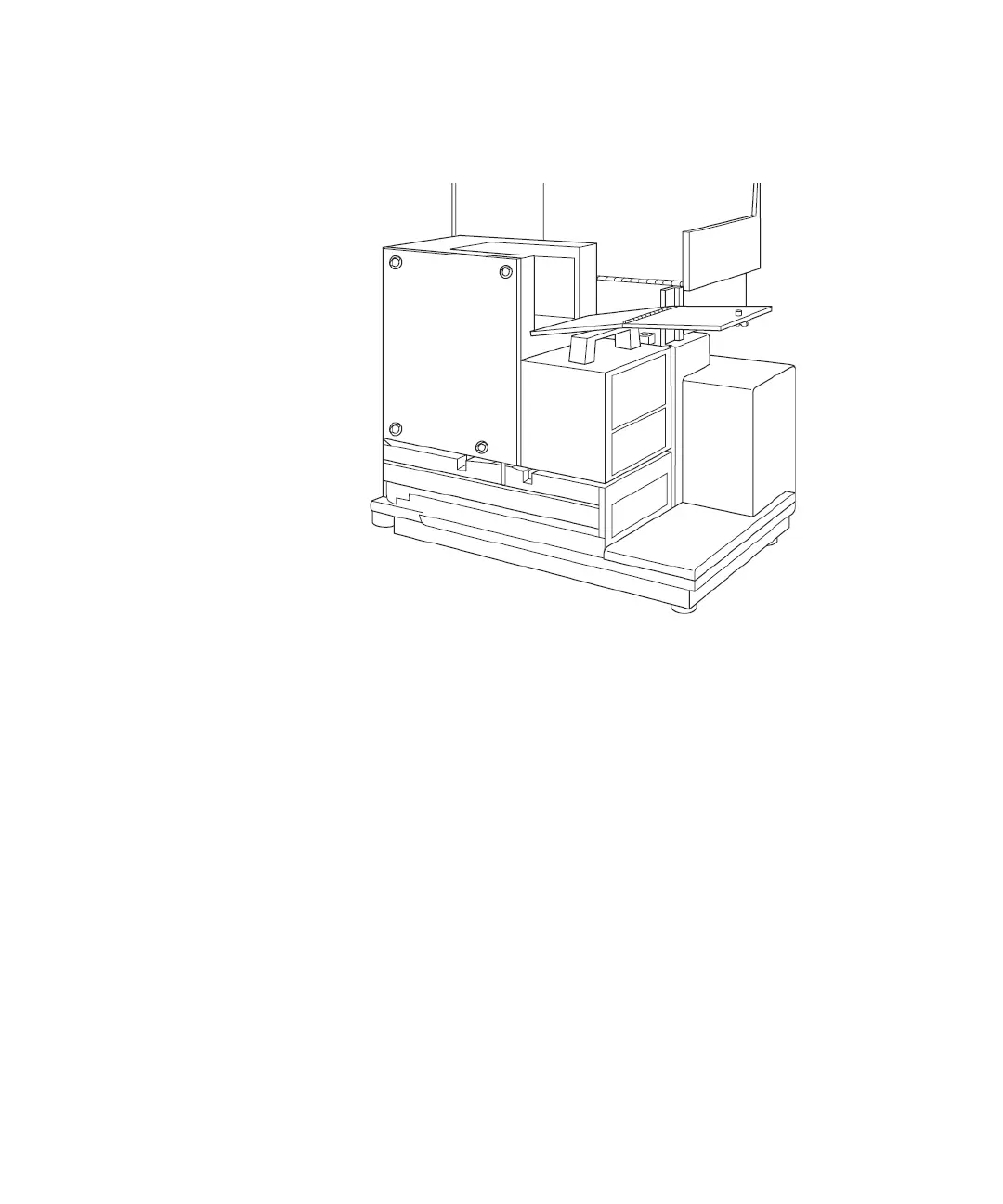

Figure 2-7: Opening the Inside Top Cover
