FlexStation 3 Benchtop Multi-Mode Microplate Reader User Guide
58 0112-0127 B
3. Hold the pipettor head in one hand and the round, black, 14-pin
connector in the other.
4. Move the pipettor head into its approximate position under the
z-stage plate and red mounting knob.
5. Maneuver the cable down toward the back of the cavity and
align the connector over the receptacle.
6. Press the connector in place and screw down the black outer
collar over the pins.

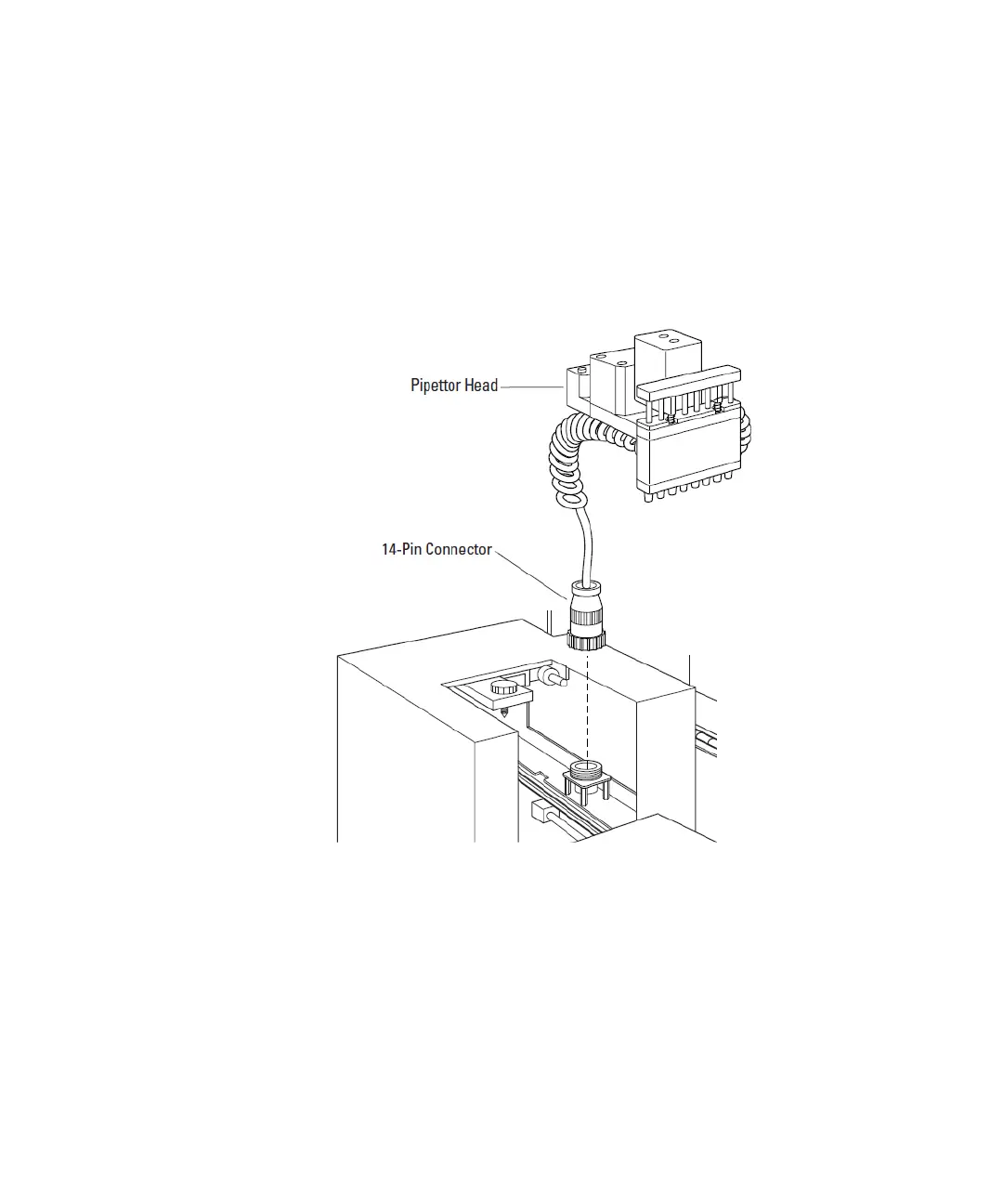

Figure 2-8: Securing Spiral Cord to Hook
FlexStation_manual.book Page 58 Tuesday, June 25, 2013 10:22 AM
