7. Press the first four loops of white spiral cord onto the coil hook in
the upper left corner of the top panel opening. This secures the
cable up out of the way of the pipettor head when it moves
about in the fluidics module during operation.

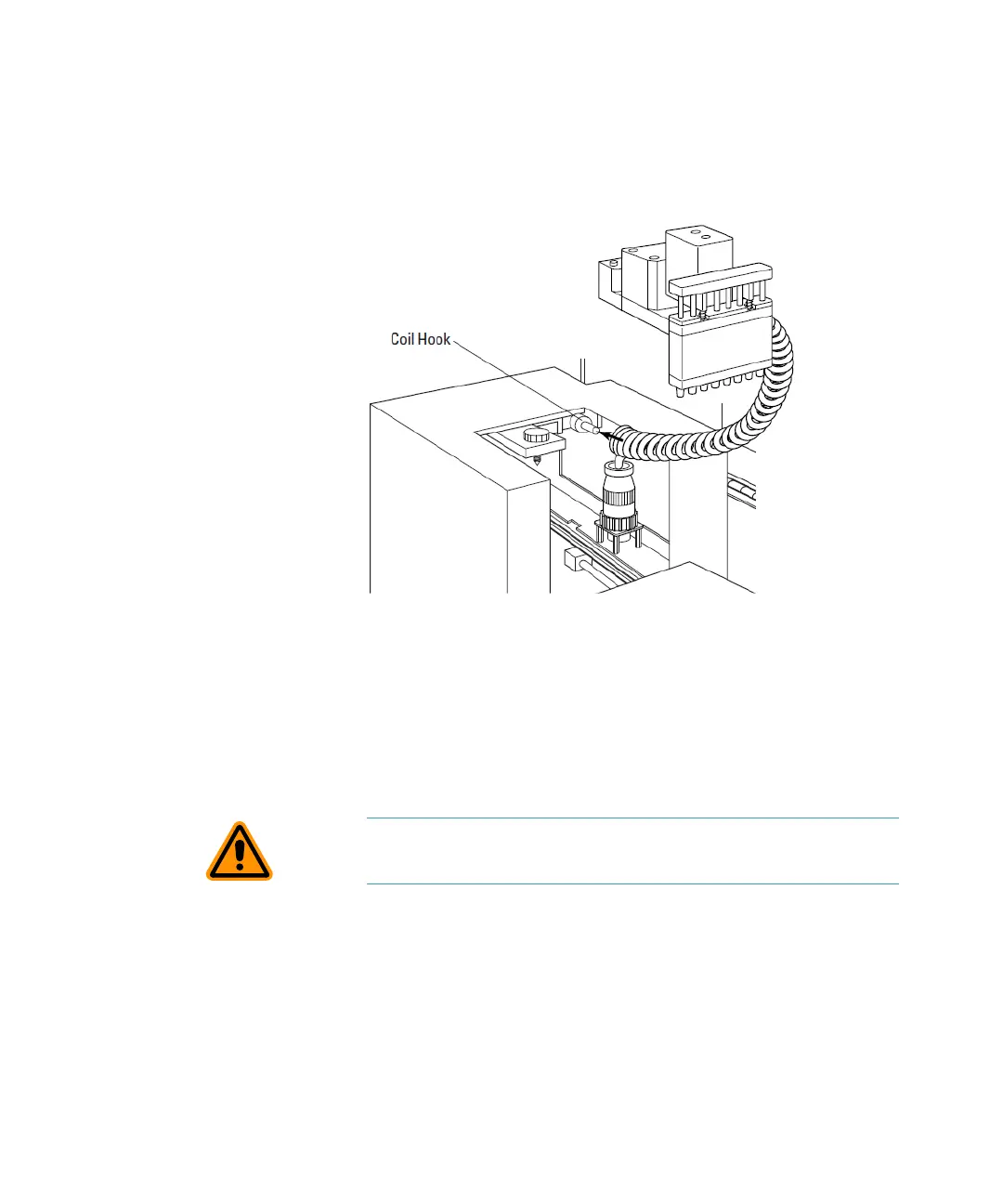

Figure 2-9: Positioning Pipettor Head
8. With one hand, pull up on the red knob.
9. With the other hand, align the metal plate at the back of the
pipettor head, with the screw hole and the two locating pins,
underneath the red knob.
10. Slide the plate up into place.
11. Screw down the red knob, securing the pipettor head so that it
hangs in place from the black bar.
CAUTION! Tighten the red knob (the pipettor retaining nut) as
firmly as possible.
