Defining Fields 3-21
Defining Constant Text Fields
A constant text field is a set of fixed characters that prints on all labels. Define each constant
text field separately. This field is not assigned a field number, but is counted as a field (keep this
in mind, as the printer allows a maximum of 1000 fields per format). The characters in this field
cannot be changed by batch data. Field options do not apply to constant text fields. Mark the
pivot point of your field. This varies depending on how your field is justified.
Syntax C,row,column,gap,font,hgt mag,wid mag,color,alignment,
char rot,field rot,"fixed char",sym set |
C1. C Constant Text Field.

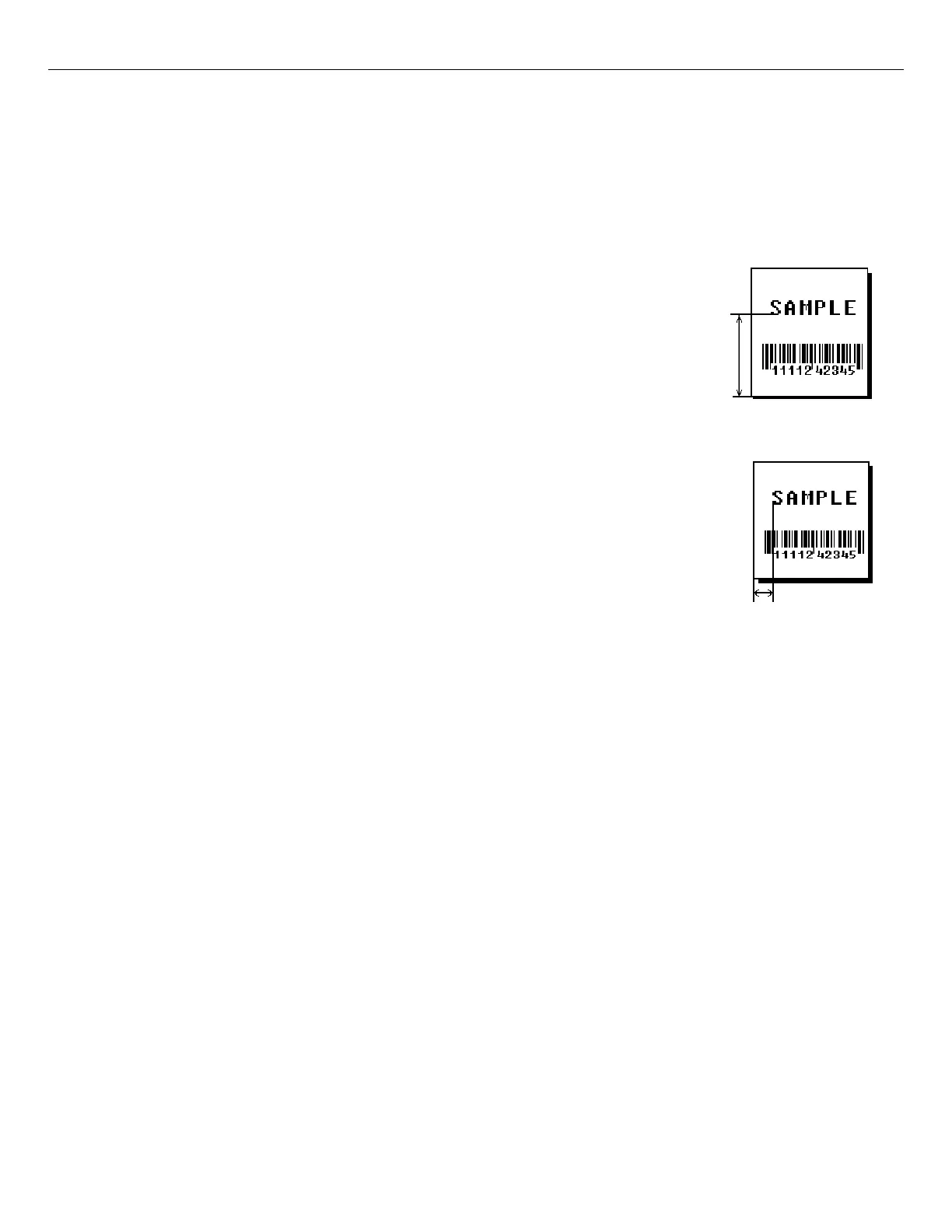

C2. row Row location – distance from the bottom of the
print area to the pivot point. 1 is the default.
For monospaced fonts, distance from bottom of
print area to the pivot point. For proportionally
spaced fonts, distance from bottom of print
area to baseline of characters in the field.
(Bottom exits the printer first.)
English 0 – 1599
Metric 0 – 4061
203 Dots 0 – 3246
300 Dots 0 – 3597
C3. column Column location - distance from the lower left
edge of the print area to the pivot point.
10 is the default.
English 0 – 409
Metric 0 – 1040
203 Dots 0 – 830
300 Dots 0 – 1227
C4. gap Number of dots between characters (203 dots per inch).
Range: 0 to 99. 0 is the default.
Any number other than 0 or the default number affects your field width.
Default spacing:
Standard 3 dots
Reduced 1 dot
Bold 3 dots
OCRA-like 3 dots
CG Triumvirate™ Typeface Bold varies with each letter
CG Triumvirate™ Typeface varies with each letter
C5. font Style of font. 1 is the default. Options:
1 Standard 10 CG Triumvirate™ Typeface Bold
2 Reduced 11 CG Triumvirate™ Typeface
3 Bold 15 7 pt. CG Triumvirate™ Typeface
4 OCRA-like 16 9 pt. CG Triumvirate™ Typeface
5 HR1 17 11 pt. CG Triumvirate™ Typeface
6 HR2 18 15 pt. CG Triumvirate™ Typeface
50 EFF Swiss Bold (TrueType® Scalable)
56 PaxarSymbols
Or a valid downloaded font selector number.
Fonts 5 and 6 are for numeric data only. The CG Triumvirate™
typefaces support only the ANSI and DOS Code Page 437 and 850
Symbol Sets. The scalable font does not support Code Page 1256
(Arabic). See Appendix C for more information.
