Defining Fields 3-25
Defining Line Fields
Use lines to form borders and mark out original prices. Define each line separately. This field is
not assigned a field number, but is counted as a field (keep this in mind, as the printer allows a
maximum of 1000 fields per format). You can define any line length and a thickness up to 99
dots, as long as the solid black print does not exceed 30 percent of any given square inch of the
label.
Line Types
You can create horizontal and vertical lines. There are two ways to define lines.
Segments You choose the starting point and ending point.
Vectors You choose the starting point, the angle, and the length of the line.

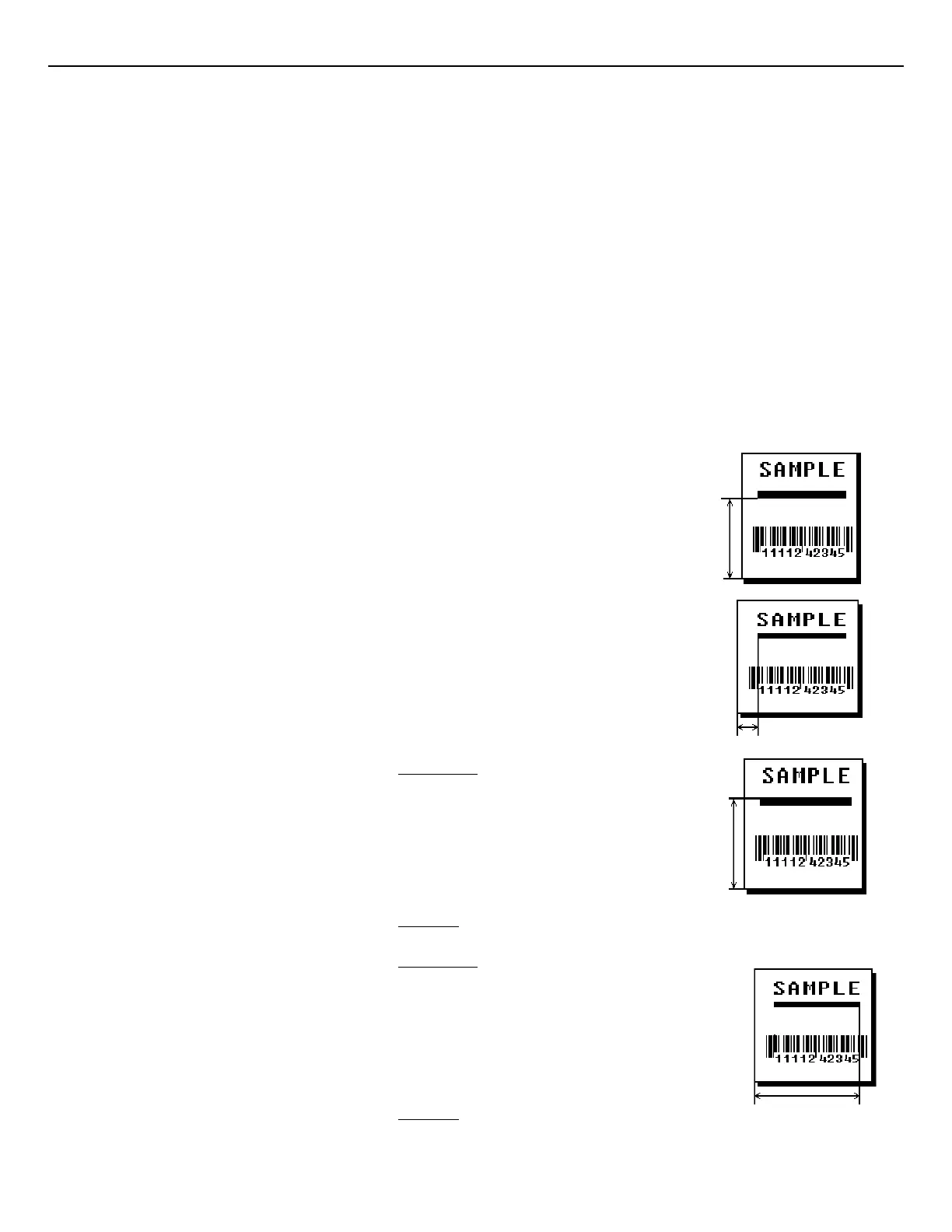

Syntax L,type,row,column,angle/end row,length/end col,thickness,
"pattern" |
L1. L Line Field.
L2. type Type of line. Only vertical and horizontal lines are supported. S is the
default. Options:
S Segment. You choose the starting point and ending point.
V Vector. You choose the starting point, angle, and length.
L3. row Row location - distance from bottom of print
area to the starting point. 10 is the default.
English 0 – 1599
Metric 0 – 4061
203 Dots 0 – 3246
300 Dots 0 – 3597
L4. column Column location - distance from left edge of
the print area to line origin. 10 is the default.
English 0 – 409
Metric 0 – 1040
203 Dots 0 – 830
300 Dots 0 – 1227
L5. Angle If Using Segments:
/end row Row location of ending point. Measure from
bottom of print area. On horizontal lines, this
value mustmatch item L3. 100 is the default.
English 0 – 1599
Metric 0 – 4061
203 Dots 0 – 3246
300 Dots 0 – 3597
If Using Vectors:
Angle of line. Options: 0, 90, 180, or 270. 0 is the default.
L6. length/ end If Using Segments:
col Column location of end point. Measure from left
edge of print area. On vertical lines, this value
must match parameter L4. 100 is the default.
English 0 – 409
Metric 0 – 1040
203 Dots 0 – 830
300 Dots 0 – 1227
If Using Vectors:
Length of the line in selected units. 10 is the default.
